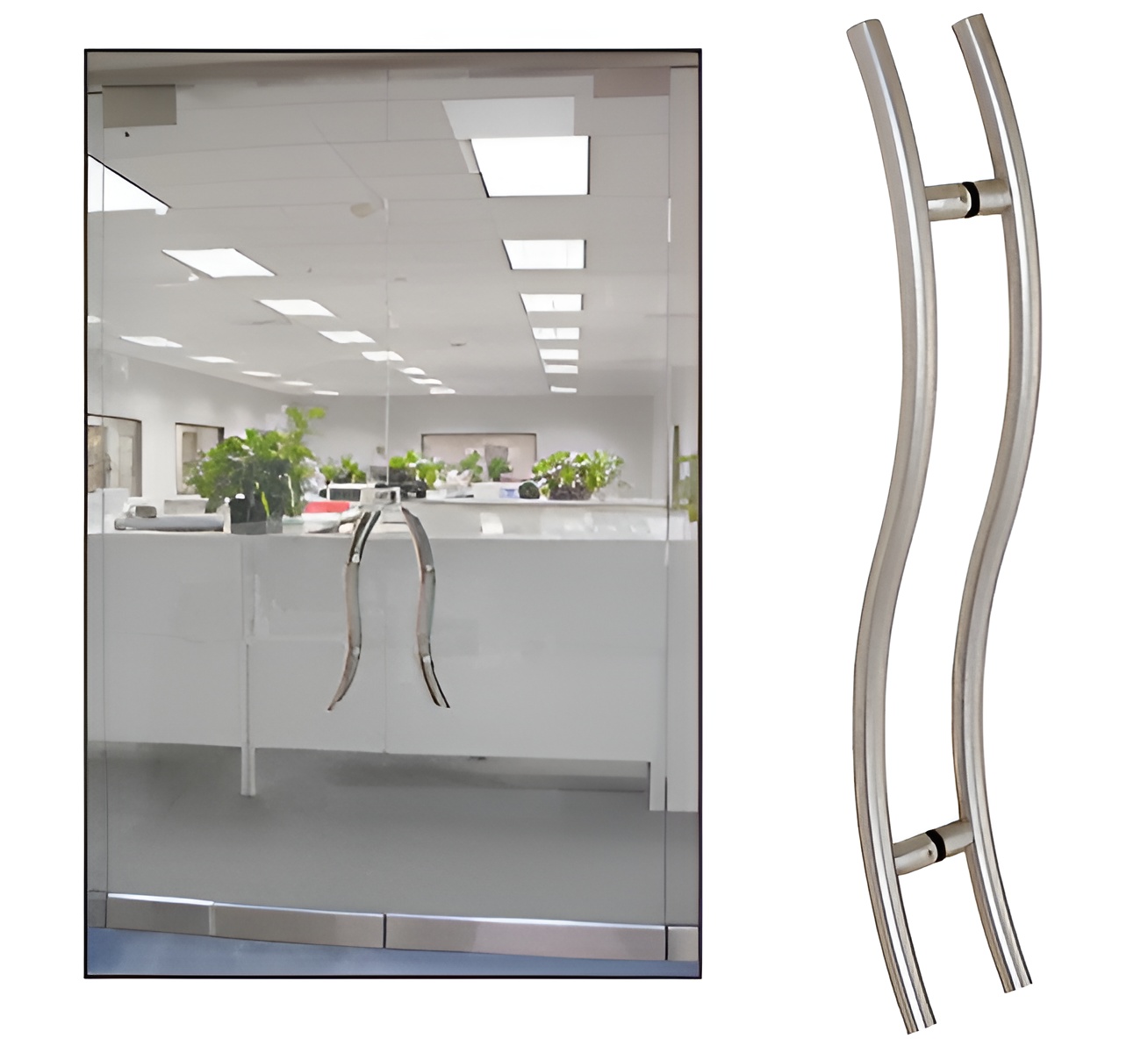

CRL 24SRPBS Brushed Stainless 24" Right-Handed Back-to-Back "S" Ladder PullC.R. Laurence 24SRPBS Brushed Stainless 24" Extra Length Right Handed "S" Ladder Style Back-to-Back Pull is a striking solution for modern glass doors. Designed specifically for 3/8" to 3/4" (10 to 19 mm) thick tempered glass, this pull handle combines functionality with a sleek aesthetic. Crafted from 1-1/4" (32 mm) diameter heavy wall 304 alloy stainless steel tubing, it promises durability and resistance to corrosion, making it ideal for high-traffic areas. Available in brushed stainless and polished finishes, the 24SRPBS is offered in three sizes ranging from 24" to 48" (610 mm to 1.22 m), catering to various architectural needs. Its back-to-back mounting system, facilitated by supplied through-bolts, allows for easy installation while ensuring the exposed set-screws remain on the interior side of the door for a clean look. Handed left and right, this pull ensures a seamless fit for double-door applications. Custom finishes and sizes are also available, allowing for tailored solutions to meet specific design requirements. Please reach out to the Technical Sales Department for additional customization options. Elevate your space with the C.R. Laurence 24SRPBS, where style meets practicality.
Brushed Stainless 24" Extra Length Right Handed "S" Ladder Style Back-to-Back Pull
- Three Sizes in Two Popular Finishes for 3/8" to 3/4" (10 to 19 mm) Glass
- Designer Left and Right Hand Models Available
- 1-1/4" (32 mm) Diameter Heavy Wall 304 Alloy Stainless Steel Tubing
- Custom Finishes and Sizes Available
CRL "S" Style Ladder Pull Handles are for back-to-back mounting with supplied through-bolts. They are intended for use on doors made from 3/8" to 3/4" (10 to 19 mm) thick tempered glass. Stock sizes range from 24" to 48" (610 mm to 1.22 m) overall height. Standard finishes are polished stainless and brushed stainless. The Pulls are handed left and right to ensure the exposed set-screws are always on the interior side of the door. Handing is determined from the exterior side looking in.
Custom sizes and finishes are available to meet architectural specifications. For additional information or to begin the custom design process, contact our Technical Sales Department.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction: 1-1/4" (32 mm) Diameter Stainless Steel Tubing
Glass Fabrication Required: Two 5/8" (16 mm) Diameter Holes
Product Warning:
This handle is "handed" and the opposite handed pull will be needed for pairs of doors. For single sided Ladder Pulls, please contact our Technical Sales Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 12 in. (305 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-To-Back
Overall Length: 24 in. (610 mm)
Shipping Limitations: None
