CRL 2606 3/8" Prismatic Glass DrillC.R. Laurence 3/8" Prismatic Glass Drill is the benchmark for excellence in glass drilling, specifically designed for the flat glass industry. Featuring a robust tungsten carbide tip, this drill allows for the creation of hundreds of high-quality holes without the need for re-sharpening, ensuring efficiency on the job. The precision-ground tip is engineered with a slight angle, enabling it to scratch the glass surface before drilling begins, thus enhancing performance. Designed for use with glass drilling machines such as the CRL2 and SDM4, or securely held electric drills, this drill should not be used with hand brace drills. To maintain optimal drilling conditions, it is essential to use a coolant like CRL DTC80, keeping the drill cool during operation. The recommended speed range of 400-600 RPM maximizes drilling efficiency. Safety is paramount when using this tool; always wear appropriate safety gear, including gloves and eye protection, and operate on a flat, horizontal surface. Additionally, ensure the use of a Ground Fault Circuit Interrupter when working with electric tools and coolant. With a shank diameter of 1/4" and a drill bit size of 3/8", the CRL Prismatic Glass Drill embodies reliability and precision for your glass drilling needs.

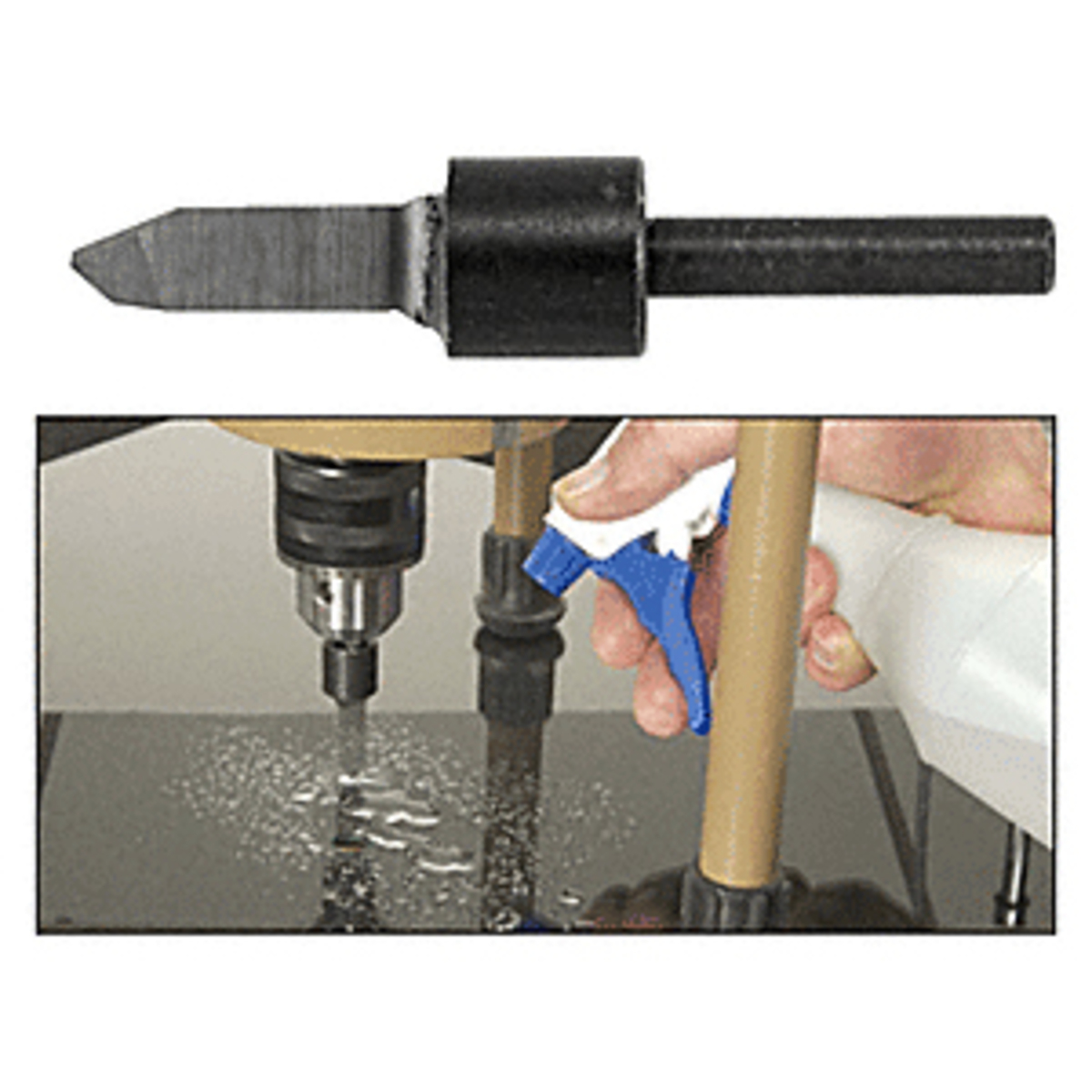

3/8" Prismatic Glass Drill
- Our Best Carbide Drill
- Precision Ground on Three Sides
- Available Sizes from 1/8" to 1/2" (3.2 to 12.7 mm)
This
CRL Prismatic Glass Drill is the standard of quality for glass drilling throughout the flat glass industry. The tungsten carbide tips mean you can produce hundreds of high quality holes without needing to re-sharpen the drill. The extra long tip assures long lasting, precision drilling.
Prismatic Drills should only be used in glass drilling machines such as the CRL2, SDM4, and 41, or in a securely held electric drill. We do not recommend you use them with hand brace drills. Be sure to keep the drill cool using a coolant, such as CRL DTC80 during drilling.
NOTE: Always wear the proper safety gear, including gloves and eye protection, when drilling glass. Work should be performed on a flat, horizontal surface. A Ground Fault Circuit Interrupter, such as CRL Cat. No. GF1, must be used when using any type of electric tool in conjunction with water or coolant. Failure to follow any of these precautions can result in operator injury.
Product Warning:
These drills should be run at 400-600 RPM to achieve maximum drilling performance. The tip of the CRL Prismatic Drill is not ground to a sharp point. There is a slight angle at the tip to allow the drill to first scratch the glass and begin the drilling of the hole.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Drill Bit Size: 3/8 in. (10 mm)
Material: Carbide
Shank Diameter: 1/4 in. (6 mm)
Shank Type: Reduced Round
Shipping Limitations: None
Speed: 400-500
Works On: CRL2 And SDM4
