CRL 28510G 285 Series Satin Anodized Single Slider Kit for 5/16" to 3/8" Glass - 118"

CRL 28510G 285 Series Satin Anodized Glass Mount Single Slider Kit is designed for those seeking a sophisticated and efficient sliding door solution for tempered glass panels ranging from 5/16" to 3/8" thick. This kit accommodates a maximum panel weight of 176 lbs (80 kg) and a width of up to 59" (1.5 m), ensuring versatility for various applications. The CRL 285 Series features a 118" (3000 mm) track length, allowing for smooth and seamless operation. The included Softbrake braking system enhances user experience by controlling the panel's movement direction. For optimal performance, a minimum sliding panel width of 25-1/2" (650 mm) is required for single-direction control, while a width of 39-3/8" (1000 mm) is necessary for bi-directional travel. This comprehensive kit includes all hardware needed for installation, ensuring ease of setup, though it is important to source the tempered glass and channel separately. Please note, laminated glass is not compatible with this system. For safety and compliance, it is advised to consult with a structural engineer regarding suitability for your specific application. Elevate your space with the elegance and functionality of C.R. Laurence’s CRL 285 Series Slider Kit.

285 Series Satin Anodized Glass Mount Single Slider Kit for 5/16" to 3/8" - 118"

• Softbrake Braking System Included
• Single Sliding Door Kit for 5/16" to 3/8" (8 to 10 mm) Tempered Glass
• Maximum Weight 176lbs (80KG), Maximum Panel Width 59" (1.5 m)

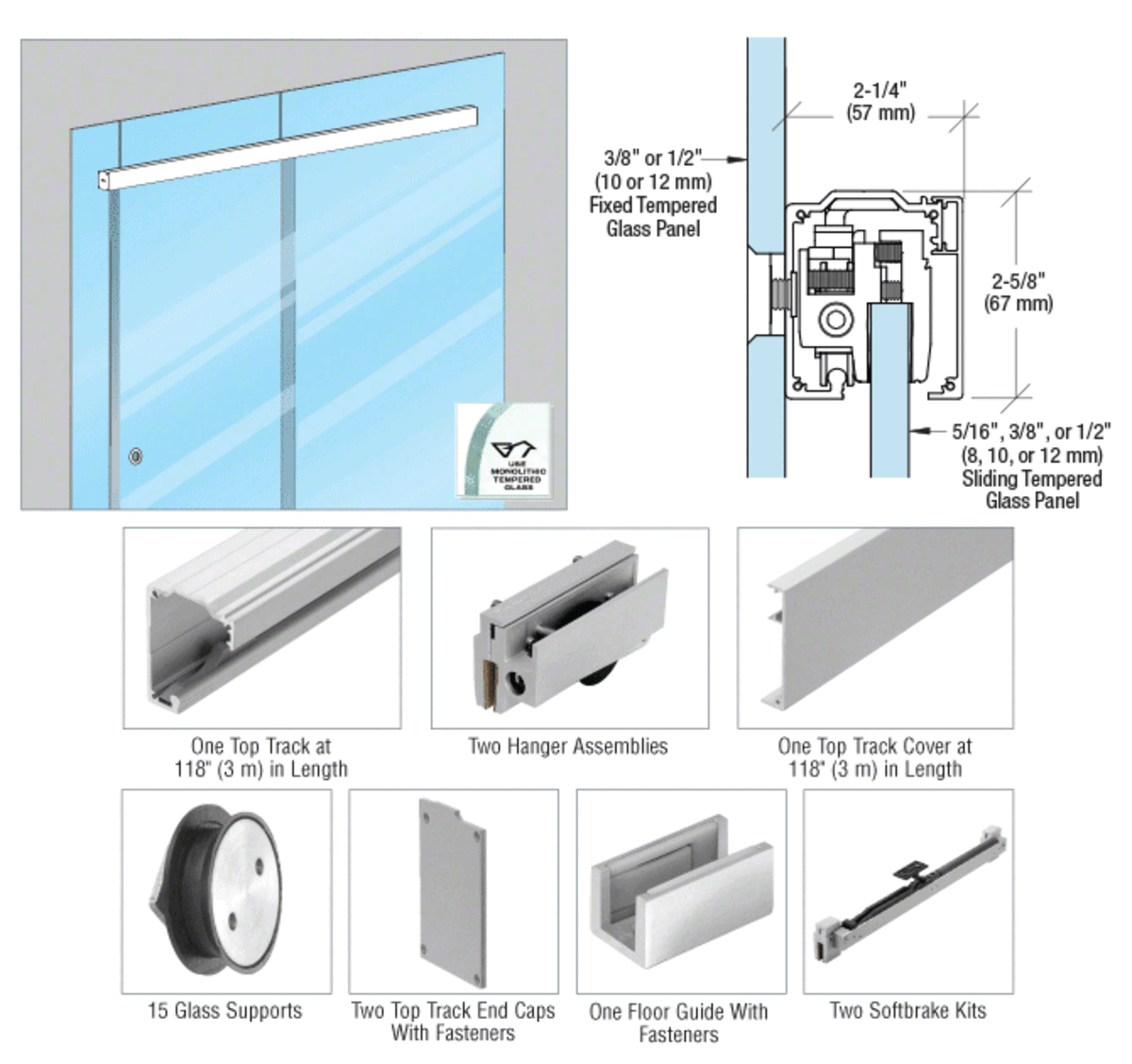

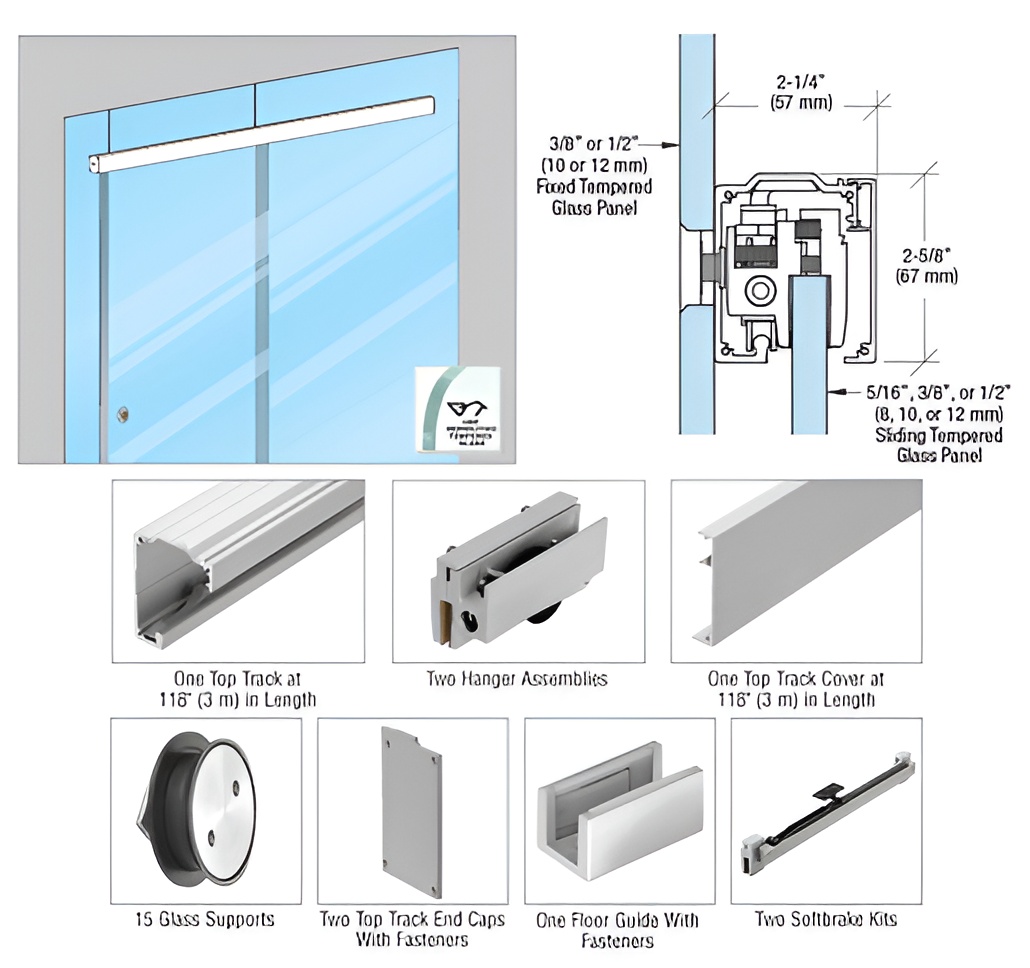

• Kits Contain All Necessary Hardware to Complete the Installation
• 118" (3000 mm) Track Length
• Use Monolithic Tempered Glass

Resources

• CRL2812 Installation Instructions
