CRL 28512 285 Series Satin Anodized Single Slider Kit for 3/8" 1/2" Glass

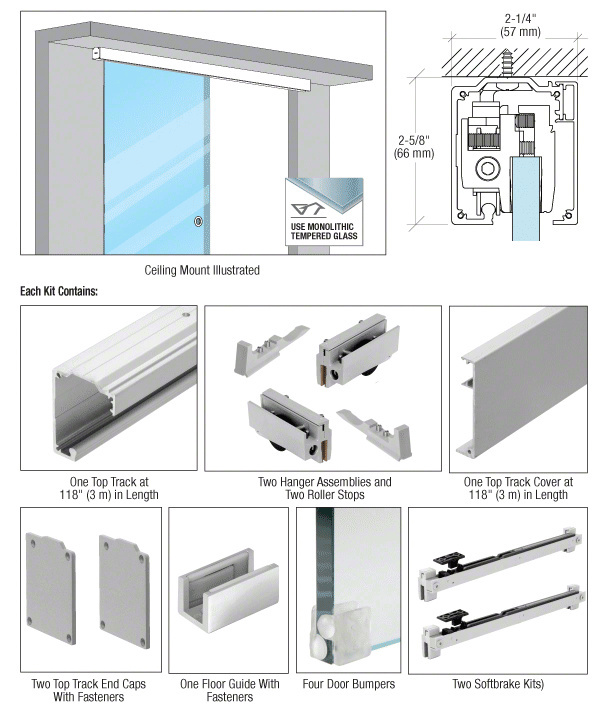

CRL 28512 285 Series Satin Anodized Single Slider Kit for 3/8" and 1/2" Tempered Glass is designed for seamless integration in single door applications, providing a robust solution for modern spaces. This kit accommodates glass thicknesses of 1/2" (12 mm) and can support a maximum weight of 176 lbs (80 kg) with a generous panel width of up to 59" (1.5 m). The package includes all necessary hardware for installation, ensuring a hassle-free setup. The 118" (2997 mm) track length allows for smooth operation, and the inclusion of one "Softbrake" for each direction of travel enhances user control, making it ideal for both residential and commercial environments. For optimal performance, the minimum sliding panel width required is 25-3/16" (640 mm) for unidirectional control and 40-3/16" (1020 mm) for bidirectional control. Please note that laminated glass should not be used; this kit is intended for monolithic tempered glass only. As with any structural installation, consulting a qualified structural engineer is essential to ensure compliance with local, state, and federal regulations. Elevate your space with the durability and elegance of the CRL 285 Series Slider Kit, where functionality meets modern design.

285 Series Satin Anodized Single Slider Kit for 3/8" and 1/2" Tempered Glass

• For 1/2" (12 mm) Glass Thickness
• Maximum Weight 176lbs (80KG), Maximum Panel Width 59" (1.5 m)
• Kits Contain All Necessary Hardware to Complete the Installation
• 118" (2997mm) Track Length

Resources

• CRL280 CRL285 Series Ceiling Mount System CAD Drawings.dwg
• CRL280 CRL285 Series Ceiling Mount System CAD Drawings.pdf
• CRL280 CRL285 Series Wall Mount System CAD Drawings.dwg
• CRL280 CRL285 Series Wall Mount System CAD Drawings.pdf
• CRL2812 Installation Instructions
