CRL 28512G 285 Series Satin Anodized Glass Mount Single Slider Kit for 1/2" Glass

CRL 28512G 285 Series Satin Anodized Glass Mount Single Slider Kit for 1/2" - 118" is the ideal solution for creating sleek and functional sliding door applications. Designed for use with 1/2" (12 mm) tempered glass, this kit accommodates a maximum panel weight of 176 lbs (80 kg) and a maximum width of 59" (1.5 m), ensuring durability and versatility for various settings. The kit includes all necessary hardware for installation, making it convenient for professionals and knowledgeable homeowners alike. With a generous 118" (3000 mm) track length, the system can be tailored to fit a variety of door sizes. The innovative Softbrake braking system enhances the user experience by providing smooth and controlled sliding, while minimum sliding panel widths of 25-1/2" (650 mm) and 39-3/8" (1000 mm) ensure effective control in one or both directions of travel. It’s important to note that laminated glass should not be used with this system. As with any architectural solution, consulting a structural engineer is recommended to ensure suitability for specific applications and adherence to local regulations. Elevate your interior spaces with the exceptional design and performance of the CRL 285 Series Slider Kit.

285 Series Satin Anodized Glass Mount Single Slider Kit for 1/2" - 118"

• Softbrake Braking System Included
• Single Sliding Door Kit for 1/2" (12 mm) Tempered Glass
• Maximum Weight 176lbs (80KG), Maximum Panel Width 59" (1.5 m)

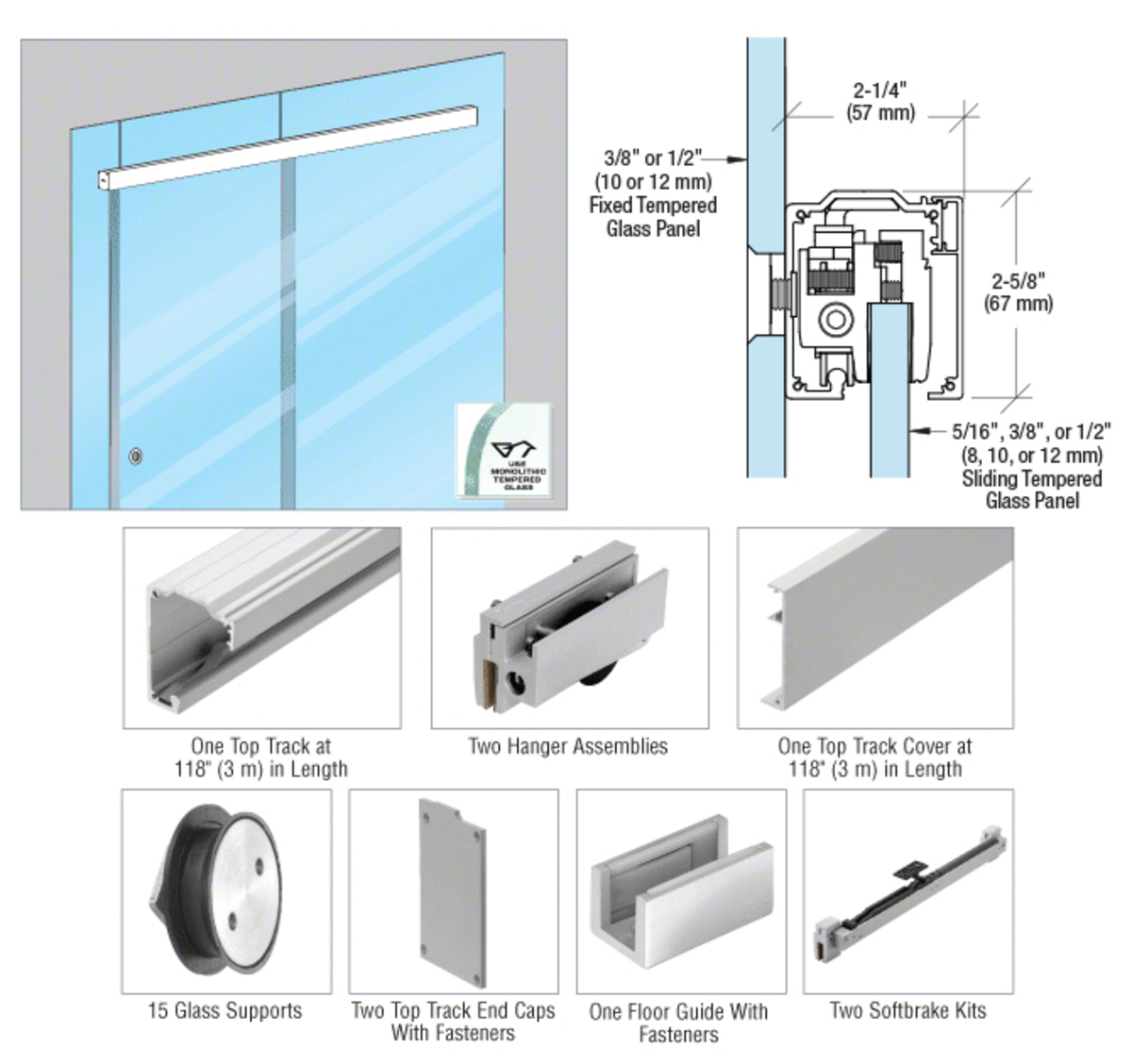

• Kits Contain All Necessary Hardware to Complete the Installation
• 118" (3000 mm) Track Length

Resources

• CRL280 CRL285 Series Ceiling Mount System CAD Drawings.dwg
• CRL280 CRL285 Series Ceiling Mount System CAD Drawings.pdf
• CRL280 CRL285 Series Wall Mount System CAD Drawings.dwg
• CRL280 CRL285 Series Wall Mount System CAD Drawings.pdf
