CRL 2DK Glass Drilling Starter KitCRL 2DK Glass Drilling Starter Kit provides everything you need to start drilling holes in glass up to 3/4" (19 mm) thick, making it an ideal choice for glass fabrication at an affordable price. This comprehensive starter set includes the reliable CRL2 Glass Drilling Machine, which features a powerful variable speed motor and a heavy-duty 3/8" (10 mm) chuck for optimal performance. The micro-depth adjustment feature ensures precise drilling, while the non-skid rubber feet provide stability during operation. Included in the kit are five popular EDD Series Diamond Drills-1/4", 1/2", 3/4", 1", and 2"-crafted from sturdy solid steel to enable clean and efficient hole drilling. The machine easily accommodates drills up to 6" (152 mm) in diameter. To ensure safe drilling, simply prepare a 50:1 ratio mix of water and the included DTC80QT Diamond Tool Coolant, and use the RR65 Suction Drilling Ring to keep your work area clean. Safety is paramount; always wear proper gear and use a Ground Fault Circuit Interrupter when working with electric tools and water. With a 90-day limited manufacturer warranty, the CRL 2DK Glass Drilling Starter Kit is a reliable investment for professionals and DIY enthusiasts alike.
Glass Drilling Starter Kit
- Drill Your Own Holes and Save Fabrication Costs
- Starter Set Includes Our Reliable Tripod Glass Drilling Machine and Five of the Most Popular Diameters of Diamond Drills
- It's a Truly Affordable Start-Up System for Glass Fabrication
Our Glass Drilling Starter Set has everything you need to begin drilling holes in glass up to 3/4" (19 mm) thick. The
CRL Glass Drilling Starter Kit features a powerful variable speed motor, a heavy-duty 3/8" (10 mm) chuck, a micro-depth adjustment feature, and non-skid rubber feet. It accepts drills up to 6" (152 mm) in diameter.
CRL stocks a complete range of EDD Series Diamond Drills in diameters from 1/8" to 6" (3.2 to 152 mm). Their sturdy solid steel construction allows quick hole drilling with clean break-outs. This set contains five of our most called for diameters: 1/4", 1/2", 3/4", 1", and 2".
To start drilling simply prepare a 50:1 ratio mix of water and our DTC80QT Diamond Tool Coolant and pour the solution into the RR65 Suction Drilling Ring over the position of the intended hole. Turn on the machine and lower the drill onto the glass, occasionally lifting the drill to allow coolant back into the cut until the drill completes the hole. It’s a very simple and safe method for drilling glass and mirror.
NOTE: For our customers in Australia and Europe we offer a Starter Kit with EDD Series Diamond Drills in these Metric sizes: 6, 8, 10, 16, and 60 mm. The Drilling Machine is the same as our CRL2, only in a 240 Volt model. Specify Cat. No. AU3DK.

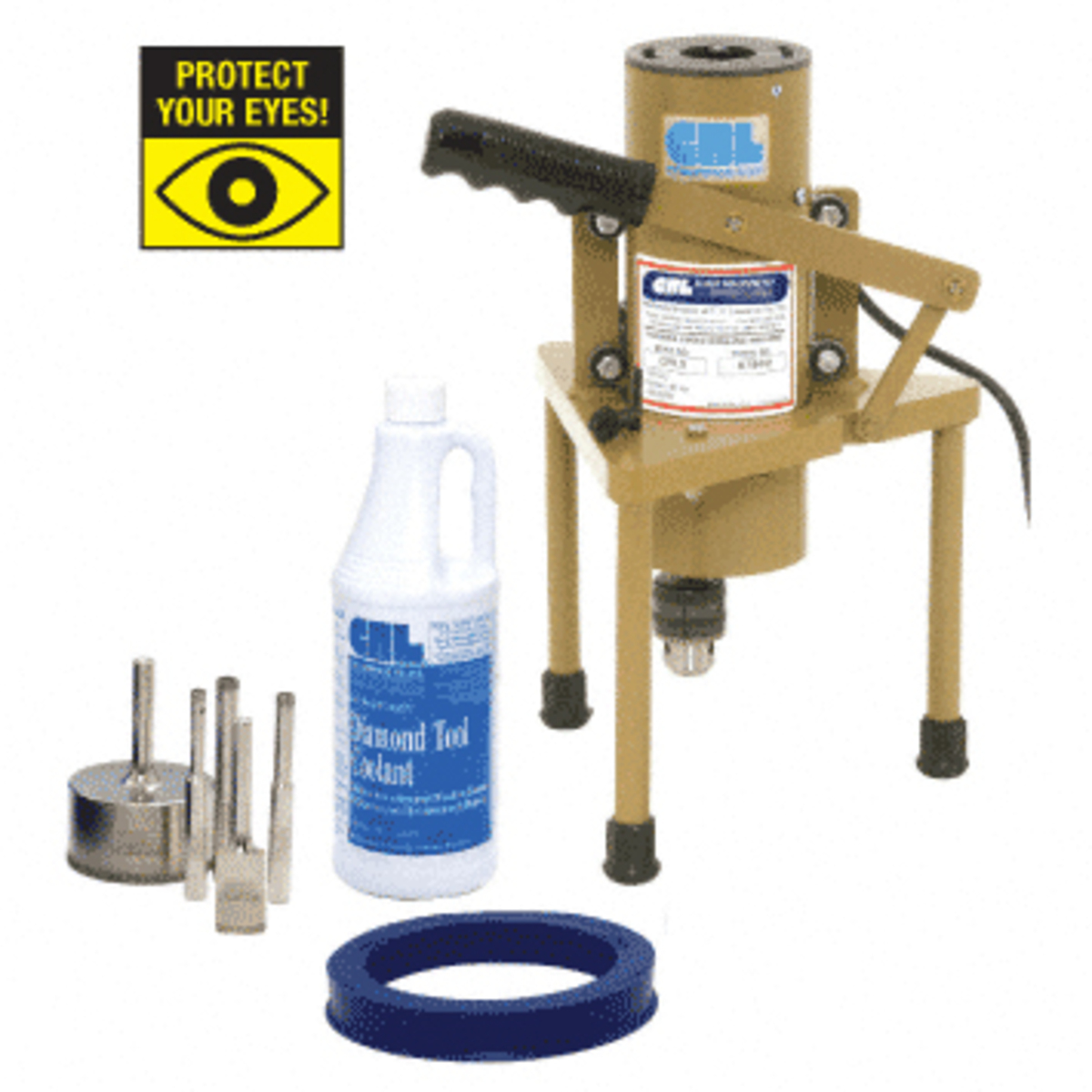

STARTER SET INCLUDES:
1 each CRL2 Glass Drilling Machine
1 quart DTC80QT Diamond Tool Coolant Concentrate
1 each RR65 Suction Drilling Ring
and 1 each of our EDD Series Diamond Drills in diameters of 1/4", 1/2", 3/4", 1", and 2"
Product Warning:
Always wear the proper safety gear including gloves and eye protection when drilling glass. Work should be performed on a flat, horizontal surface. A Ground Fault Circuit Interrupter must be used when using any type of electric tool in conjunction with water or coolant. Failure to follow any of these precautions can result in operator injury. 90 day limited manufacture warranty.
NOTE: Motors for the CRL Drill Machine are not all the same use different types of brushes. Catalog number CRL2BRUSHES type are for motors using brushes with a black plastic holder surrounding a brass tube on three sides. Customers with CRL2 motors having brushes with holders made of all brass should order catalog number 869734. They will receive the brush (carbon piece) only, not the entire holder with brush.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Shipping Limitations: None
