CRL 3109GP Gold-Plated Double Glass Shelf Support

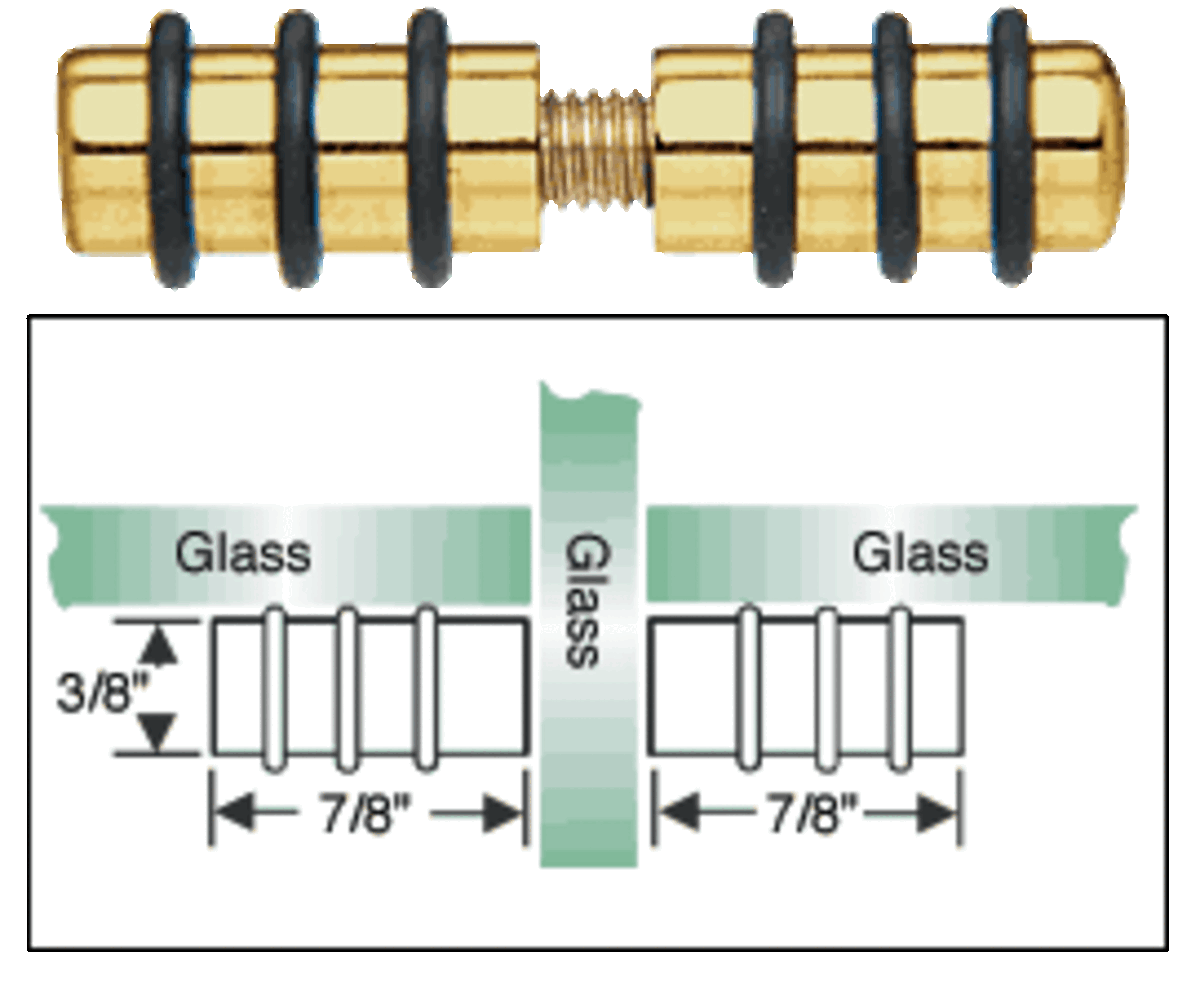

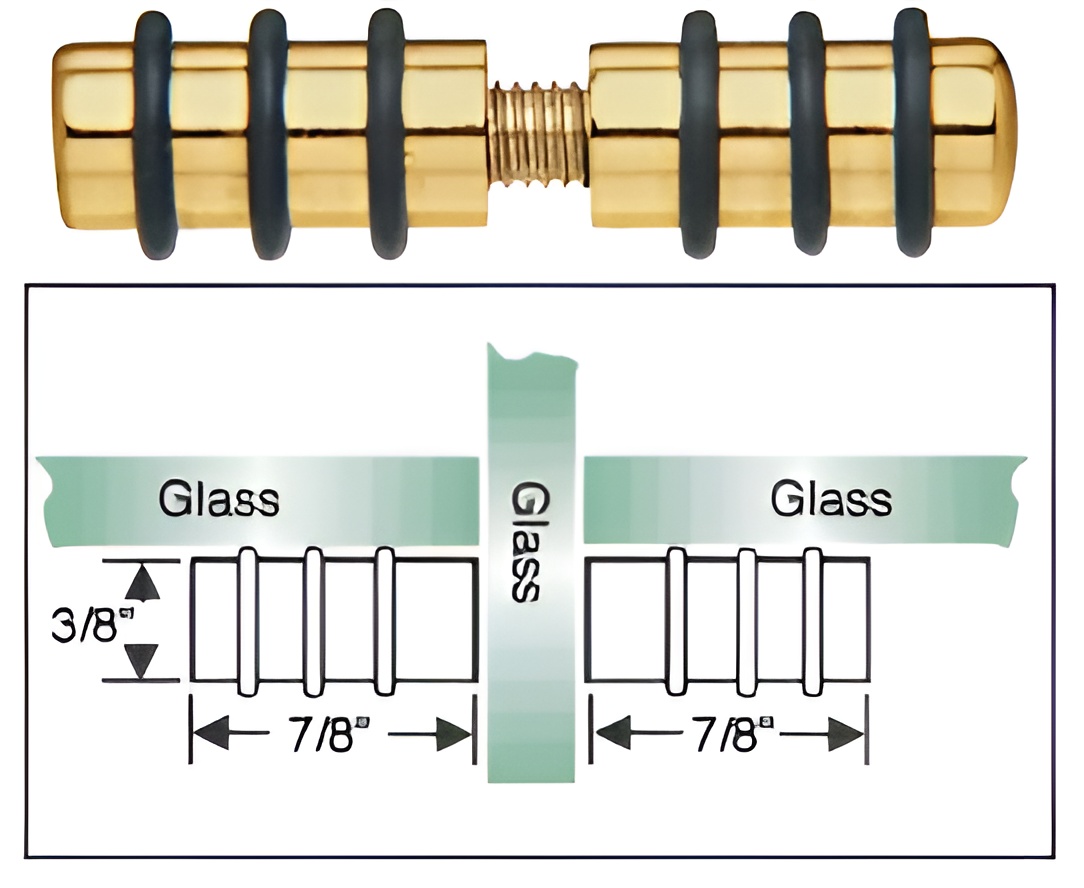

C.R. Laurence 3109GP Gold Plated Double Glass Shelf Support is expertly designed for supporting adjacent tempered glass shelves, enhancing both functionality and aesthetics in any cabinet or display setting. This product is ideal for applications that require side-by-side glass, acrylic, or wood shelves, providing a robust and elegant solution. The shelf support features two 7/8" (22 mm) supports interconnected by a sturdy threaded stud through a central panel. Each support is equipped with rubber cushion rings, ensuring that shelves remain securely in place while preventing any slippage. It accommodates glass substrate thicknesses ranging from 3/16" to 1/4" (5 to 6 mm), making it versatile for various installations. Notably, the included 1/4"-20 threaded rod can be replaced with longer rods from the AS14 Series to suit thicker non-glass substrates. Designed for a weight limit of 110 lbs. (50 kg) per set of four, this support is both reliable and stylish. The gold-plated finish adds a touch of luxury, making it suitable for high-end applications. For installation, substrates must have a 5/16" (8 mm) diameter thru-hole to accommodate the threaded stud, ensuring a secure fit.

Gold Plated Double Glass Shelf Support

• For Supporting Adjacent Tempered Glass Shelves with Center Support Panel
• Available in Three Finishes
• Rubber Rings Cushion Glass

This CRL Double Glass Shelf Support is ideal for use in cabinets or displays that have side-by-side glass, acrylic or wood shelves. Two 7/8" (22 mm) supports are connected by a threaded stud through the center panel. Rubber cushion rings keep shelves firmly in place and prevent slippage. Works with glass substrate thicknesses from 3/16" to 1/4" (5 to 6 mm). The included 1/4"-20 threaded rod may be replaced with longer threaded rods (AS14 Series) for thicker non-glass substrates.
