CRL 311095PLC313 Dark Bronze Jackson 10 Series Left Hand Reverse Bevel Panic Exit DeviceC.R. Laurence 311095PLC313 Dark Bronze Jackson 10 Series Left Hand Reverse Bevel Paddle Rim Panic Exit Device is engineered to provide reliable safety and accessibility for various door types. This exit device accommodates 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, making it a versatile choice for any commercial or institutional setting. Featuring concealed fastening, this device enhances security while maintaining a sleek appearance. The paddle operation is available with either a crossbar or engraved "Push" option on the active side, offering ease of use in emergency situations. The contoured field-sizeable 48" (1.22 m) long crossbar ensures a perfect fit, while the dual dogging feature allows for convenient access control with an outside cylinder. Crafted from high-tensile strength aluminum and equipped with stainless and hardened plated steel mechanical components, this exit device offers durability and long-lasting performance. It is compliant with ANSI/BHMA 156.3 standards and UL Listed for peace of mind. With a dark bronze finish, the C.R. Laurence 10 Series Exit Device not only meets life safety requirements but also complements the aesthetic of any modern storefront or facility.

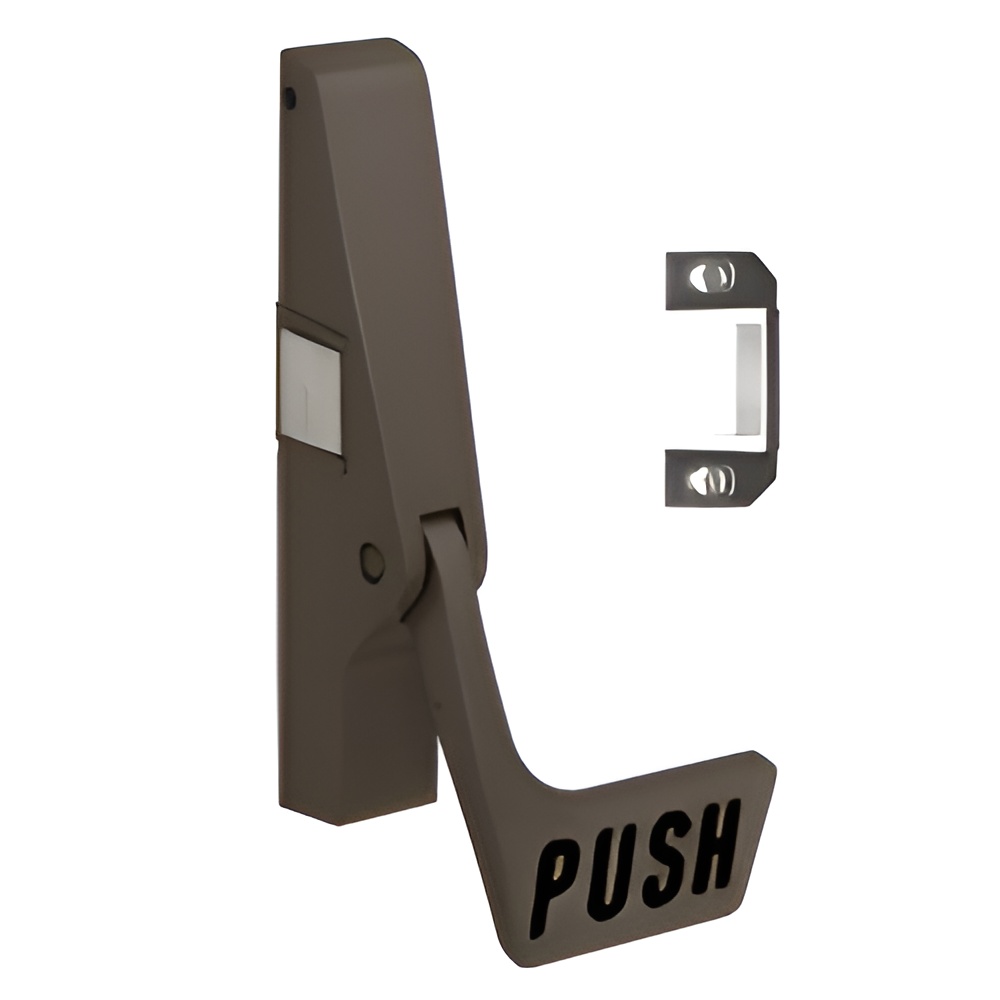

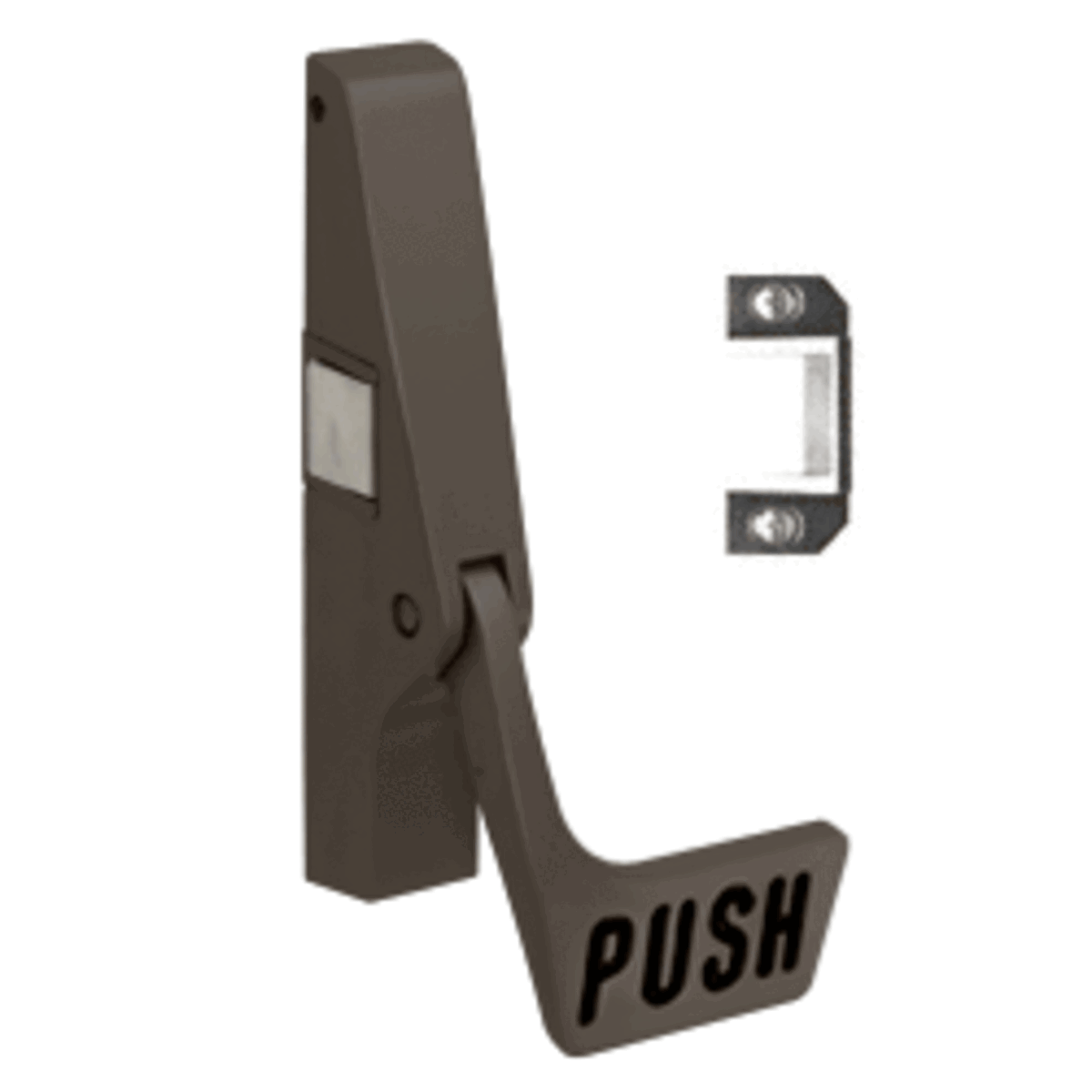

Dark Bronze Jackson 10 Series Left Hand Reverse Bevel Paddle Rim Panic Exit Device
- Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Concealed Fastening for Added Security
- Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This paddle is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements.
SPECIFICATIONS:
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature – By Outside Cylinder - by Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1095 Rim Device
Requires Rim Cylinder for Keyed Entry
Cylinder Mounting Pad Not Required
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Brand: Jackson
Certification: ANSI/BHMA 156.3
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness: 1-3/4 in. (44.5 mm)
Finish/ Color:: Dark Bronze
Handing: Left Hand Reverse Bevel (LHR)
Includes: Mounting Hardware
Material - Housing: Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Minimum Stile Width: 1-3/4 in. (44.5 mm)
Model: 1095 Paddle
Paddle Push Width: 3-3/8 in. (85.7 mm)
Panic Bar Projection: 4-5/8 in. (117.5 mm)
Panic Dogging: Screw Driver
Panic Head Base Width: 1-1/4 in. (31.8 mm)
Panic Head Height: 7-5/16 in. (185.7 mm)
Panic Type: Rim (Paddle)
Recommended Door Type: Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
Replacement Parts: 30115, 301117313, 301409, DL911SCKDDU, DL911SCKADU
Series: 10
Shipping Limitations: None
UL Listed: Yes
