CRL 311095PLC628 Satin Aluminum Jackson 10 Series Left Hand Reverse Bevel Panic Exit DeviceC.R. Laurence 311095PLC628 Satin Aluminum Jackson 10 Series Left Hand Reverse Bevel Paddle Rim Panic Exit Device is an essential addition to any commercial or residential setting requiring reliable safety and security. This device is expertly designed for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. Its concealed fastening system enhances security while providing a clean aesthetic. With the option for either a crossbar or engraved "Push" paddle operation on the active side, this exit device combines functionality with ease of use. The 48" (1.22 m) long crossbar can be contoured and field-sized to fit various door configurations. Its dual dogging feature, accessible from the outside cylinder and panic housing, ensures reliable performance under pressure. Constructed with high tensile strength aluminum, stainless and hardened plated steel mechanical components, and sintered steel latches and strikes, the 311095PLC628 is built for durability. This UL Listed device meets ANSI/BHMA 156.3 standards, ensuring compliance with safety regulations. Ideal for both new installations and replacements, it includes all necessary mounting hardware, making it a versatile choice for any project.

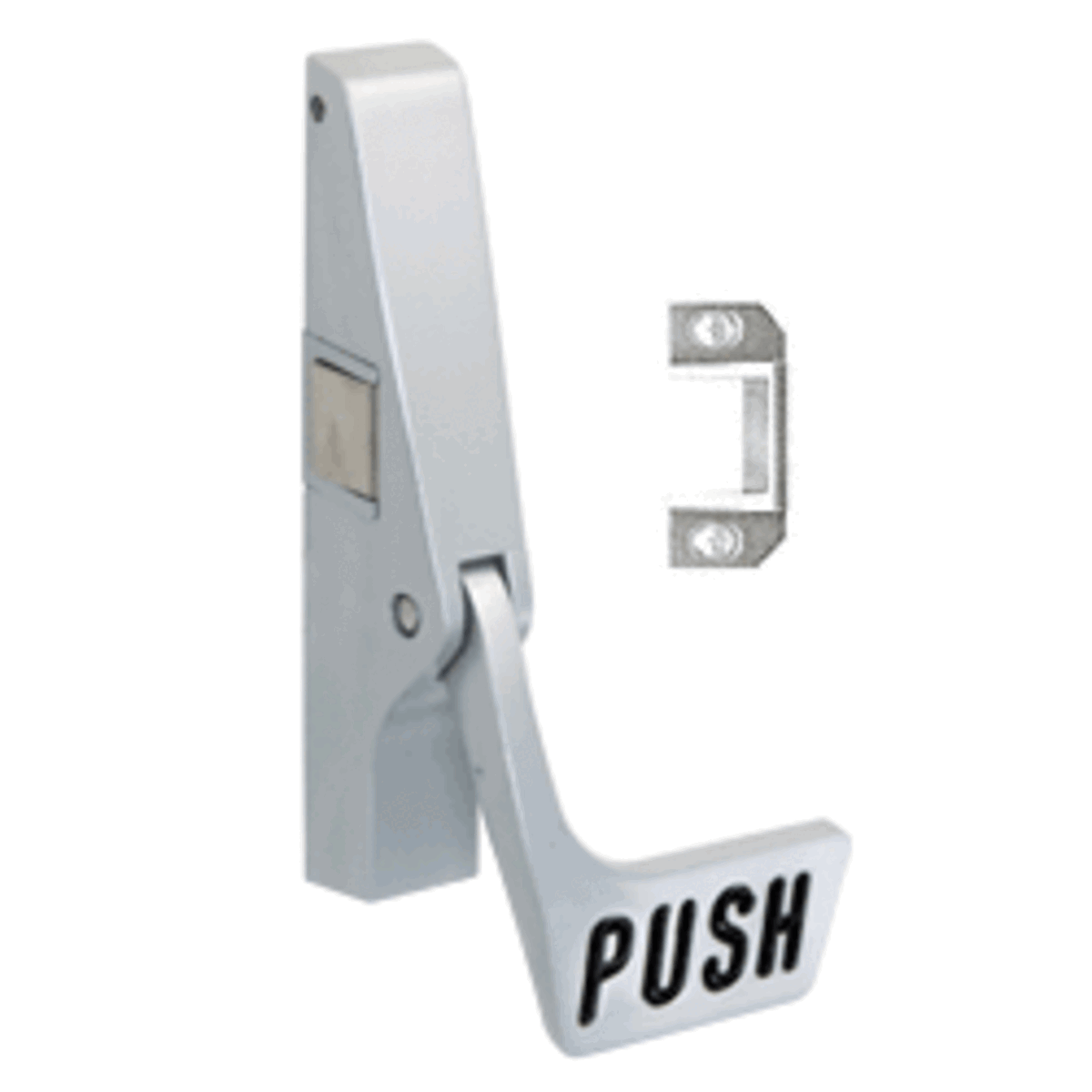

Satin Aluminum Jackson 10 Series Left Hand Reverse Bevel Paddle Rim Panic Exit Device
- Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Concealed Fastening for Added Security
- Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This paddle is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements.
SPECIFICATIONS:
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature – By Outside Cylinder - By Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1095 Rim Device
Requires Rim Cylinder for Keyed Entry
Cylinder Mounting Pad Not Required
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Brand: Jackson
Certification: ANSI/BHMA 156.3
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness: 1-3/4 in. (44.5 mm)
Finish/ Color:: Aluminum
Handing: Left Hand Reverse Bevel (LHR)
Includes: Mounting Hardware
Material - Housing: Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Minimum Stile Width: 1-3/4 in. (44.5 mm)
Model: 1095 Paddle
Paddle Push Width: 3-3/8 in. (85.7 mm)
Panic Bar Projection: 4-5/8 in. (117.5 mm)
Panic Dogging: Screw Driver
Panic Head Base Width: 1-1/4 in. (31.8 mm)
Panic Head Height: 7-5/16 in. (185.7 mm)
Panic Type: Rim (Paddle)
Recommended Door Type: Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
Replacement Parts: 30115, 301117628, 301409, DL911SCKDA, DL911SCKAA
Series: 10
Shipping Limitations: None
UL Listed: Yes
