CRL 311095PLS628 Satin Aluminum Jackson 10 Series Left Hand Reverse Bevel Panic Exit DeviceCRL 311095PLS628 Satin Aluminum Jackson 10 Series Left Hand Reverse Bevel Paddle Rim Panic Exit Device is a top-tier choice for those seeking reliable safety solutions for their commercial or residential spaces. Designed specifically for 1-3/4" (44.5 mm) narrow, medium, and wide stile doors made of aluminum, wood, or hollow metal, this exit device ensures ease of use without sacrificing security. The device features concealed fastening, enhancing its security profile while maintaining a sleek appearance. With its handed, non-reversible design, it guarantees proper alignment and functionality. The paddle push width of 3-3/8 in. (85.7 mm) allows for effortless operation, while the panic bar projection of 4-5/8 in. (117.5 mm) meets vital life safety requirements. Constructed from durable aluminum housing, sintered steel latch and strike, as well as stainless and hardened plated steel mechanical components, the Jackson 10 Series Exit Device promises longevity and reliable performance. It includes mounting hardware for straightforward installation and is UL listed for added peace of mind. This exit device is an excellent solution for commercial storefronts, ensuring that safety is never compromised while delivering a maintenance-free operation for years to come.

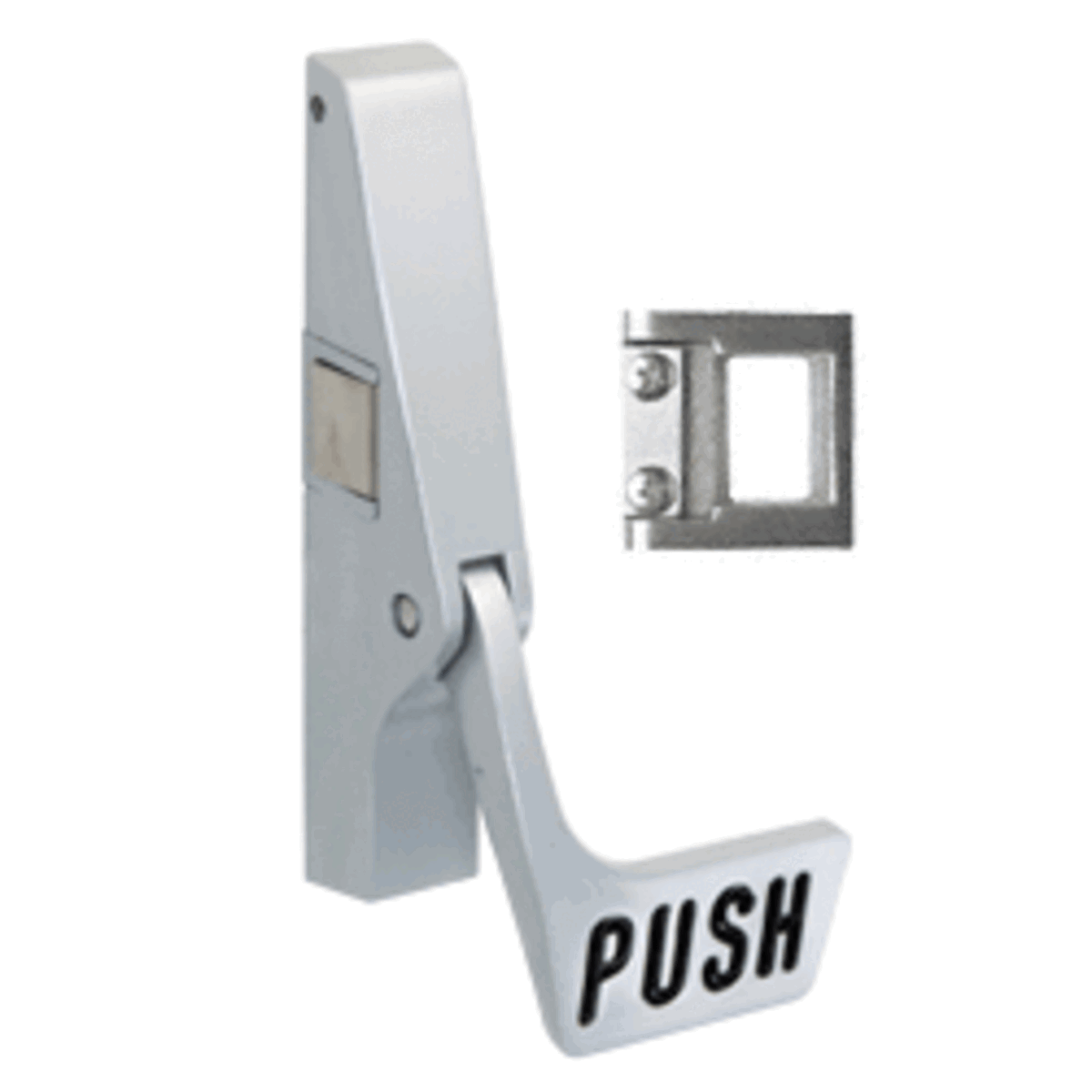

Satin Aluminum Jackson 10 Series Left Hand Reverse Bevel Paddle Rim Panic Exit Device
- Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Concealed Fastening for Added Security
- Handed, Non-Reversible
CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This paddle is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements. S Type Strike included.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Brand: Jackson
Certification: ANSI/BHMA 156.3
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness: 1-3/4 in. (44.5 mm)
Finish/ Color:: Aluminum
Handing: Left Hand Reverse Bevel (LHR)
Includes: Mounting Hardware
Material - Housing: Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Minimum Stile Width: 1-3/4 in. (44.5 mm)
Model: 1095 Paddle
Paddle Push Width: 3-3/8 in. (85.7 mm)
Panic Bar Projection: 4-5/8 in. (117.5 mm)
Panic Dogging: Screw Driver
Panic Head Base Width: 1-1/4 in. (31.8 mm)
Panic Head Height: 7-5/16 in. (185.7 mm)
Panic Type: Rim (Paddle)
Recommended Door Type: Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
Replacement Parts: 30115, 301117628, 301409, DL911SCKDA, DL911SCKAA
Series: 10
Shipping Limitations: None
UL Listed: Yes
