CRL 311095PRC313 Dark Bronze Jackson 10 Series Right Hand Reverse Bevel Panic Exit DeviceC.R. Laurence 311095PRC313 Dark Bronze Jackson 10 Series Right Hand Reverse Bevel Paddle Rim Panic Exit Device is the benchmark for aluminum storefront hardware, offering a seamless blend of functionality and security. Engineered for 1-3/4" (44.5 mm) narrow, medium, and wide stile doors, this exit device ensures reliable performance across aluminum, wood, and hollow metal door types. The design features concealed fastening for enhanced security, while the paddle operation on the active side is available in both crossbar and engraved "Push" options. The contoured, field-sizeable 48" (1.22 m) long crossbar allows for easy installation tailored to your specific door dimensions. With a dual dogging feature activated by an outside cylinder and dogging pins on the panic housing, this device guarantees quick and efficient egress during emergencies. Constructed with high tensile strength aluminum and mechanical components made from stainless and hardened plated steel, the durability of the 311095PRC313 is assured. Additionally, wear points are insulated by nylon sleeves and rollers to minimize maintenance needs. This UL listed device meets ANSI/BHMA 156.3 standards, making it an ideal solution for life safety requirements in commercial settings. Elevate your building's safety with this robust and stylish exit device.

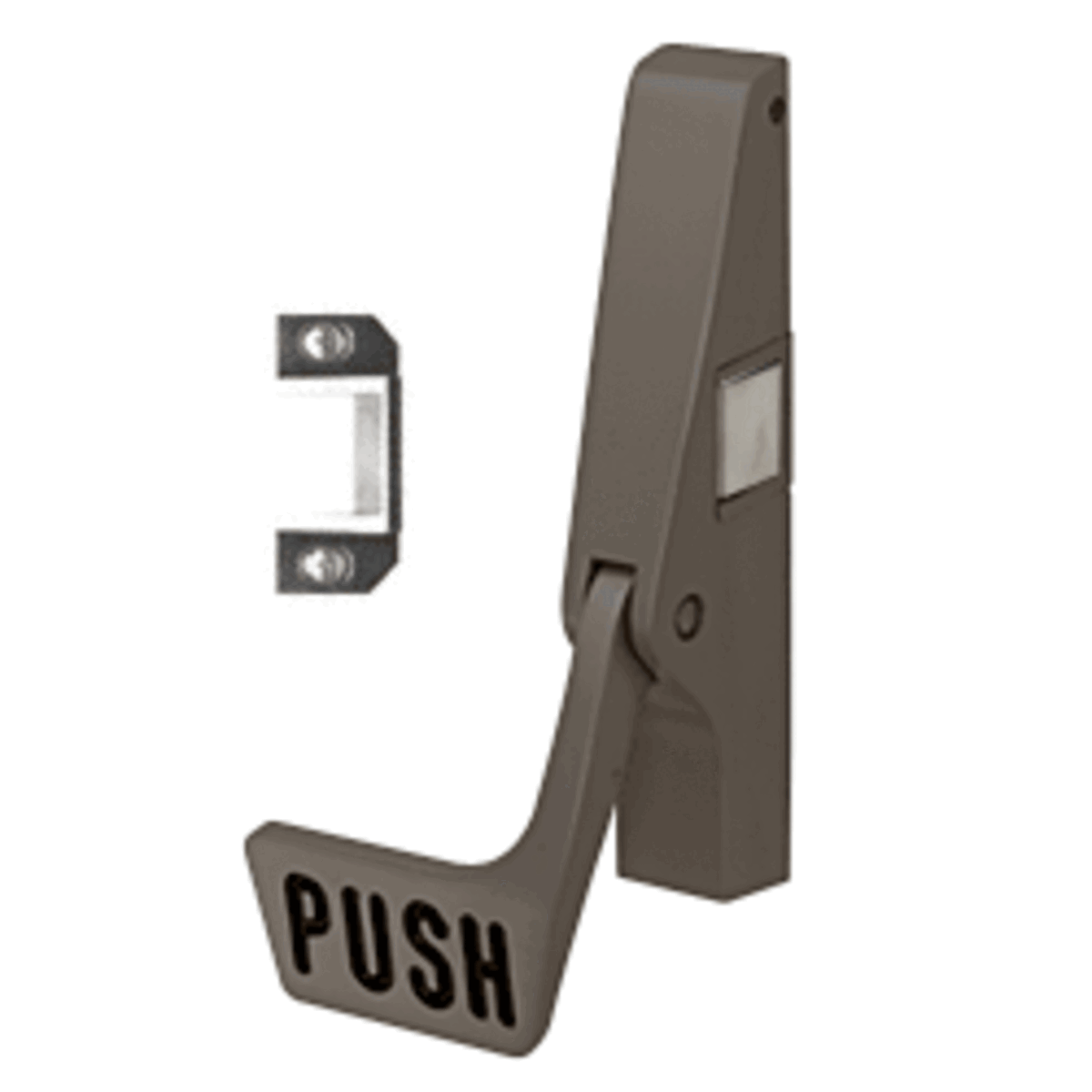

Dark Bronze Jackson 10 Series Right Hand Reverse Bevel Paddle Rim Panic Exit Device
- Designed for Use with 1-3/4" (44.5 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Concealed Fastening for Added Security
- Available With Crossbar or Engraved "Push" Paddle Operation on Active Side
CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This paddle is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The 10 Series Exit Device is the perfect solution when considering a reliable maintenance free means to satisfy life safety requirements.
SPECIFICATIONS:
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature – By Outside Cylinder - By Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1095 Rim Device
Requires Rim Cylinder for Keyed Entry
Cylinder Mounting Pad Not Required
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Brand: Jackson
Certification: ANSI/BHMA 156.3
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness: 1-3/4 in. (44.5 mm)
Finish/ Color:: Dark Bronze
Handing: Right Hand Reverse Bevel (RHR)
Includes: Mounting Hardware
Material - Housing: Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Minimum Stile Width: 1-3/4 in. (44.5 mm)
Model: 1095 Paddle
Paddle Push Width: 3-3/8 in. (85.7 mm)
Panic Bar Projection: 4-5/8 in. (117.5 mm)
Panic Dogging: Screw Driver
Panic Head Base Width: 1-1/4 in. (31.8 mm)
Panic Head Height: 7-5/16 in. (185.7 mm)
Panic Type: Rim (Paddle)
Recommended Door Type: Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
Replacement Parts: 30115, 301117313, 301409, DL911SCKDDU, DL911SCKADU
Series: 10
Shipping Limitations: None
UL Listed: Yes
