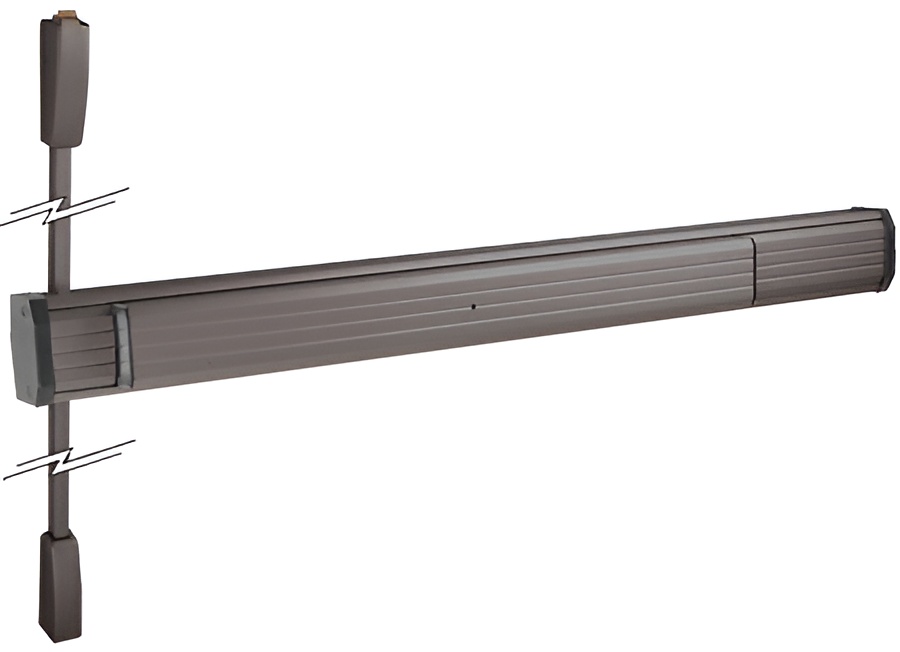

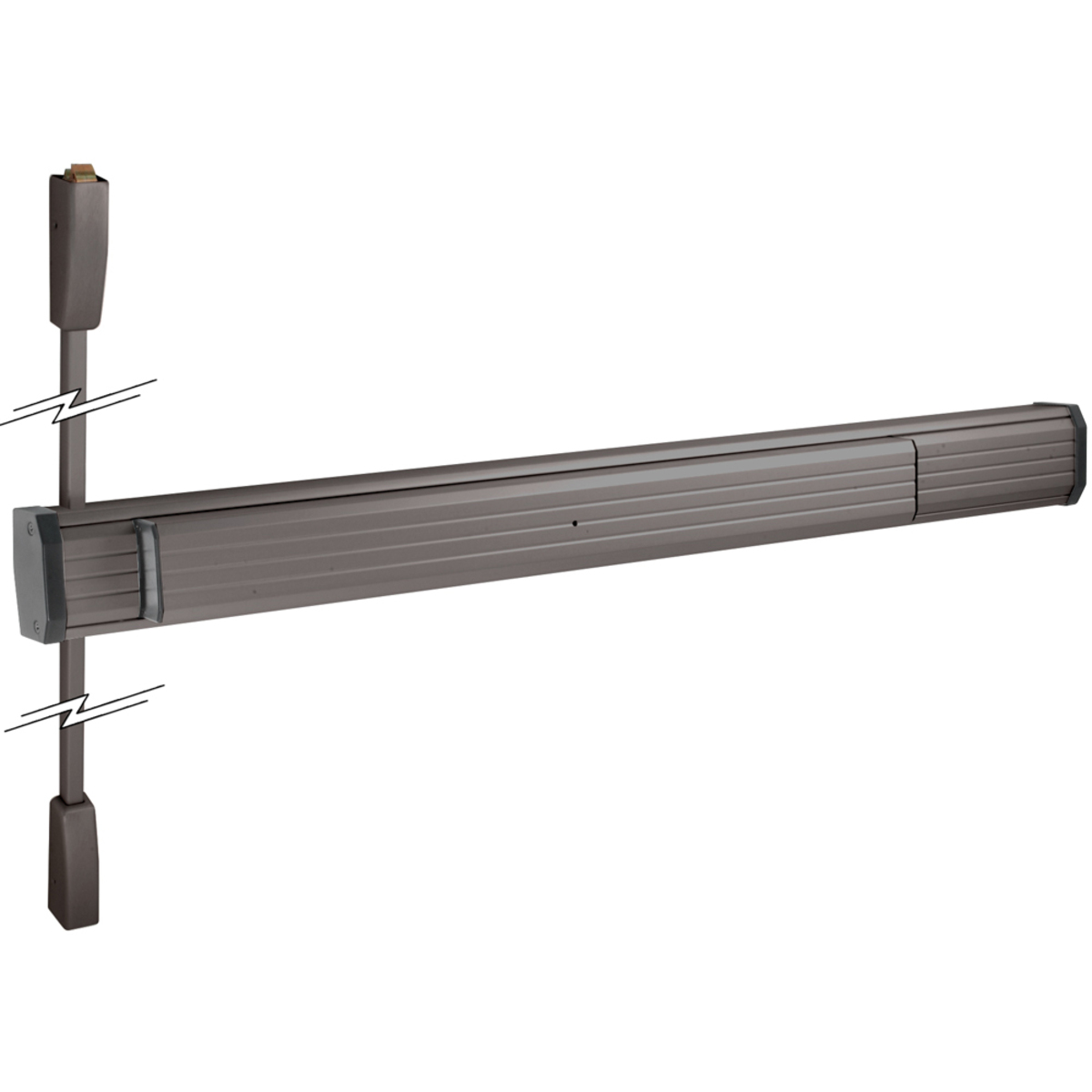

CRL 31127538313 Dark Bronze 36"x96" Jackson 1275 Vertical Rod Panic Exit DeviceC.R. Laurence 31127538313 Dark Bronze 36" x 96" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device combines durability with modern design, making it an ideal choice for various door types. Engineered for use with 1-3/4" narrow, medium, and wide stile aluminum, wood, or hollow metal doors, this exit device stands out with its soft-touch push-pad that offers smooth action and instant release of the locking mechanism with minimal pressure. This versatile device can be customized in the field for door sizing, fitting heights of up to 84" (2.13 m) while extensions for taller applications are available. The robust construction features an extruded aluminum base and push-pad, with mechanical components made of stainless and hardened plated steel, ensuring long-lasting performance. The 1275 model includes standard hex key dogging, allowing for easy operation, while its sleek profile projects only 2-7/8" (73 mm) from the door surface, maintaining a clean aesthetic. With concealed mounting hardware, this exit device not only meets ANSI/BHMA 156.3 certification standards but also provides a reliable solution for emergency egress. Active outside trim and additional panic accessories are available to enhance functionality.
Dark Bronze 36" x 96" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device
- Designed for Use with 1-3/4" Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Soft-Touch Smooth Action Push-Pad
- Can Be Cut to Size
- Standard Hex Key Dogging
This
CRL Jackson® Exit Device blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.
The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.
SPECIFICATIONS:
1275 Surface Vertical Rod Device
Stocked in Both 36" and 48" (914 mm and 1.22 m)
Standard Door Heights 84" (2.13 m) and 96" (2.44 m) – Field Sizeable
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
Product Warning:
If this item is ordered with the "Cylinder Dogging" feature, the manufacturer does not provide the cylinder, only the prep. It requires a 1-1/8" (28.6 mm) length mortise cylinder, which is not stocked by CRL, but can be special ordered.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Brand: Jackson
Certification: ANSI/BHMA 156.3
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Door Thickness: 1-3/4 in. (44.5 mm)
Door Width: 36 in. (914.4 mm)
Finish/ Color:: Dark Bronze
Handing: Non Handed
Includes: Mounting Hardware
Material - End Cap: Aluminum
Material - Housing: High Tensile Strength Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Minimum Stile Width: 1-3/4 in. (44.5 mm)
Model: 1275
Panic Bar Base Height: 3-3/16 in. (81 mm)
Panic Bar Projection: 2-7/8 in. (73 mm)
Panic Bar Width Net: 34-1/2 in. (876.3 mm)
Panic Dogging: Standard Hex Key Dogging
Panic Type: Surface Vertical Rod
Push Pad Width: 24 in. (609.6 mm)
Recommended Door Type: Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
Replacement Parts: 302861
Series: 1200
Shipping Limitations: None
Similar: 3327AE03313, 3327AE04313, 360L613
UL Listed: Yes
