CRL 31127538628 Satin Aluminum 36"x96" Jackson 1275 Panic Exit Device Vertical RodC.R. Laurence 31127538628 Satin Aluminum 36" x 96" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device offers a perfect blend of reliability and modern aesthetics. Engineered for compatibility with 1-3/4" narrow, medium, and wide stile aluminum, wood, or hollow metal doors, this exit device ensures a secure and efficient egress solution. Featuring a soft-touch smooth action push-pad, users can easily activate the locking mechanism with minimal effort. The device is designed for doors up to 96" in height and can be trimmed to accommodate various sizes, making it a versatile choice for many installations. It includes standard hex key dogging for added convenience and can be customized with keyed cylinder dogging if needed. Constructed from durable materials, the base and push-pad are made from extruded aluminum, while mechanical components are crafted from stainless and hardened plated steel, ensuring longevity and resilience. Additionally, the sleek design ensures that mounting hardware remains concealed, providing a clean appearance. With a panic bar projection of only 2-7/8" and an overall width of 34-1/2", this exit device not only meets safety standards but also enhances the aesthetic of any door system. The CRL Jackson 1275 is UL listed, ensuring compliance with stringent safety regulations.

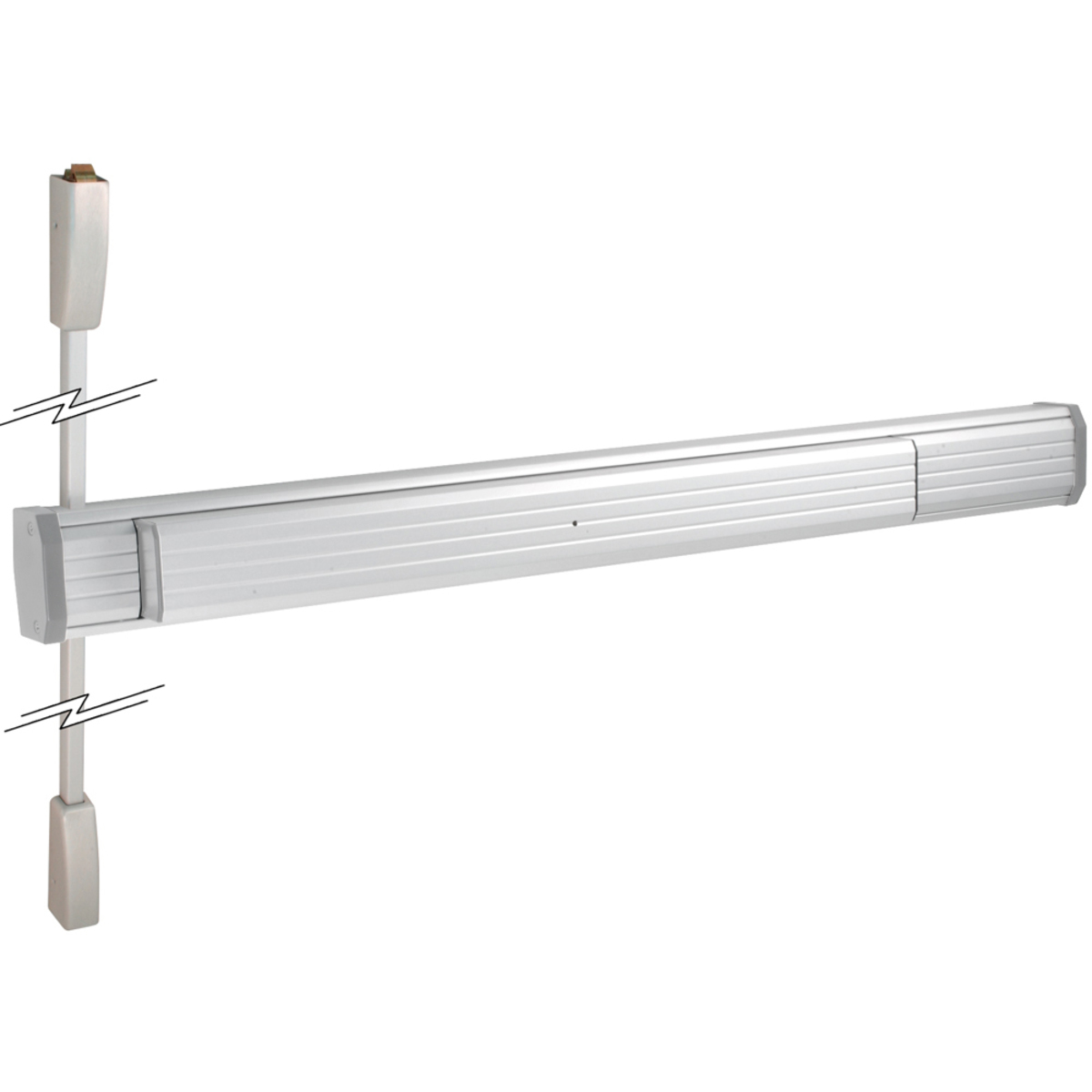

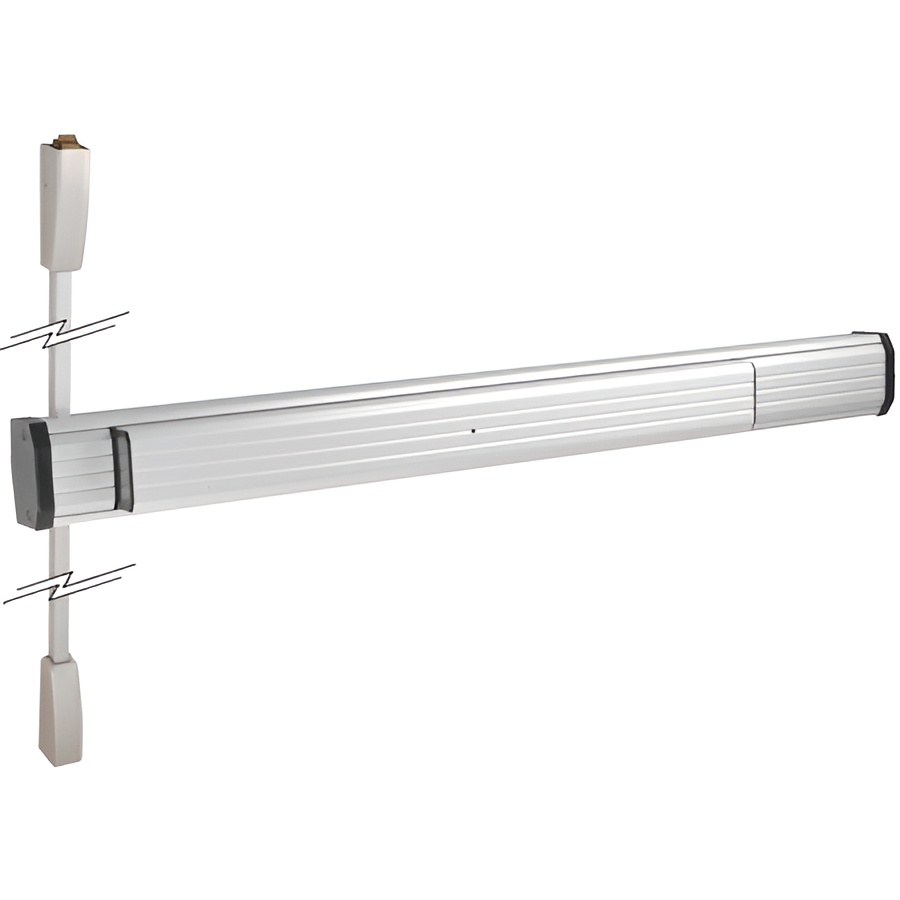

Satin Aluminum 36" x 96" Jackson 1275 Push Pad Surface Vertical Rod Panic Exit Device
- Designed for Use with 1-3/4" Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Soft-Touch Smooth Action Push-Pad
- Can Be Cut to Size
- Standard Hex Key Dogging
This CRL Jackson® Exit Device blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.
The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.
SPECIFICATIONS:
1275 Surface Vertical Rod Device
Stocked in Both 36" and 48" (914 mm and 1.22 m)
Standard Door Heights 84" (2.13 m) and 96" (2.44 m) - Field Sizeable
Materials:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
Product Warning
If this item is ordered with the "Cylinder Dogging" Deature, the manufacturer does not provide the cylinder, only the prep. It requires a 1-1/8" (28.6 mm) length mortise cylinder, which is not stocked by CRL, but can be special ordered.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Brand: Jackson
Certification: ANSI/BHMA 156.3
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Door Thickness: 1-3/4
Door Width: 36
Finish/ Color:: Satin Aluminum
Handing: Non Handed
Includes: Mounting Hardware
Material - End Cap: Aluminum
Material - Housing: High Tensile Strength Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Minimum Stile Width: 1-3/4
Model: 1275
Panic Bar Base Height: 3-3/16
Panic Bar Projection: 2-7/8
Panic Bar Width Net: 34-1/2"
Panic Dogging: Standard Hex Key Dogging
Panic Type: Surface Vertical Rod
Push Pad Width: 24
Recommended Door Type: Narrow, Medium, Wide Stile, Aluminum, Wood, Hollow Metal
Replacement Parts: 302861
Series: 1200
Shipping Limitations: None
Similar: 3327AE03313, 3327AE04313, 360L613
UL Listed: Yes
