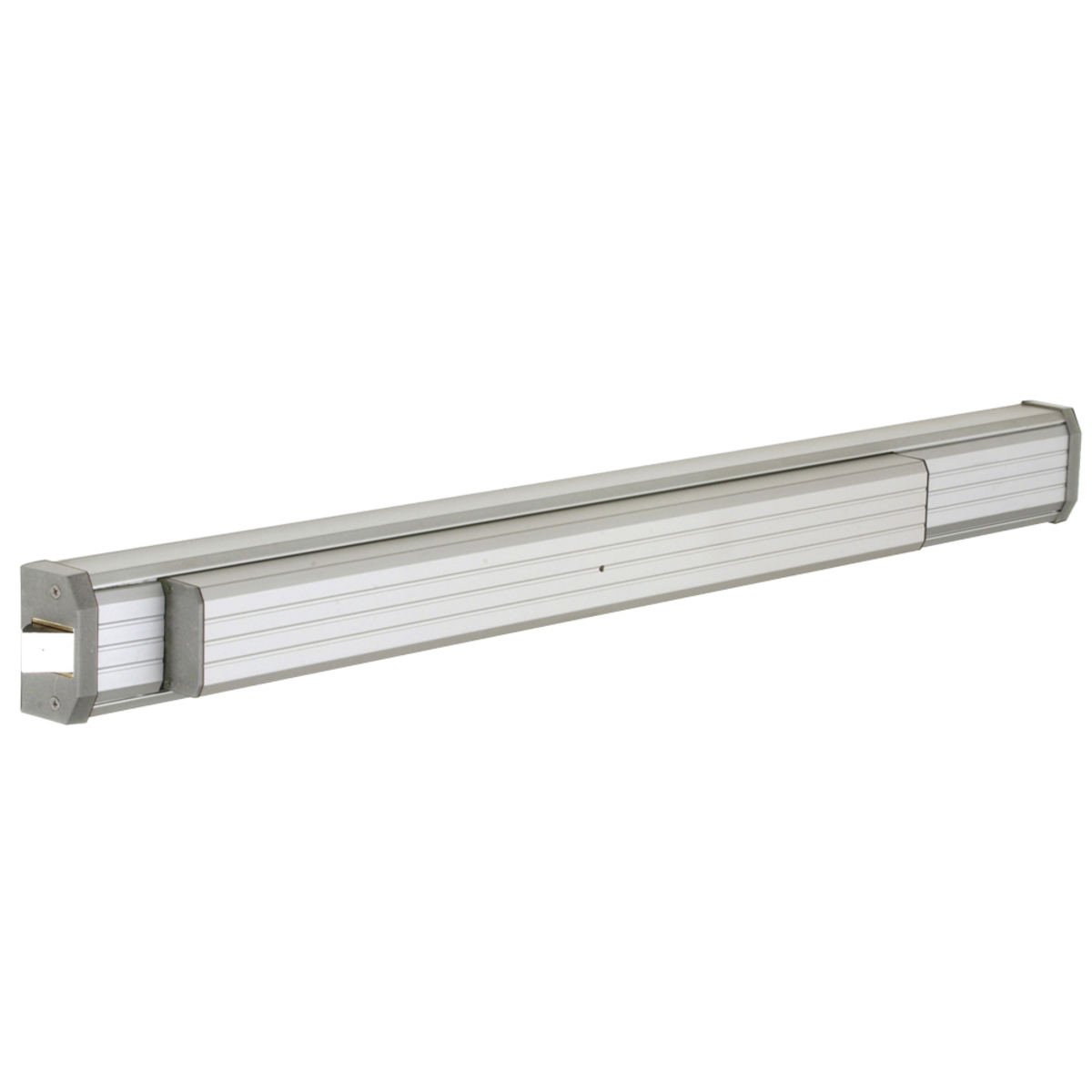

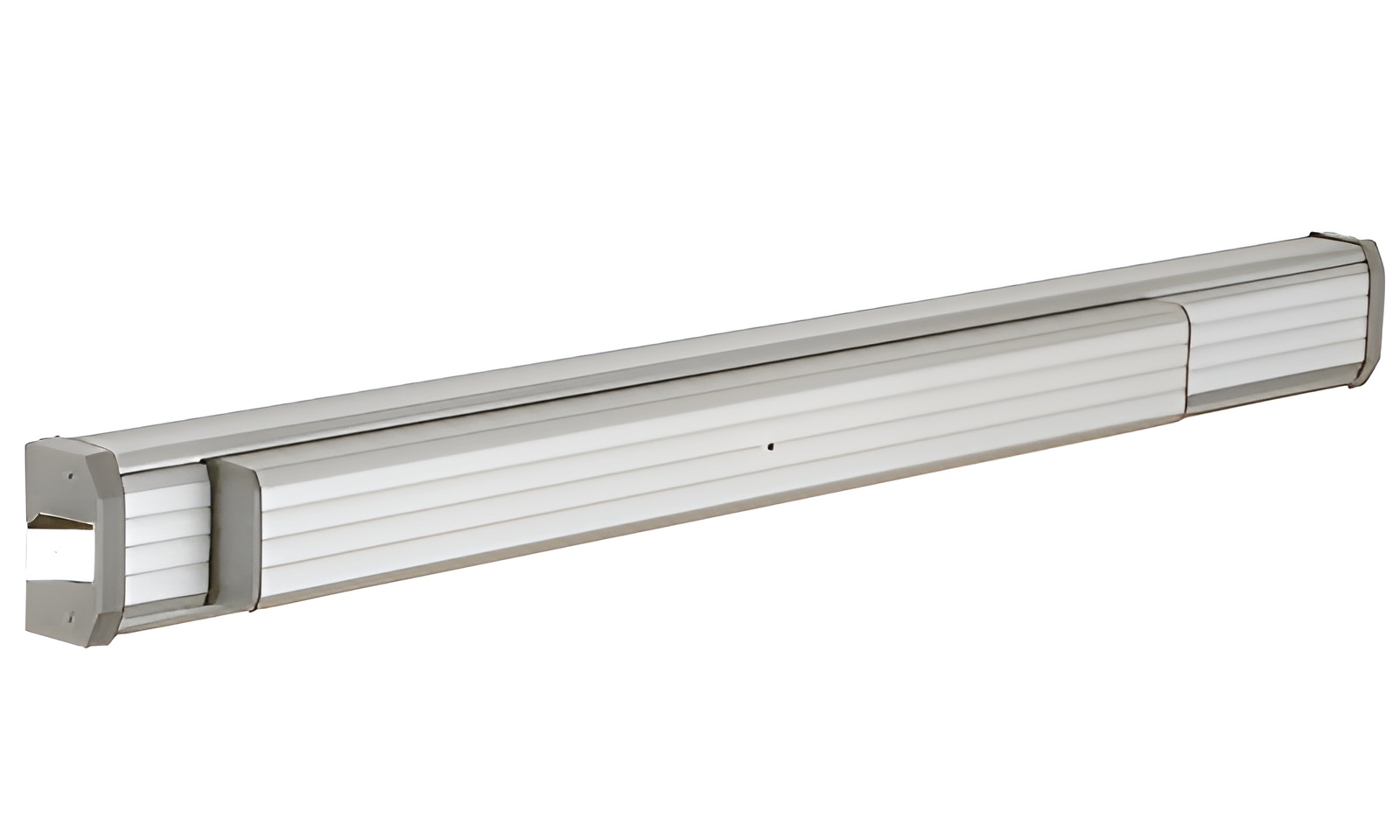

CRL 311295C3628 Jackson Satin Aluminum 36" Non-Handed Rim Panic Exit Device

CRL 311295C3628 Jackson Satin Aluminum 36" Non-Handed Rim Panic Exit Device

C.R. Laurence 311295C3628 Jackson Satin Aluminum 36" 1295 Push Pad Non-Handed Rim Panic Exit Device delivers a perfect blend of style and functionality for modern commercial spaces. Designed to accommodate 1-3/4" narrow, medium, and wide stile aluminum, wood, or hollow metal doors, this exit device is versatile and user-friendly. The soft-touch smooth action push-pad requires minimal pressure, ensuring quick and easy egress in emergencies. This device is available in both 36" and 48" widths and features a standard hex key dogging mechanism, allowing for secure locking without cumbersome manual intervention. The overall projection of just 2-7/8" from the door surface ensures a sleek appearance while concealing mounting hardware adds to its aesthetic appeal. The base can be easily trimmed for a customized fit, making installation straightforward. Crafted from durable materials, including extruded aluminum and sintered steel, the 1295 exit device is built to withstand the rigors of daily use while maintaining its integrity. It is UL listed for safety and complies with ANSI/BHMA 156.3 standards. Additionally, it requires a rim cylinder for keyed entry, providing added security options. With its contemporary design and reliable performance, this exit device is an ideal choice for any building professional seeking quality and style.

Jackson Satin Aluminum 36" 1295 Push Pad Non-Handed Rim Panic Exit Device

• Designed for Use with 1-3/4" Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
• Soft-Touch Smooth Action Push-Pad
• Can Be Cut to Size
• Standard Hex Key Dogging

This CRL Jackson® Exit Device blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal single doors or paired doors when used with the 896 Removable Mullion. The base is easily trimmed for field sizing. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.


The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.

SPECIFICATIONS:
1295 Rim Device
Stocked in Both 36" and 48" (914 mm and 1.22 m) Widths
Surface Mounted Roller Strike Standard
Requires Rim Cylinder for Keyed Entry

MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps


Product Warning:

If this item is ordered with the "Cylinder Dogging" feature, the manufacturer does not provide the cylinder, only the prep. It requires a 1-1/8" (28.6 mm) length mortise cylinder, which is not stocked by CRL, but can be special ordered.

Resources

• Jackson 1295 Rim Panic Exit Device Installation Instructions
• Jackson Door Control Products Limited Warranty and Liability Information
• Specifications SECTION 08 7100 12 Series Push Pad Exit Device Specifications.docx
