CRL 311295EC4628 Jackson 1295 Electrified 48" Aluminum Push Pad Rim Exit DeviceC.R. Laurence 311295EC4628 Aluminum 48" Jackson 1295 Electrified Push Pad Rim Exit Device offers a sophisticated blend of style and reliability for contemporary entryways. Designed for use with 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, this exit device features a "Soft-Touch" smooth action push-pad that requires minimal pressure for effortless operation. This device is available in Rim, Concealed, and Surface Vertical Rod configurations, making it versatile for various applications. The overall projection from the door surface is just 2-7/8" (73 mm), ensuring a sleek profile while maintaining concealed mounting hardware for a clean look. The vertical rods accommodate doors up to 84" (2.13 m) tall, and extensions for taller doors can be easily sourced. Crafted from high-quality materials, the base and push-pad are made of extruded aluminum, while the mechanical components consist of stainless and hardened plated steel. The sintered steel latch and strikes add to its durability. Additionally, the 1295 Rim Device is stocked in both 36" and 48" widths and includes essential mounting hardware. For those requiring cylinder dogging, a 1-1/8" (28.6 mm) mortise cylinder is needed, which can be special ordered. Elevate your building's security and aesthetics with this premium exit device.

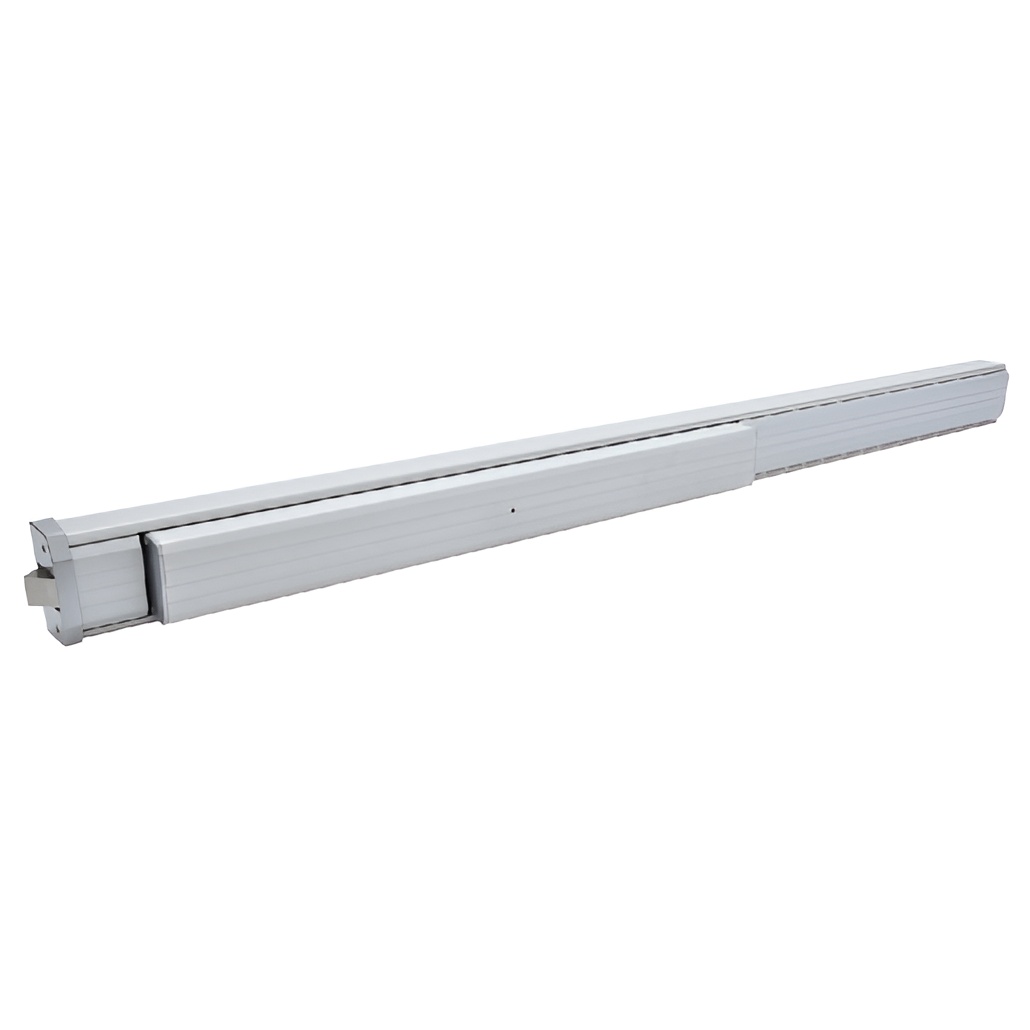

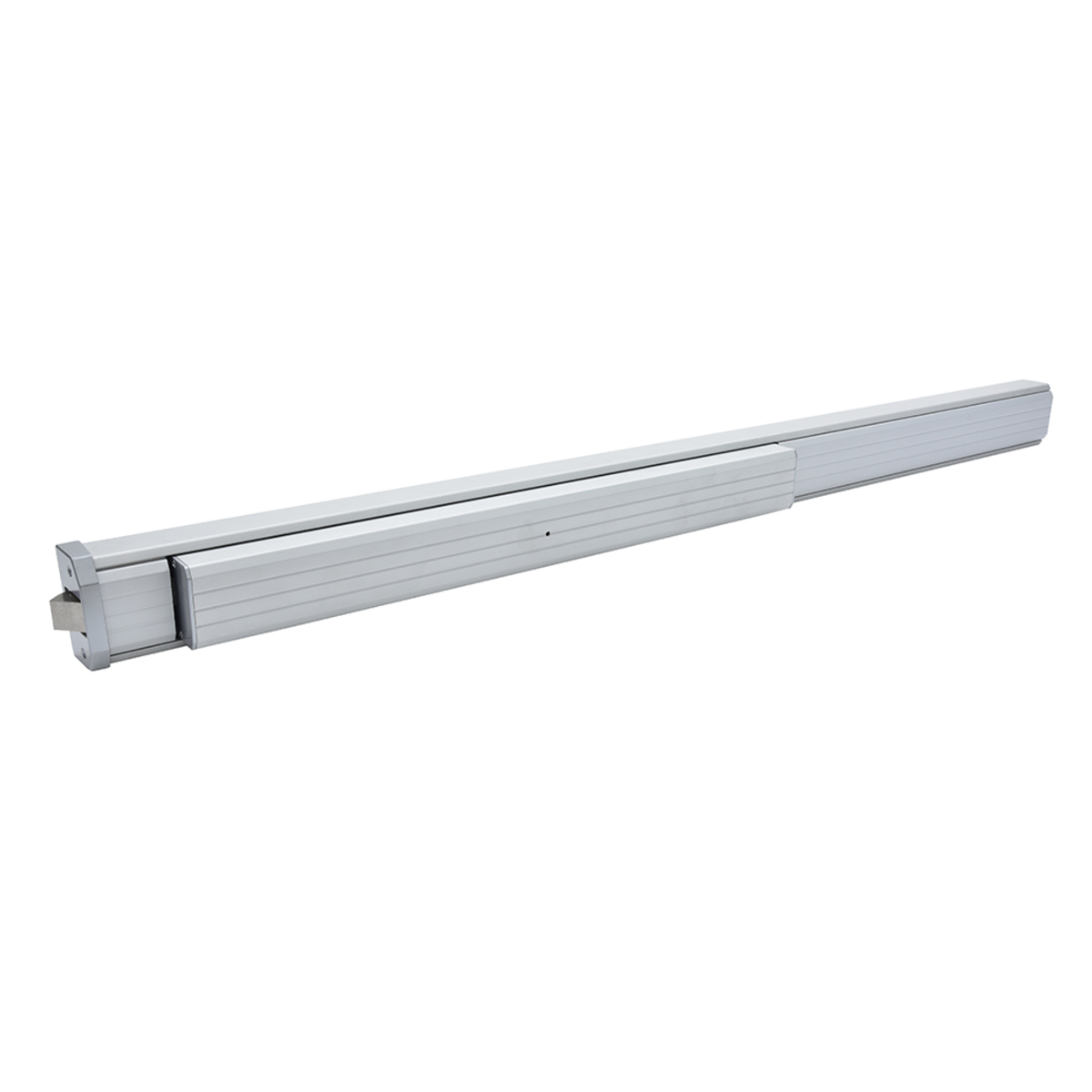

Aluminum 48" Jackson 1295 Electrified Push Pad Rim Exit Device
- Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- "Soft-Touch" Smooth Action Push-Pad
This CRL Jackson® Exit Device blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available.
The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available. SPECIFICATIONS: 1295 Rim Device Stocked in Both 36" and 48" (914 mm and 1.22 m) Widths Surface Mounted Roller Strike Standard Requires Rim Cylinder for Keyed Entry MATERIALS: Base and Push-Pad: Extruded Aluminum Mechanical Components: Stainless and Hardened, Plated Steel Latch and Strikes: Sintered Steel Metal End Caps
If this item is ordered with the "Cylinder Dogging" feature, the manufacturer does not provide the cylinder, only the prep. It requires a 1-1/8" (28.6 mm) length mortise cylinder, which is not stocked by CRL, but can be special ordered.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Width: 48
Finish/ Color:: Aluminum
Handing: Non Handed
Includes: Mounting Hardware
Material - End Cap: Aluminum
Material - Housing: Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Model: 1295
Shipping Limitations: None
Resources
