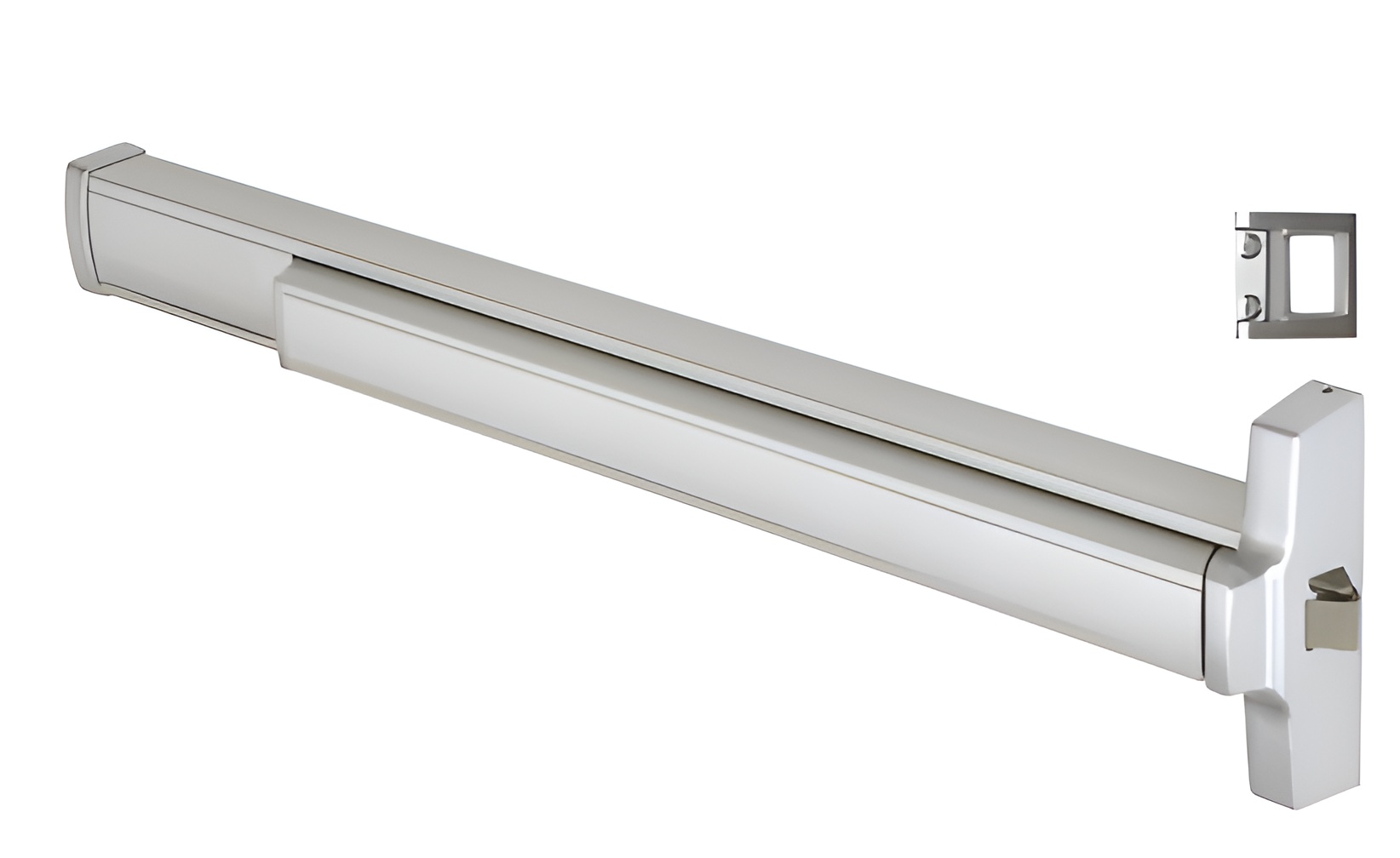

CRL 312095RS3628 Jackson 2095 Grade 1 Rim Latch Panic Exit Device, Right Hand, Satin Aluminum

CRL 312095RS3628 36" Jackson Model 2095 Grade 1 Rim Latch Panic Exit Device is engineered for reliability and performance, making it ideal for narrow, medium, and wide stile aluminum doors, as well as wood and hollow metal doors. This UL Listed device meets ANSI 156.3 Grade 1 specifications, ensuring compliance with high industry standards for security and durability. Featuring a right-hand reverse bevel design, the device comes with a concealed fastening system that enhances security while providing a sleek appearance. The easy-to-use push button dogging and a 3/4" (19 mm) throw deadlocking latch bolt facilitate smooth operation, complemented by a "Soft Touch" push pad that ensures quiet use. Installation is straightforward, and the device can be cut to size for a perfect fit. Available in a satin aluminum finish, this unit includes a standard Type 'C' Strike and offers options for keyed entry using a standard Rim Cylinder or Jackson® Outside Lever Trim Model 9500LV (both sold separately). For wood door applications, an optional Wood Door Mounting Kit is available. This panic exit device combines functionality with aesthetic appeal, making it a valuable addition to any building project.

36" Jackson Model 2095 Grade 1 Rim Latch Panic Exit Device Right Hand Reverse Bevel 'S' Strike Fits 32" to 36" Wide Door Satin Aluminum Finish

• Designed for Use with Narrow, Medium and Wide Stile Aluminum Doors, As Well As Wood and Hollow Metal Doors
• Complies with ANSI 156.3, Grade 1 Specifications
• Concealed Fastening for Added Security
• Can Be Cut to Size

Resources

• Installation Instructions 11M0289 2095 RIM.pdf
• Jackson Door Control Products Limited Warranty and Liability Information
