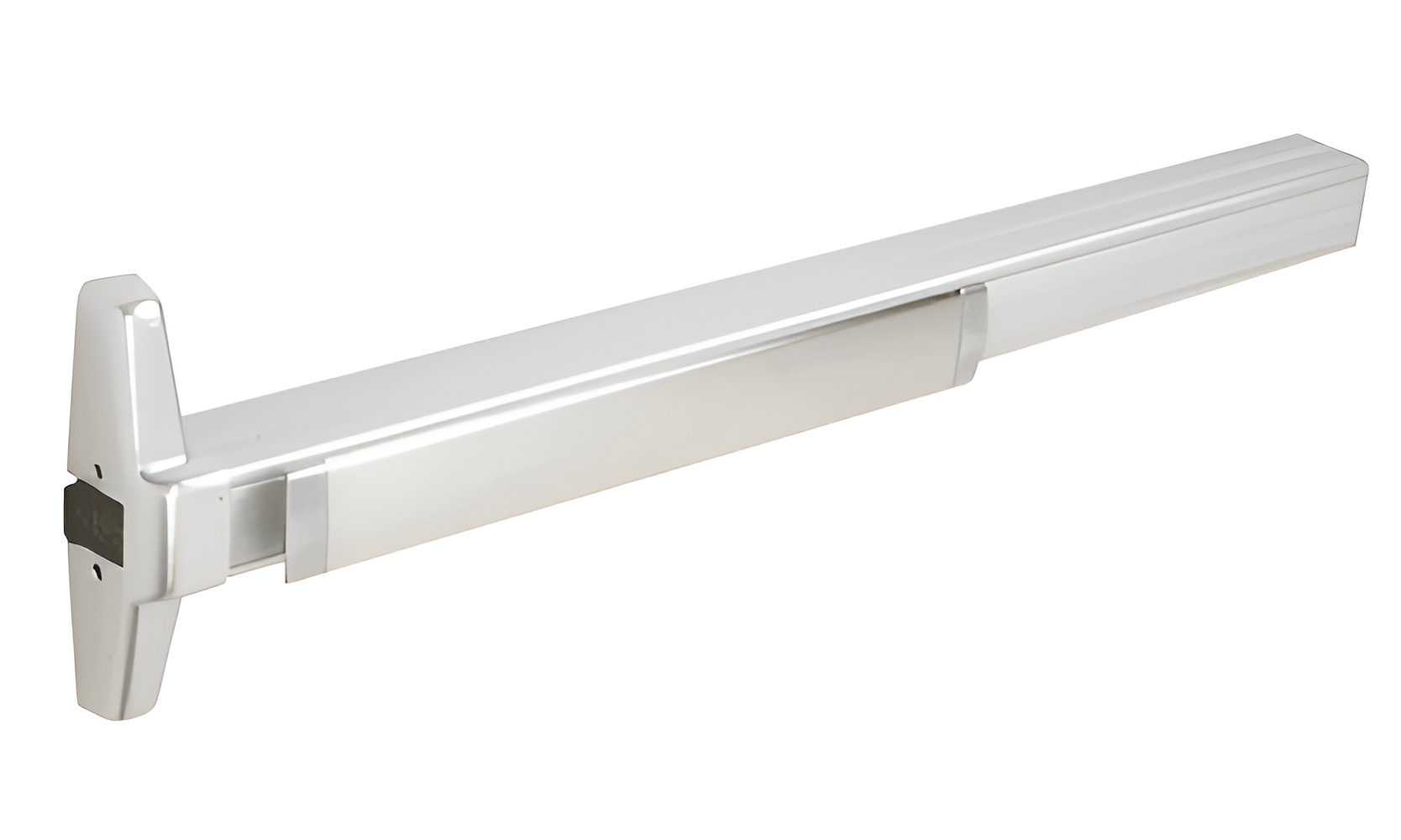

CRL 33AE03626 Von Duprin Rim Panic Exit Device, Grooved Case, Satin Chrome, 36" Exit OnlyCRL 33AE03626 Von Duprin Rim Panic Exit Device with Grooved Case Satin Chrome Finish 36 Exit Only is engineered for superior functionality and durability. This panic exit device is designed to fit door stiles as narrow as 1-3/4 inches (44 mm), making it versatile for various door types, including aluminum, wood, and hollow metal. The sleek satin chrome finish adds a modern touch, while the grooved case ensures a robust installation. Featuring the innovative "quiet One"® technology, this device significantly reduces noise typically associated with exit devices, enhancing user comfort and experience. The non-handed design simplifies installation and allows for flexibility in usage. Each unit includes a one-piece center case cover for added stability and a clean aesthetic. Built to meet the highest standards, the CRL 33A Series is UL Listed for Panic Exit Hardware and complies with ANSI A156.3, Grade 1 standards, ensuring safety and reliability in emergency situations. Additionally, standard hex key dogging provides secure locking when needed. With a recommended door width of 36 inches (914.4 mm) and a panic bar projection of 3-13/16 inches (96.8 mm), this device is an essential component for any commercial setting prioritizing safety and compliance.
Von Duprin Rim Panic Exit Device with Grooved Case Satin Chrome Finish 36 Exit Only
- Available With Smooth or Grooved Housing
- Non-Handed
- One Piece Center Case Cover
The
IR Von Duprin® 33A Series Rim Panic Exit Device is designed with a grooved case and is intended to fit door stiles as narrow as 1-3/4" (44 mm). This device features the "quiet One"® technology which eliminates most noise associated with Exit Devices and is manufactured to the highest standard of quality. All 33A and 35A Series Exit Devices are UL Listed for Panic Exit Hardware, and are tested in accordance to ANSI A156.3, Grade 1 standards. For additional information, contact our Technical Sales Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Brand: Von Duprin®
Case Quantity: 2
Certification: ANSI/BHMA 156.3 Grade 1
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness: 1-3/4 in. (44.5 mm)
Door Width: 36 in. (914.4 mm)
Finish/ Color:: Satin Chrome
Handing: Non Handed
Includes: Mounting Hardware
Material: Aluminum
Minimum Stile Width: 1-3/4 in. (44.5 mm)
Model: 33AEO
Panic Bar Base Height: 2-1/4 in. (57.2 mm)
Panic Bar Projection: 3-13/16 in. (96.8 mm)
Panic Bar Width Net: 35-3/8 in. (898.5 mm)
Panic Body Style: Grooved
Panic Dogging: Standard Hex Key Dogging
Panic Head Base Width: 2-11/16 in. (68.3 mm)
Panic Head Height: 8-3/16 in. (208 mm)
Panic Type: Rim Exit Device
Push Pad Width: 18 in. (457.2 mm)
Recommended Door Type: Aluminum, Narrow, Medium, Wide Style, Wood, Hollow Metal
Replacement Parts: DC7205SCKDSC, DC7015SC8KDSC, Special Order
Series: 33A
Shipping Limitations: None
UL Listed: Yes
