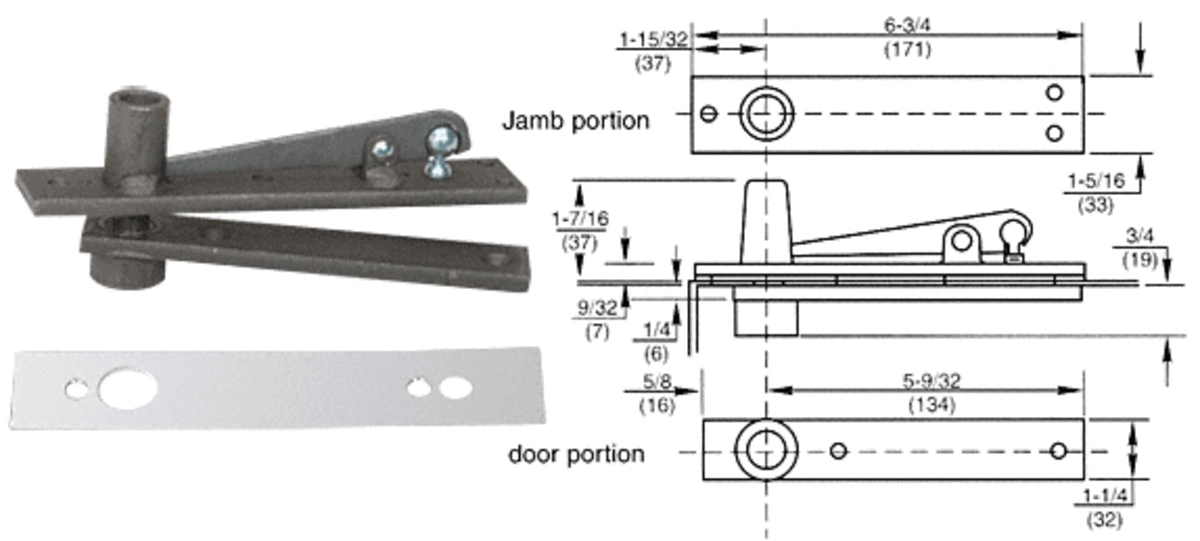

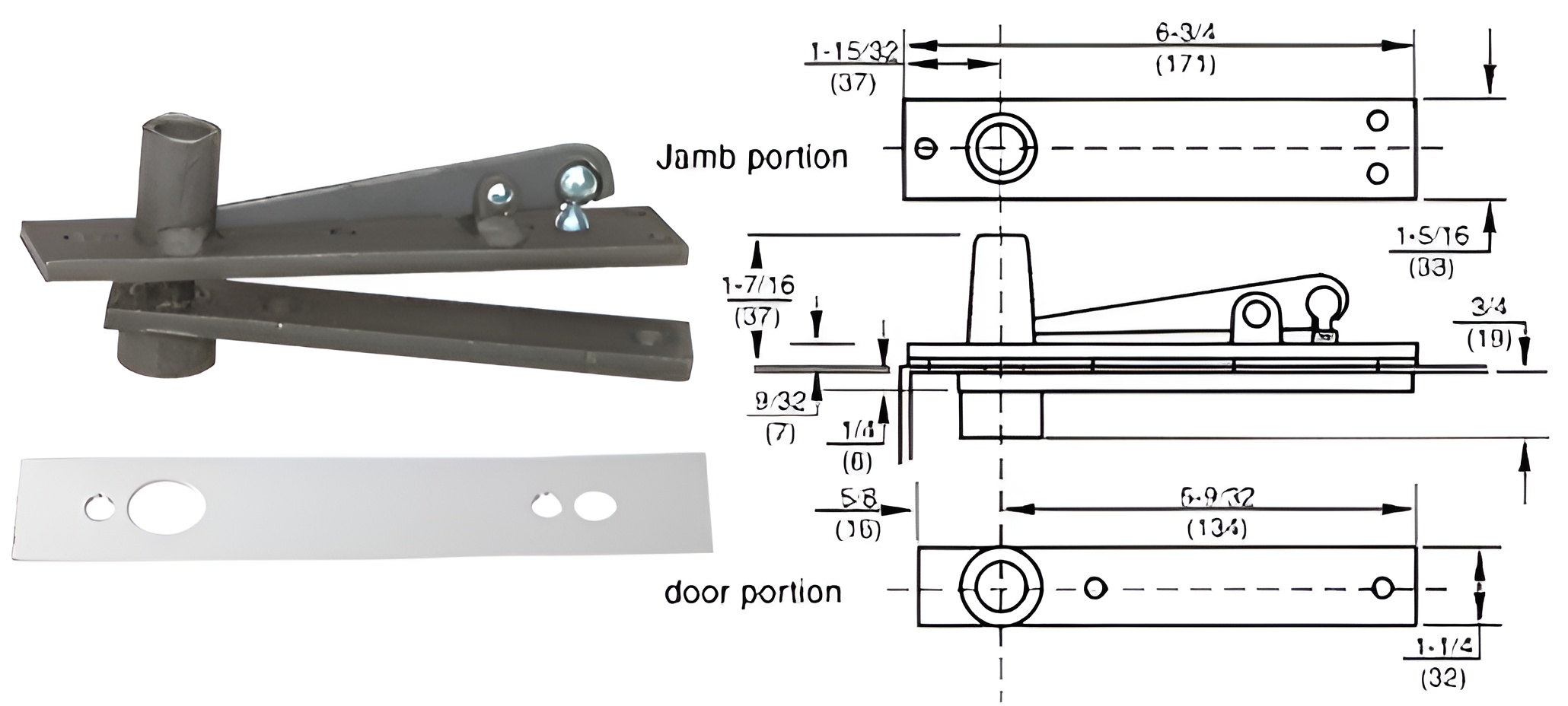

CRL 340PC Rixson Center-Hung Top Pivot with Chrome Cover Plate

CRL 340PC Rixson Center-Hung Top Pivot with Polished Chrome Cover Plate offers a reliable solution for your door installation needs. This "walking beam" type pivot is engineered with a robust 1/2" (13 mm) diameter pivot pin, complemented by a durable sintered bronze bearing for smooth operation. The heavy-duty 11/16" (17 mm) diameter pivot pin with a needle bearing ensures longevity and performance even in high-traffic environments. Designed for versatility, these pivots are non-handed and fully mortised, making them suitable for various applications, including aluminum store front doors. The pivot comes with a supplied door receiver that provides a 3/4" (19 mm) deep engagement, ensuring a secure fit. Additionally, the finished cover plate, along with wood and machine screws, is included for easy installation. With a bottom door clearance adjustment of 1-3/4 in. (44.5 mm) and a bottom door rail depth of 1-3/4, the CRL 340PC is engineered to meet the demands of professional builders and discerning homeowners alike. Finished in polished chrome, this pivot not only performs exceptionally but also adds a modern touch to any entryway. Choose the CRL Rixson Center-Hung Top Pivot for a combination of strength, style, and functionality.

Rixson Center-Hung Top Pivot with Polished Chrome Cover Plate

• Regular Duty 1/2" (13 mm) Diameter Pivot Pin with Sintered Bronze Bearing
• Finished Cover Plates, Wood, and Machine Screws are Included
• Heavy-Duty 11/16" (17 mm) Diameter Pivot Pin With Needle Bearing
• Pivots are Non-Handed
