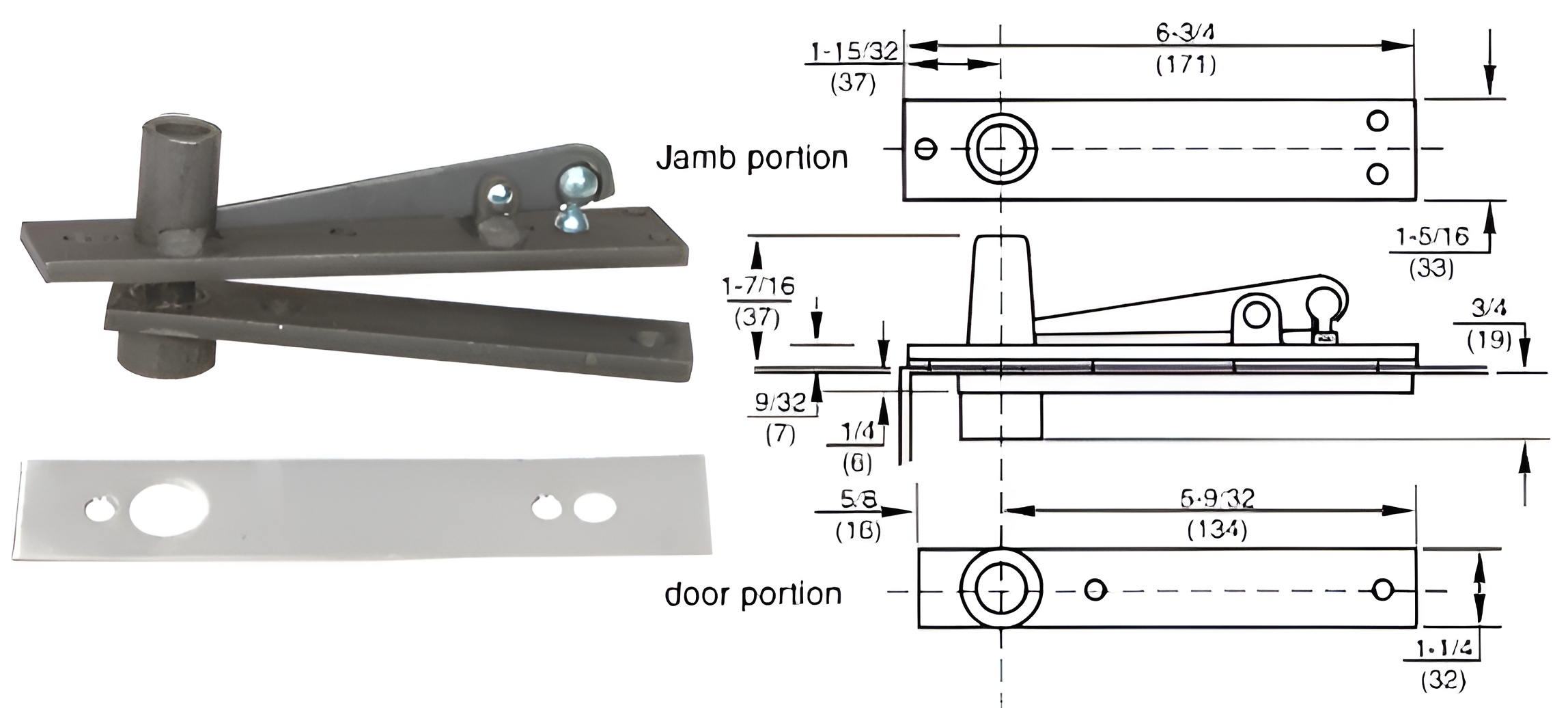

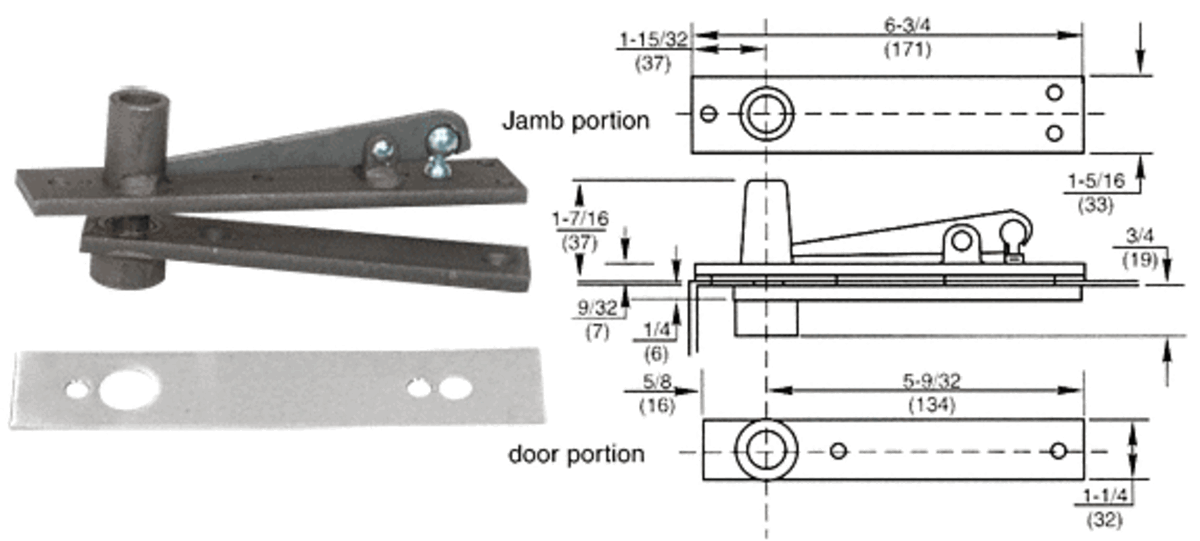

CRL 340SC Rixson Satin Chrome Center-Hung Top Pivot with Cover Plate

CRL 340SC Rixson Center-Hung Top Pivot with Satin Chrome Cover Plate offers a robust solution for your door pivoting needs. Designed with a regular-duty 1/2" (13 mm) diameter pivot pin featuring a sintered bronze bearing, this pivot ensures smooth operation and reliability. The heavy-duty alternative includes an 11/16" (17 mm) diameter pivot pin with a needle bearing, providing enhanced durability for high-traffic areas. This "walking beam" type pivot is fully mortised and non-handed, making it versatile for various installation requirements. The included finished cover plate, along with wood and machine screws, simplifies the installation process. The door receiver provides a 3/4" (19 mm) deep engagement, ensuring secure and effective operation. Ideal for aluminum storefront doors, the CRL 340SC accommodates a bottom door clearance adjustment of 1-3/4" (44.5 mm) and a bottom door rail depth of 1-3/4". Its sleek satin chrome finish adds a touch of elegance, while the aluminum material ensures longevity. With no shipping limitations and the ability to ship via UPS, this Rixson pivot is an excellent choice for both building professionals and discerning homeowners seeking quality and efficiency in their door hardware solutions.

Rixson Center-Hung Top Pivot with Satin Chrome Cover Plate

• Regular Duty 1/2" (13 mm) Diameter Pivot Pin with Sintered Bronze Bearing
• Finished Cover Plates, Wood, and Machine Screws are Included
• Heavy-Duty 11/16" (17 mm) Diameter Pivot Pin With Needle Bearing
• Pivots are Non-Handed
