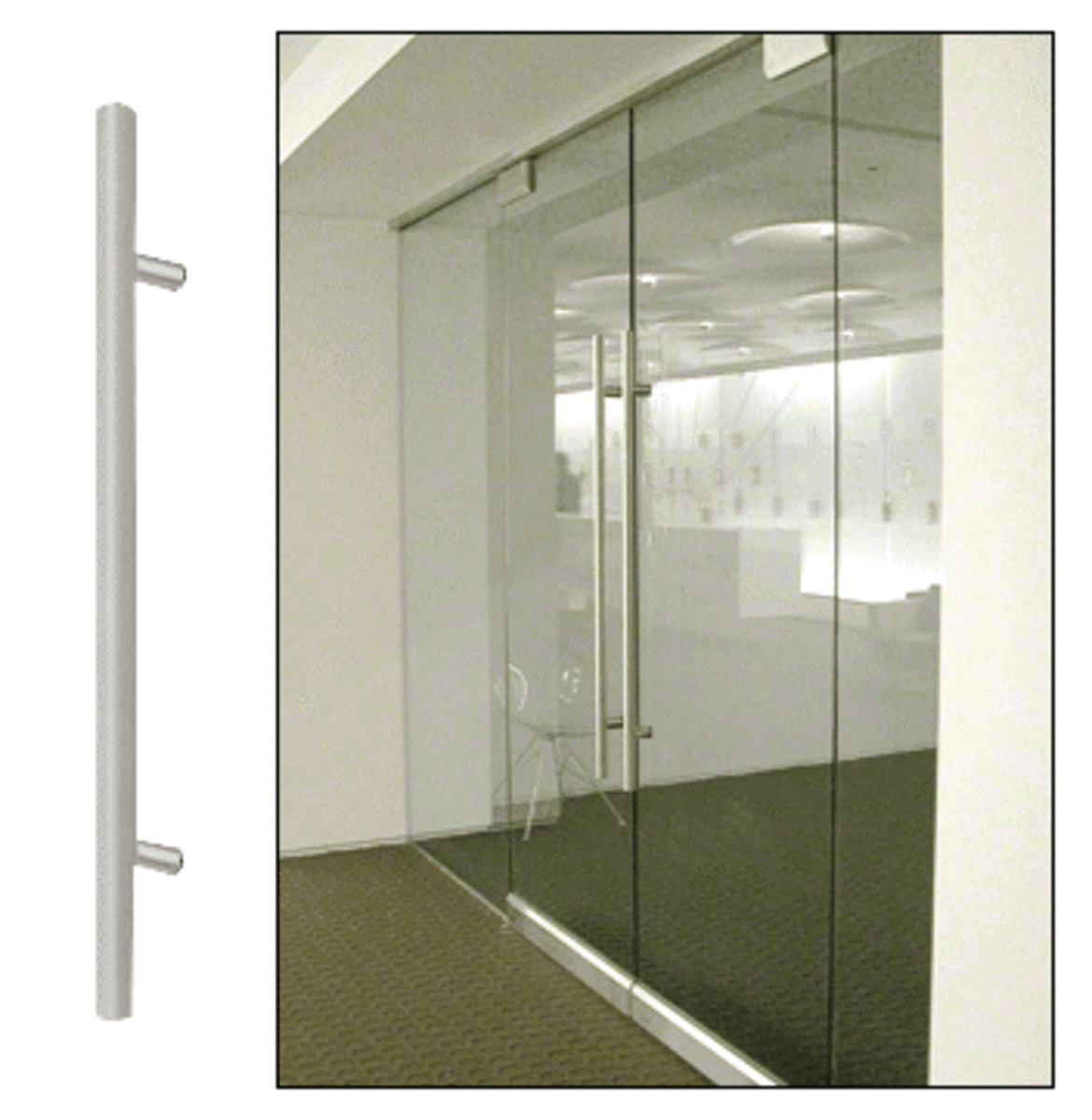

CRL 36LPSBS Brushed Stainless 36" Extra Length Single-Sided Ladder Pull HandleC.R. Laurence 36LPSBS Brushed Stainless 36" Extra Length Ladder Style Single-Sided Pull Handle combines sleek design with robust functionality, making it an ideal choice for any modern architectural setting. Crafted from high-quality 304 Grade stainless steel, this pull handle not only offers durability but also a sophisticated brushed finish that enhances the aesthetic appeal of glass doors. The handle features an overall length of 36 inches and is designed for mounting on 3/8" to 3/4" thick tempered glass, ensuring a secure grip for frequent use. It comes with two mid-posts and fasteners to facilitate back-to-back installations, while additional mid-posts can be ordered for extra support, allowing for a maximum mid-post spacing of 72 inches. Available in various sizes ranging from 24" to 48" and finishes including brushed or polished stainless steel and matte black, this pull handle can be customized to meet specific design requirements. The necessary mounting holes require a diameter of 5/8 inches, making installation straightforward. With its blend of style and strength, the C.R. Laurence 36LPSBS Ladder Pull Handle is the perfect solution for those seeking both functionality and elegance in their architectural projects.
Brushed Stainless 36" Extra Length Ladder Style Single-Sided Pull Handle
- Five Sizes Ranging from 24" to 48" (610 mm to 1.22 m) Overall Height
- Finishes: Brushed or Polished Stainless Steel and Matte Black
- Custom Lengths, Designs, and Finishes Available on Special Order
- Click Here for Custom Pull Order Forms
- Made of 304 Grade Stainless Steel
CRL Straight Style Ladder Pulls come with two mid-posts and fasteners for mounting back-to-back on 3/8" to 3/4" (10 to 19 mm) thick tempered glass. Fasteners for 1-3/4" (44 mm) wood or aluminum doors must ordered separately. Custom Ladder Pulls can be ordered with additional mid-posts for added support. Maximum spacing of mid-posts is limited to 72" (1.83 m).
SPECIFICATIONS:
3/8" to 3/4" (10 to 19 mm) Thick Tempered Glass; 1-3/4" (44 mm) Thick Aluminum or Wood Doors (F41SKBS fasteners sold separately)
CONSTRUCTION:
1-1/4" (32 mm) Diameter 304 Grade Stainless Steel Tubing
GLASS FABRICATION:
Requires Two 5/8" (16 mm) Diameter Holes
NOTE:
Click Here to view our Our Back-to-Back Ladder Pulls in all available sizes and finishes.
" target="_blank">https://www.crlaurence.com/products/brands/listing/A12AA_DW/">Click Here to view our Our Back-to-Back Ladder Pulls in all available sizes and finishes.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 24 in. (610 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Single Sided
Overall Length: 36 in. (914 mm)
Shipping Limitations: None
Style Washers: No
