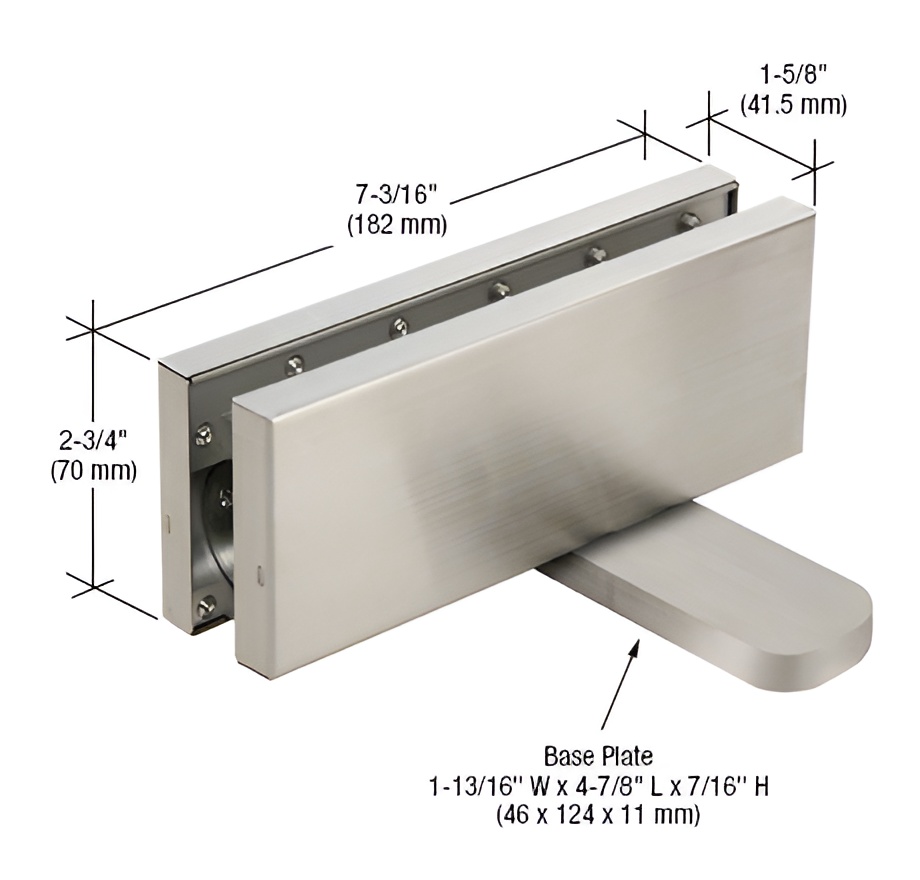

CRL 380HBS Brushed Stainless Hydraulic Patch Fitting, 2-9/16" Setback, 90 Hold Open

C.R. Laurence 380HBS Brushed Stainless Hydraulic Patch Fitting with 2-9/16" Setback - 90 Hold Open Model is an essential component for any interior glass door system. This medium-duty fitting is designed to accommodate tempered glass panels ranging from 3/8" to 1/2" thick, ensuring adaptability for various applications. With its unique flush mount design, there is no need for a hole in the floor, streamlining installation and enhancing aesthetics. The 380HBS features two adjustment screws that allow for precise control over the latching and swing speeds, providing efficient operation tailored to user preferences. It supports a maximum door width of 39" and a weight capacity of 220 lbs, making it suitable for a wide range of door sizes and styles. Available in finishes such as Brushed and Polished Stainless, Satin Anodized, and Matte Black, this patch fitting complements any architectural design. For optimal performance, it is recommended to use this fitting in conjunction with PH21A top patches. Please note that custom headers are required for the 2-9/16" pivot point. Regular maintenance is advised to preserve the stainless steel finish, ensuring longevity and a professional appearance. Elevate your interior spaces with C.R. Laurence's reliable and stylish hydraulic patch fitting.

Brushed Stainless Hydraulic Patch Fitting with 2-9/16" Setback - 90 Hold Open Model

• 2-9/16" (65 mm) Pivot Point
• Available in Brushed and Polished Stainless, Satin Anodized, and Matte Black Finishes
• Accommodates 3/8" to 1/2" (10 to 12 mm) Tempered Glass
• Flush Mount - No Hole Required in the Floor
• For Interior Use Only
• Must be used with PH21A top patches

Stainless Steel Advisory:

Resources

• CRL 380 Hydraulic Patch Hinge Installation Instructions
• CRL Stainless Steel Disclaimer
