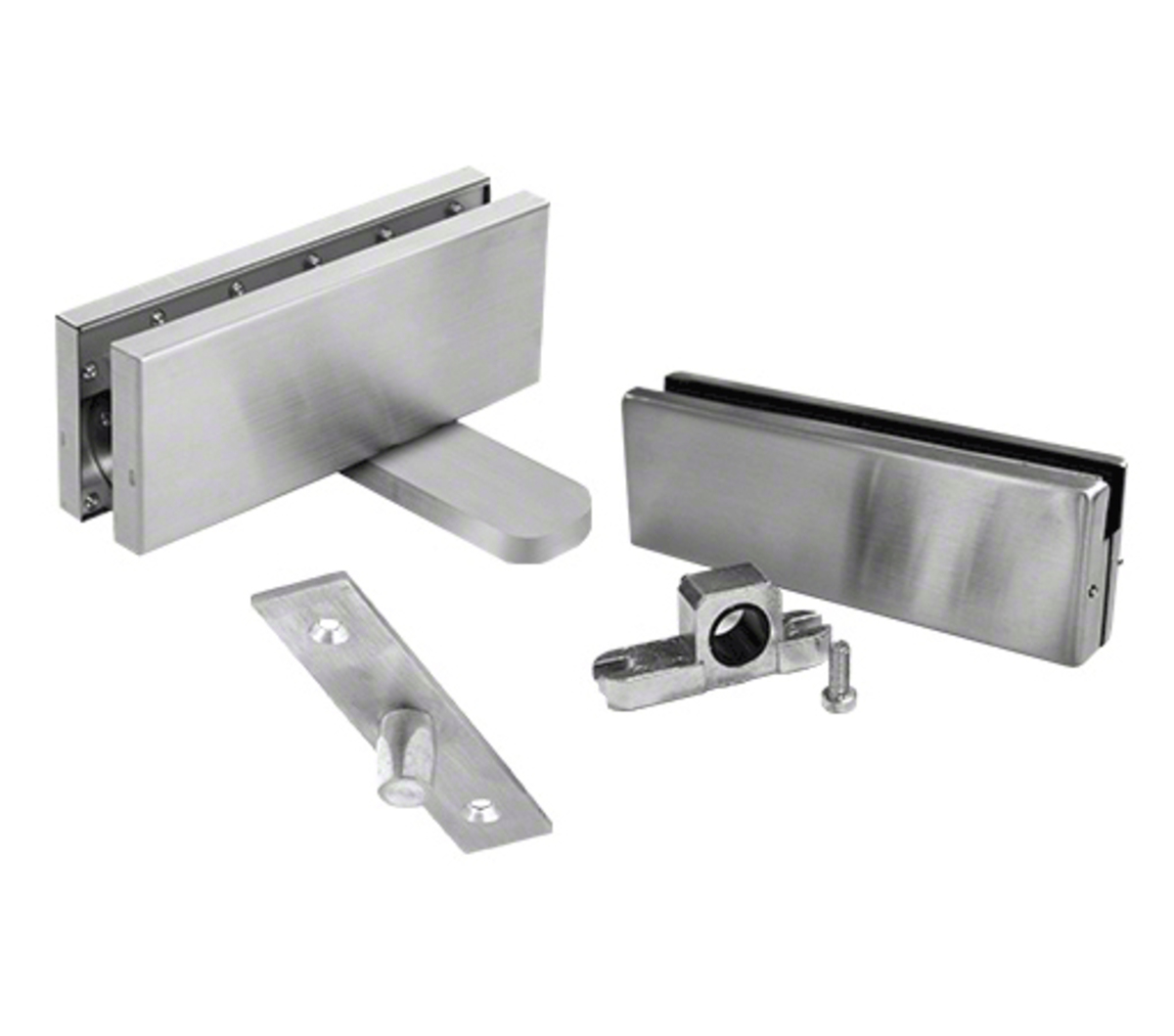

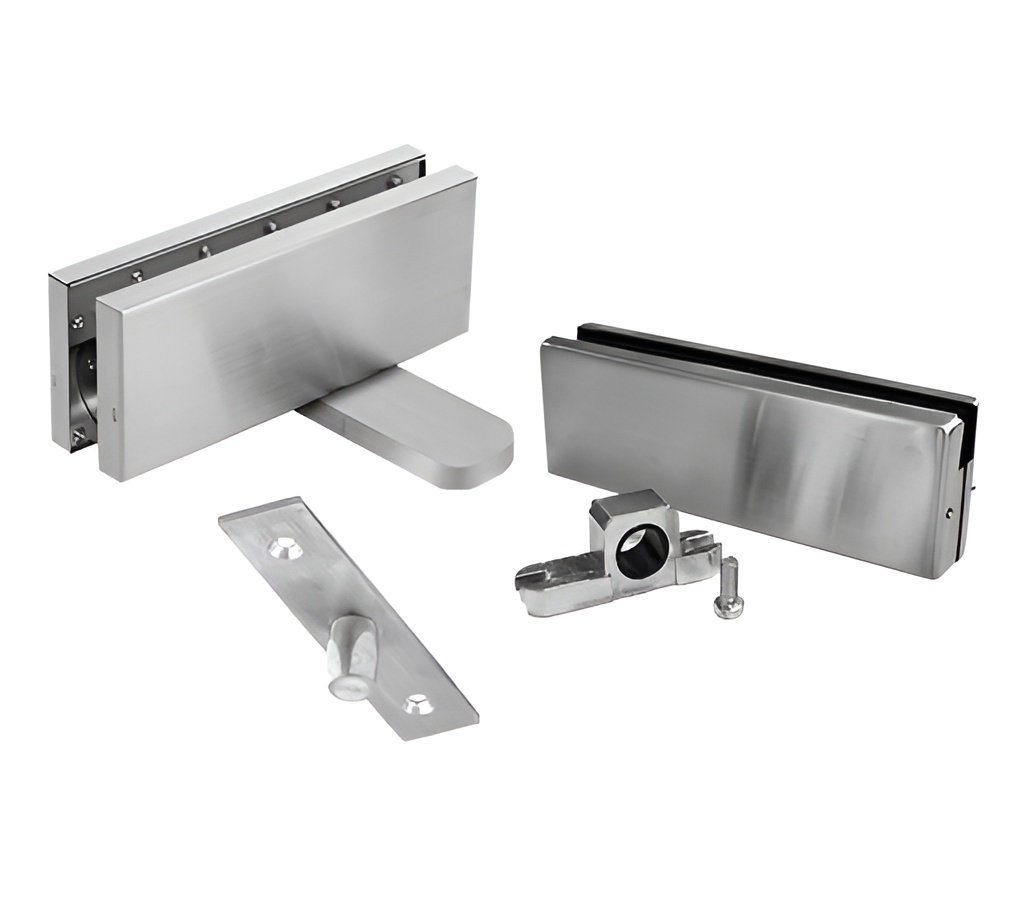

CRL 380HBSSET Brushed Stainless Steel Hydraulic Patch Door Set with Hold Open Feature

CRL 380HBSSET Brushed Stainless Steel Hydraulic Patch Door Set Hold Open offers a sophisticated solution for modern interior spaces. This all-glass door set features a hydraulic patch fitting with backcheck, a top door patch fitting, and a top centre-hung free swing pivot, ensuring seamless operation and durability. Designed to accommodate 3/8" to 1/2" (10 to 12 mm) tempered glass, it provides versatile installation options for various glass thicknesses. The flush mount design eliminates the need for floor holes, allowing for a clean aesthetic that enhances your interior's visual appeal. Available in brushed stainless steel, polished stainless steel, and matte black finishes, this door set complements a wide range of design styles. With a pivot setback of 2-9/16" [65 mm], it can support door widths up to 39 inches (991 mm) and a maximum panel weight of 220 lbs. (99.8 kg), making it suitable for heavy-duty applications. Please note that custom headers with the specified pivot point must be ordered separately, as these fittings are not compatible with stock NH36xx and NH72xx headers. For maintenance, periodic care is recommended to preserve its factory finish, as stainless steel, while corrosion-resistant, is not entirely rust or stain-proof. Upgrade your space with the elegant functionality of the CRL 380HBSSET.

Brushed Stainless Steel Hydraulic Patch Door Set Hold Open

• 2-9/16" [65 mm} Pivot Point
• Available in Brushed and Polished Stainless and Matte Black Finishes
• Accommodates 3/8" to 1/2" (10 to 12 mm) Tempered Glass
• Flush Mount - No Hole Required in the Floor
• For Interior Use Only

Stainless Steel Advisory:

Resources

• CRL 380 Hydraulic Patch Hinge Installation Instructions
• CRL 380 Hydraulic Patch Hinge Installation Instructions
• CRL Stainless Steel Disclaimer
