CRL 380HPS Polished Stainless Hydraulic Patch Fitting, 90 Hold Open, 2-9/16
Images may not represent actual product and finish

CRL 380HPS Polished Stainless Hydraulic Patch Fitting, 90 Hold Open, 2-9/16" Setback

Your Price: $200.21
Retail Price:$239.68
Your Savings:$39.47(16%)
The CRL 380HPS Hydraulic Patch Fitting offers a sleek, polished stainless design for seamless interior glass door installations.
Part Number : CRL_380HPS
Availability: 371 In Stock
CRL 380HPS Polished Stainless Hydraulic Patch Fitting, 90 Hold Open, 2-9/16" Setback

Polished Stainless Hydraulic Patch Fitting With 2-9/16" Setback - 90 Hold Open Model

  • 2-9/16" (65 mm) Pivot Point
  • AAvailable in Brushed and Polished Stainless, Satin Anodized, and Matte Black Finishes
  • Accommodates 3/8" to 1/2" (10 to 12 mm) Tempered Glass
  • Flush Mount - No Hole Required in the Floor
  • For Interior Use Only
  • Must be used with PH21A top patches

CRL380 Series Hydraulic Patch Fittings are medium duty for interior use. There are two adjustment screws to adjust the latching speed and the swing speed. The Hydraulic Patch Fitting is designed for installation without the need for any other floor or overhead closing devices. Maximum door width is 39" (1 m) and maximum weight is 220 lbs (100kg). Fitting can accommodate 3/8" (10 mm), and 1/2" (12 mm) tempered glass. Glass fabrication (cut-out) is required.


Product Warning:

Custom headers with 2-9/16" [65 mm] pivot points must be ordered if needed. These fittings are not compatible with the stock NH36xx and NH72xx.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

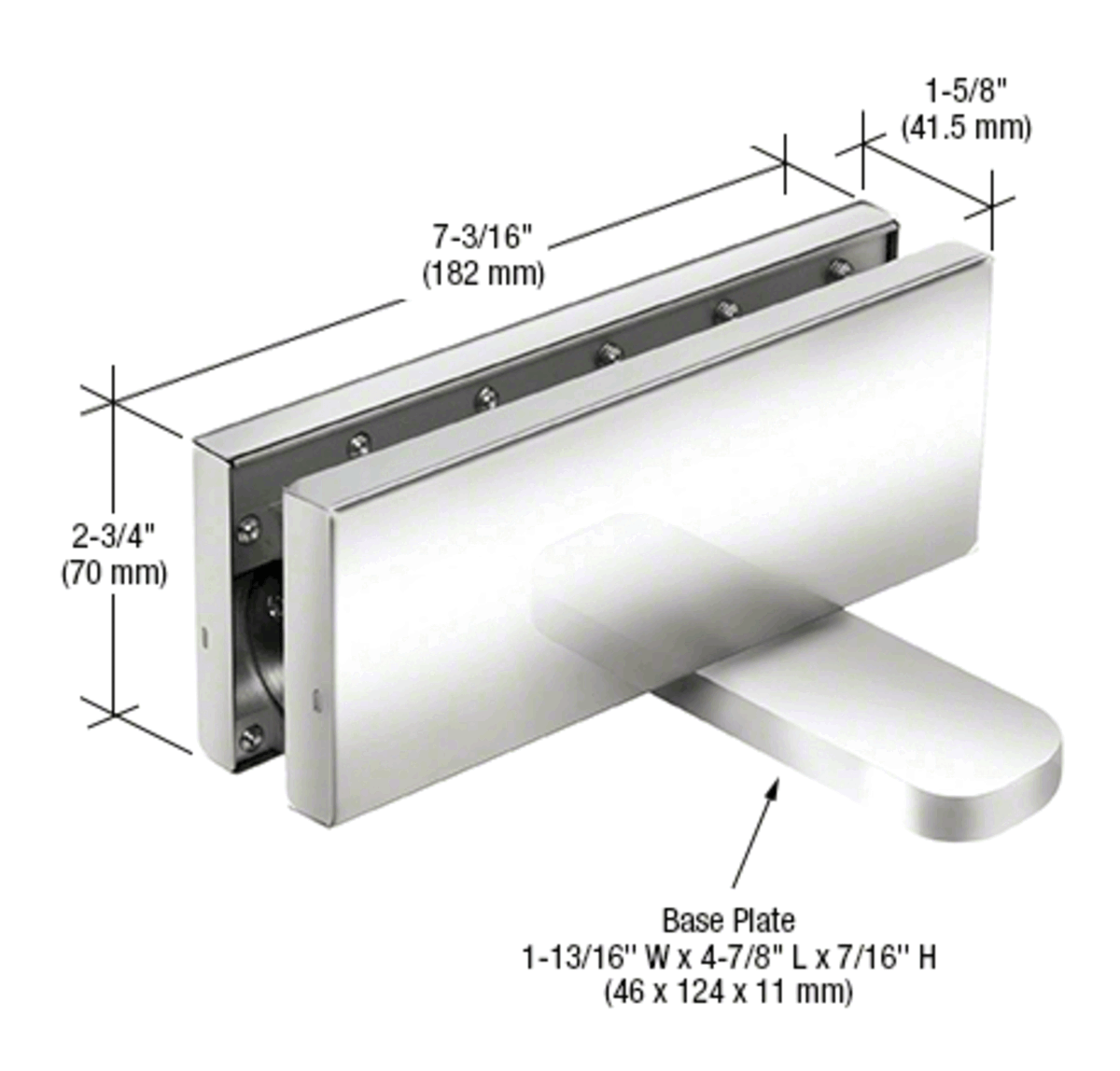

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Polished Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Height: 2-3/4 in. (70 mm)

Hold Open: Yes

Length: 7-3/16 in. (183 mm)

Maximum Door Width: 39 in. (991 mm)

Maximum Panel Weight: 220 lbs. (99.8 kg)

Pivot Setback: 2-9/16

Shipping Limitations: None

Width: 1-5/8 in. (41 mm)
