CRL 3DR130F3R1PT Blumcraft Right Hand Reverse Roll Top Rail Mount Deadbolt Handle for 3/4
Images may not represent actual product and finish

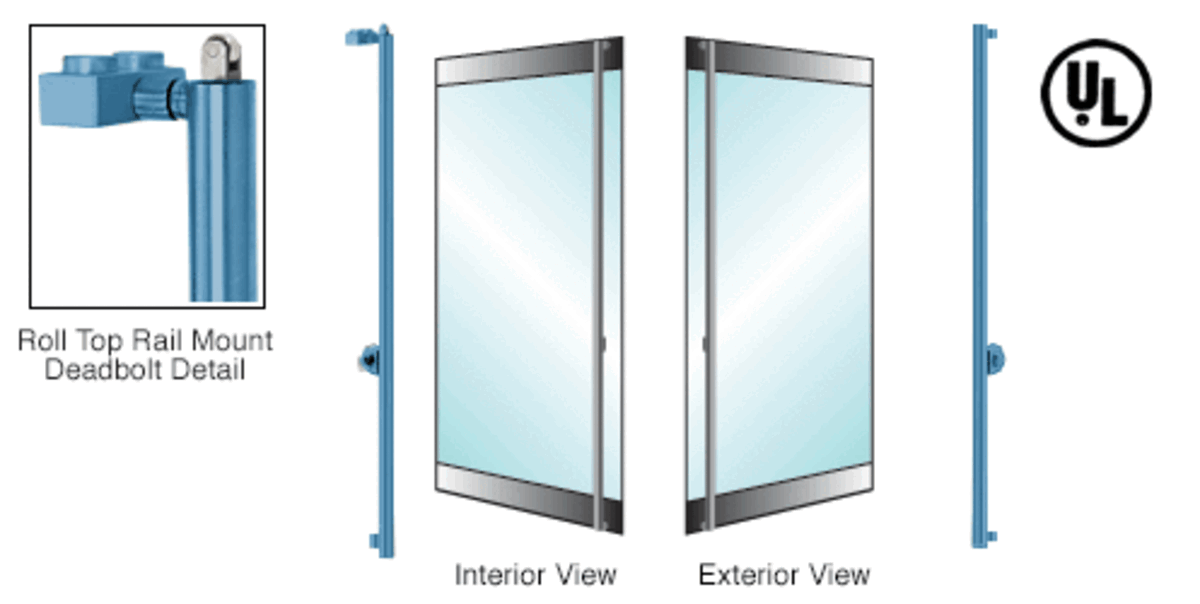

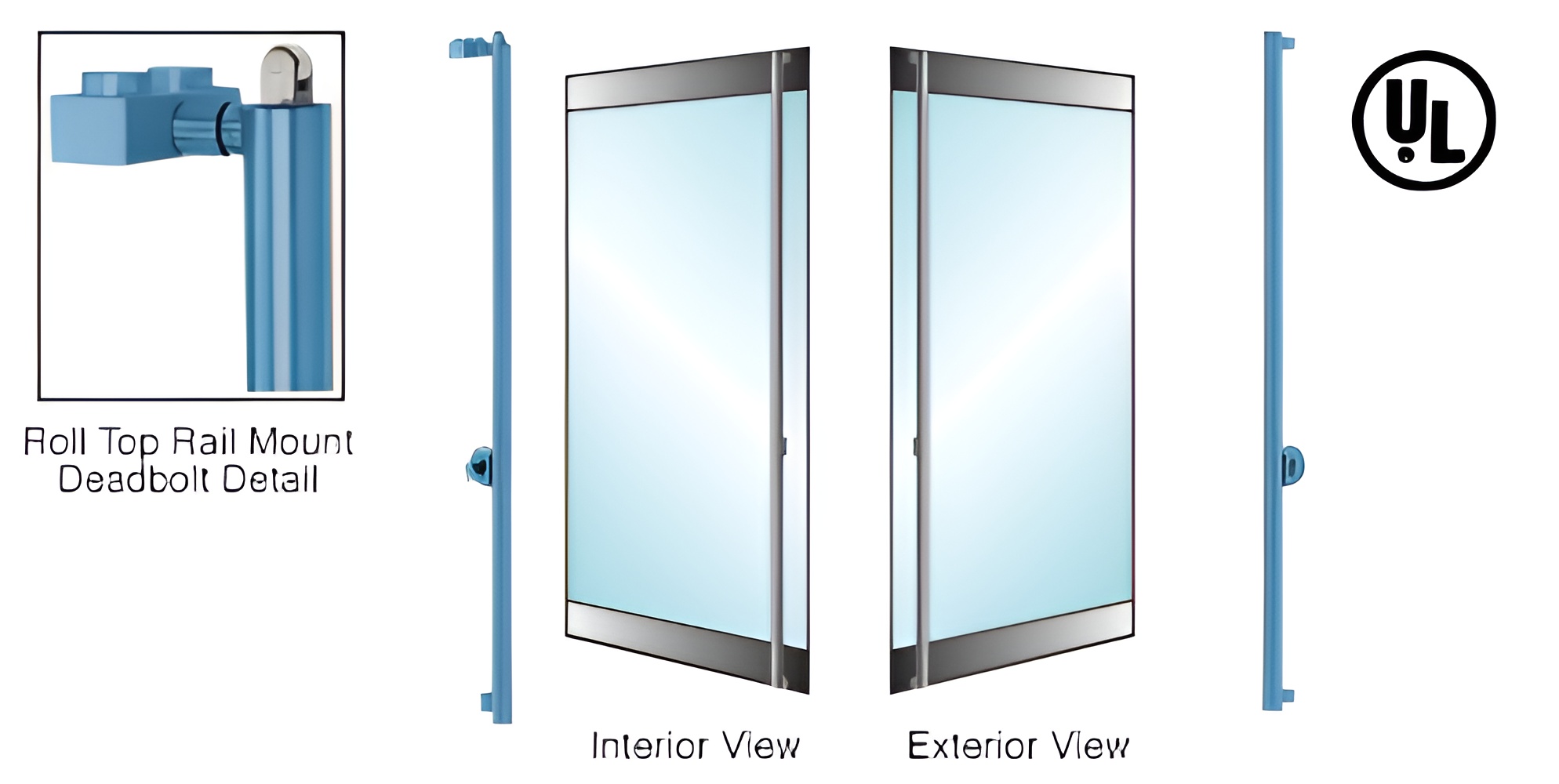

CRL 3DR130F3R1PT Blumcraft Right Hand Reverse Roll Top Rail Mount Deadbolt Handle for 3/4" Glass

Your Price: $8,519.99
Retail Price:$10,199.98
Your Savings:$1,679.99(16%)
The CRL Blumcraft Roll Top Rail Mount Handle offers secure access and contemporary design for 3/4" tempered glass doors.
Part Number : CRL_3DR130F3R1PT
Availability: 0 Ship time varies. We email you if your order is delayed.
CRL 3DR130F3R1PT Blumcraft Right Hand Reverse Roll Top Rail Mount Deadbolt Handle for 3/4" Glass

C.R. Laurence 3DR130F3R1PT Blumcraft Painted Right Hand Reverse Roll Top Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle for 3/4" Glass is engineered for elegance and security in contemporary glass door applications. Designed specifically for 3/4" (19 mm) tempered glass doors, this handle combines functionality with a sleek aesthetic, making it ideal for both single and double door installations. The UL Classified deadbolt handle features a keyed lock that provides reliable secure access from both the interior and exterior, with the option to incorporate a thumbturn for added convenience. Its ANSI/BHMA Certified quality ensures durability and performance, while the DB130 Series is compatible with electric strikes for enhanced security systems. Constructed from robust 1-1/4" (32 mm) diameter stainless steel tubing, this handle is available in multiple finishes, including brushed or polished stainless, satin, or polished brass, allowing for customization to suit any design preference. Custom sizes can ship within one to two weeks, ensuring a tailored fit for your project needs. Whether specified for a commercial or residential setting, the CRL Blumcraft handle delivers a modern touch with dependable performance, making it a perfect choice for builders and discerning homeowners alike.

Blumcraft Painted Right Hand Reverse Roll Top Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle for 3/4" Glass

  • For 3/4" (19 mm) Tempered Glass Doors
  • UL Classified
  • Easy Secure Access
  • ANSI/BHMA Certified
  • DB130 Series Can Be Used With an Electric Strike
  • Custom Sizes Ship Within One to Two Weeks
  • Available with a Wide Selection of Exterior Fixed Pull Handles on Special Order
  • Certification: ANSI/BHMA A156.16 Grade 1
  • Roll Top Handle
  • Custom Finishes Available By Special Order
  • Custom Sizes Ship Within One to Two Weeks

This CRL-Blumcraft® Glass Door Deadbolt Handle is designed to allow maximum view and a contemporary look to 3/4" (19 mm) tempered glass doors. Installations can be made on single or double doors. For your convenience, we have designed the handles so they are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 90" to 102" (2.29 to 2.59 m) high without modifications. Keyed Lock standard on interior and exterior side of handle. Optional thumbturn to replace keyed lock. Custom Headers available with your choice of pre-installed hardware. Dustproof Strike available for doors secured at bottom.


SPECIFICATIONS
Material:
  • 1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm Thick)
    Glass Thickness:
  • 3/4" (19 mm)
    Glass Fabrication: Varies
  • Please contact CRL Technical Sales

    ORDERING OPTIONS
    When ordering Deadbolt Handles you must specify:
  • Exterior Handle Option (
  • Right or Left Hand (as Viewed from the Outside)
  • Rail Mount (for Doors with Full Length Rails) or Glass Mount (for Doors with Patch Rails)
  • Single or Double Door Strike (for Single Acting Doors)
  • Brushed or Polished Stainless, Satin or Polished Brass Finish

    For more information contact CRL Commercial Products Technical Sales Department.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Ship via: No UPS - Common Carrier Only

    Application: DRS Rail Mount

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Diameter: 1-1/4 in. (32 mm)

    Finish/ Color:: Powder Coated

    Glazing Thickness: 3/4 in. (19 mm)

    Handing: Right Hand Reverse

    Keying: Cylinder / Thumb Turn

    Latching: Top

    Material: Stainless Steel (Alloy 304)

    Shipping Limitations: No UPS - Common Carrier Only

    Top Latch Type: Deadbolt Roller
