CRL 3DR130F4G1PS Blumcraft Polished Stainless Left Hand Reverse Roll Top Glass Mount DeadboltCRL 3DR130F4G1PS Blumcraft Polished Stainless Left Hand Reverse Roll Top Glass Mount Cylinder/Thumbturn 'F' Exterior Top Securing Deadbolt Handle for 3/4" Glass is the perfect solution for all-glass door applications, combining style and security. This deadbolt handle is UL Classified and ANSI/BHMA Certified, ensuring reliable performance and compliance with industry standards. Designed for 3/4" (19 mm) tempered glass doors, it features a concealed locking mechanism within the vertical tubing, providing an elegant appearance without compromising functionality. The easy secure access is complemented by a top latch roller bolt option that allows integration with electric strikes for enhanced controlled entry systems. Available in a range of finishes, including Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze, this handle can be customized upon special order to suit your project's aesthetic. Additionally, custom sizes ship within one to two weeks, ensuring timely delivery for your installations. With a diameter of 1-1/4 inches (32 mm) and made from durable Alloy 304 stainless steel, this handle offers a robust solution for your architectural needs. For seamless integration, consider pairing it with dummy handles from the same series for a cohesive look throughout your project.

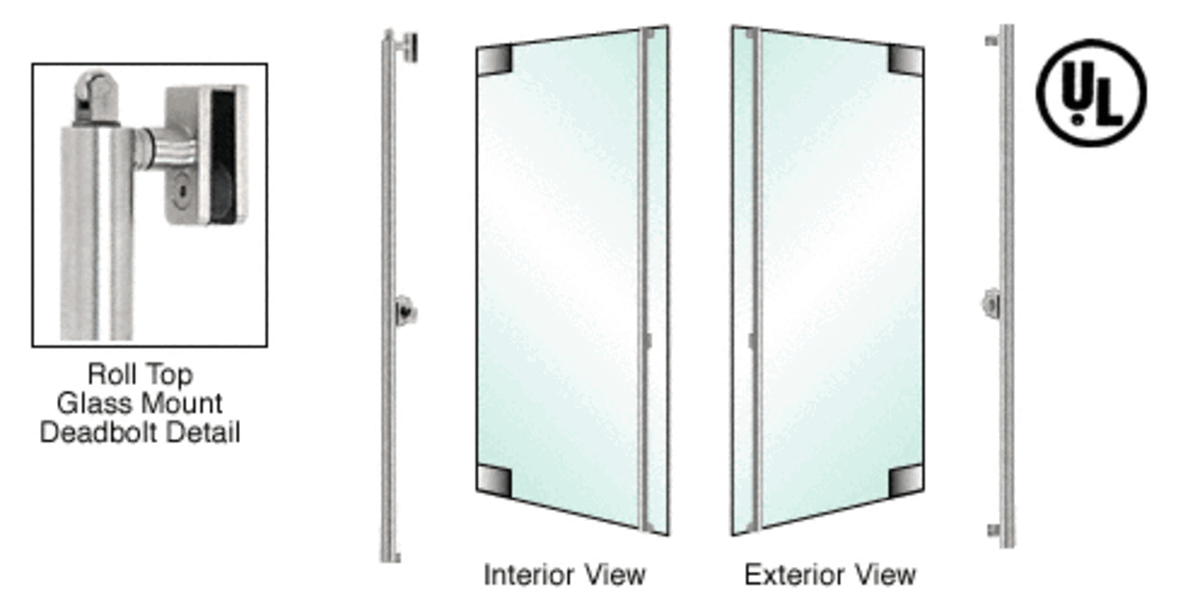

Blumcraft Polished Stainless Left Hand Reverse Roll Top Glass Mount Cylinder/Thumbturn 'F' Exterior Top Securing Deadbolt Handle for 3/4" Glass
- UL Classified
- Easy Secure Access
- ANSI/BHMA Certified
- DBR130 Series Can Be Used with an Electric Strike
- Wide Selection of Exterior Fixed Handles for 1/2" (12 mm) or 3/4" (19 mm) Tempered Glass Doors
- Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
- Custom Finishes Available by Special Order
- Custom Sizes Ship within One to Two Weeks
CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.
The locking mechanism is concealed within the vertical tubing of our deadbolt handles, providing easy access through a variety of keying options. An optional top latch roller bolt allows the use of electronic strikes for controlled entry systems. For additional information, contact our Technical Sales Department.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Ship via: No UPS - Common Carrier Only
Application: All-Glass Door Mount
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1-1/4 in. (32 mm)
Finish/ Color:: Polished Stainless Steel
Glazing Thickness: 3/4 in. (19 mm)
Handing: Left Hand Reverse
Keying: Cylinder / Thumb Turn
Latching: Top
Material: Stainless Steel (Alloy 304)
Shipping Limitations: No UPS - Common Carrier Only
Top Latch Type: Deadbolt Roller
