CRL 3E100A3RKBS Blumcraft Brushed Stainless Right Hand Keyed Access Egress Control Handle

CRL 3E100A3RKBS Blumcraft Brushed Stainless Right Hand Keyed Access Egress Control Handle

CRL 3E100A3RKBS Blumcraft Brushed Stainless Right Hand Reverse Rail Mount Keyed Access "A" Exterior Top Securing Electronic Egress Control Handle for 3/4" Glass combines security and style seamlessly. Recognized as a UL and ULC component, this handle is designed for 3/4" (19 mm) tempered glass doors, ensuring a robust yet elegant solution for access control. The innovative electronic switch concealed within the handle’s vertical tubing releases the magnetic lock when the interior actuation bar is engaged, providing a secure egress option that meets the stringent requirements of A.D.A. codes. With a slender 1-1/4" (32 mm) tube profile, it maintains a clear lower door area, crucial for compliance with accessibility standards. Available in a variety of finishes including polished and brushed stainless steel, satin and polished brass, and oil-rubbed bronze, this handle offers customization to suit any architectural style. Additionally, special orders for custom finishes and sizes can be fulfilled within one to two weeks, allowing for tailored solutions in your project. This handle is part of CRL-Blumcraft’s complete line of access control options, making it an ideal choice for maintaining the aesthetic integrity of all-glass door systems while enhancing security.

Blumcraft Brushed Stainless Right Hand Reverse Rail Mount Keyed Access "A" Exterior Top Securing Electronic Egress Control Handle for 3/4" Glass

• UL and ULC Recognized Component
• Ideal for Maintaining Security and Aesthetics
• Wide Selection of Exterior Fixed Handles for 1/2" or 3/4" (12 or 19 mm) Tempered Glass Doors
• Available in Polished and Brushed Stainless, Satin and Polished Brass, and Oil Rubbed Bronze
• Custom Finishes Available by Special Order
• Custom Sizes Ship within One to Two Weeks

CRL-Blumcraft® manufactures a complete line of Access Control Handles for your 'all-glass' door needs. We have Panic Devices, Deadbolt Handles, and Electronic Egress Control Handles in a wide variety of configurations. We can also supply you with Dummy Handles to match these devices, allowing you to maintain the same appearance throughout the project, but without the added costs.


An electronic switch concealed within the vertical tubing of our Electronic Egress Control Handle releases the Magnetic Lock at the top or bottom of the door, when the interior actuation bar is pushed. Please consult your local building codes as they relate to the acceptability of electro-magnetic locking hardware.

CRL EG100 Series Electronic Egress Control Handles are an economical method to control access into, and safe exit from, areas that call for security and still maintain the beauty and view of an 'all-glass' door. These elegant tubular devices give you maximum viewing area and a contemporary look when used on 1/2" or 3/4" (12 or 19 mm) tempered glass doors.

Like our Panic and Deadbolt Handle Line, these Handles also meet the rigid requirements imposed by the A.D.A. Codes on every manufacturer and installer of 'all-glass' doors.

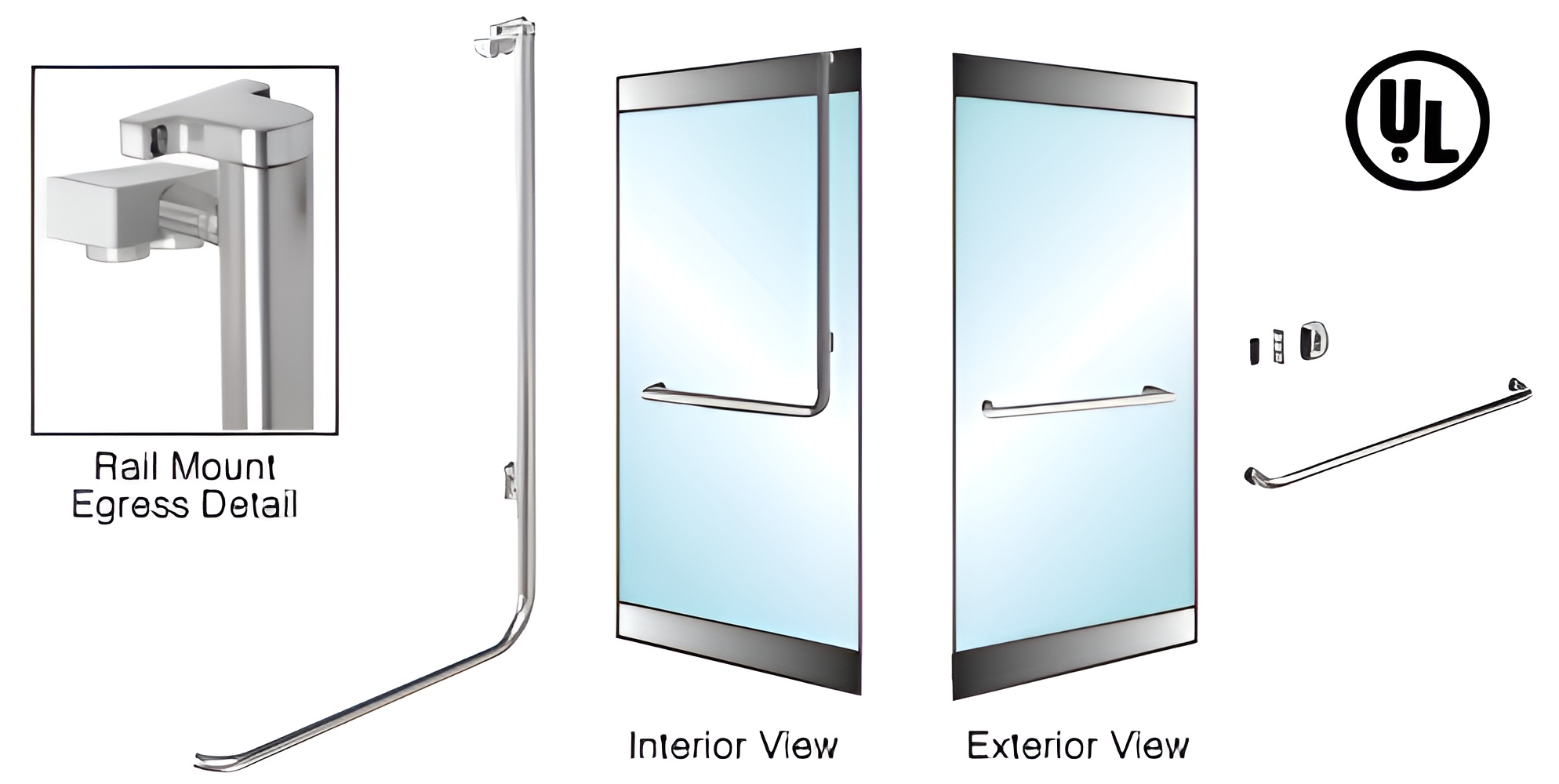

The interior portion of the device is a slender 1-1/4" (32 mm) tube stretching across the door and then gently turning upwards to the top of the door. This eliminates any interference in the lower half of the door, which must remain clear of obstructions to pass A.D.A. demands. For additional information, contact our Technical Sales Department.


Product Warning:

Must specify with or without Keyed Access Device.

Stainless Steel Advisory:

Resources

• Blumcraft Access Control Handles Specifications.doc
• Blumcraft Panic Handles System CAD Drawings.dwg
• Blumcraft Panic Handles System CAD Drawings.pdf
• CRL Stainless Steel Disclaimer
• EG100 EG110 Notice of Authorization - UL Mark
• Electronic Egress Control Handle - 100 and 110 Series Quote Request Form
• Handle Warranty
• Notice of Acceptance EG NofA.pdf
• Specifications specdrs.doc
