CRL 3E100F4RKBS Blumcraft Brushed Stainless Left Hand Keyed Access Egress Control Handle
Images may not represent actual product and finish

CRL 3E100F4RKBS Blumcraft Brushed Stainless Left Hand Keyed Access Egress Control Handle

Your Price: $10,507.99
Retail Price:$12,579.98
Your Savings:$2,071.99(16%)
CRL Blumcraft brushed stainless electronic egress handle for 3/4" glass doors, featuring left-hand reverse rail mount and keyed access.
Part Number : CRL_3E100F4RKBS
Availability: 0 Ship time varies. We email you if your order is delayed.
CRL 3E100F4RKBS Blumcraft Brushed Stainless Left Hand Keyed Access Egress Control Handle

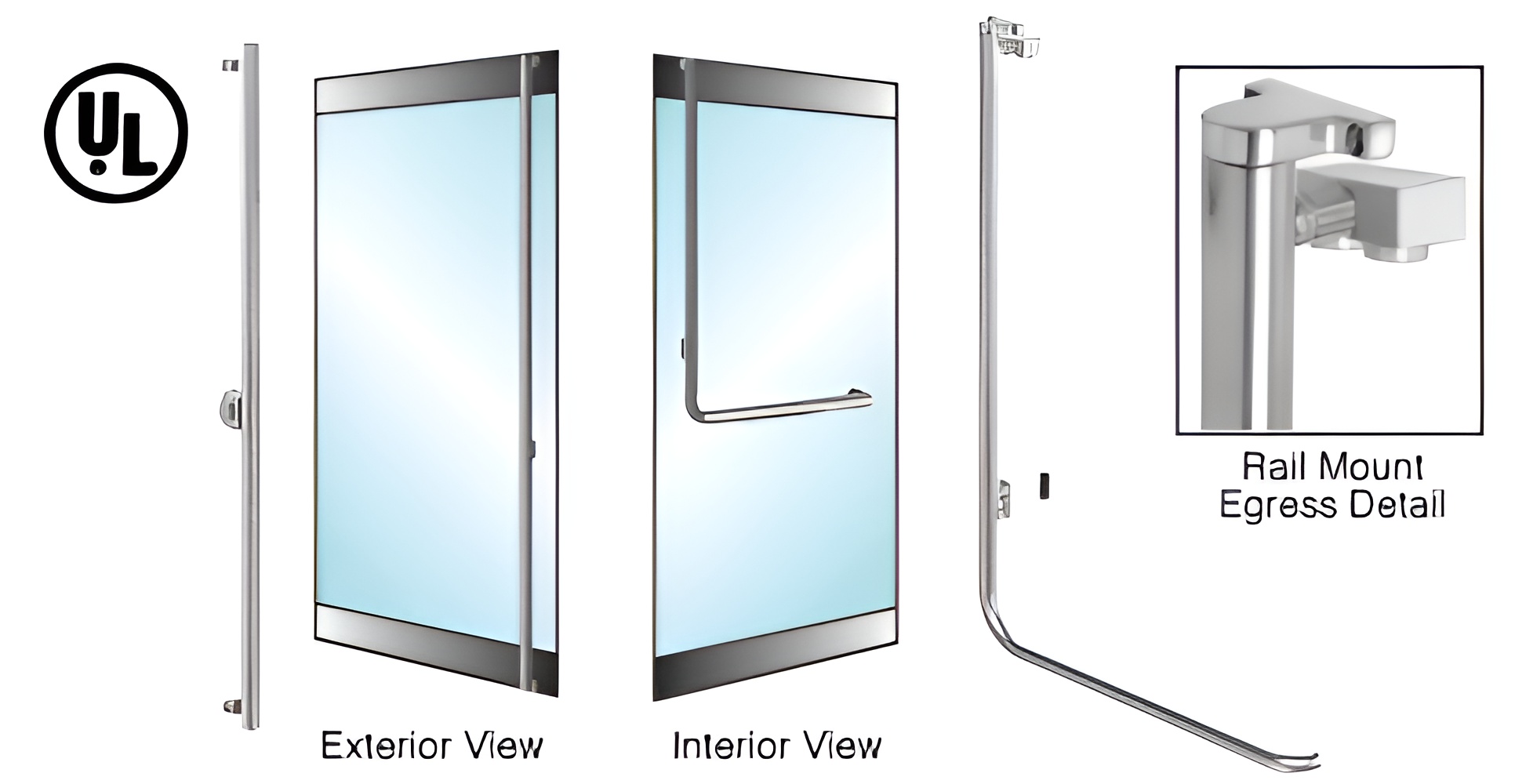

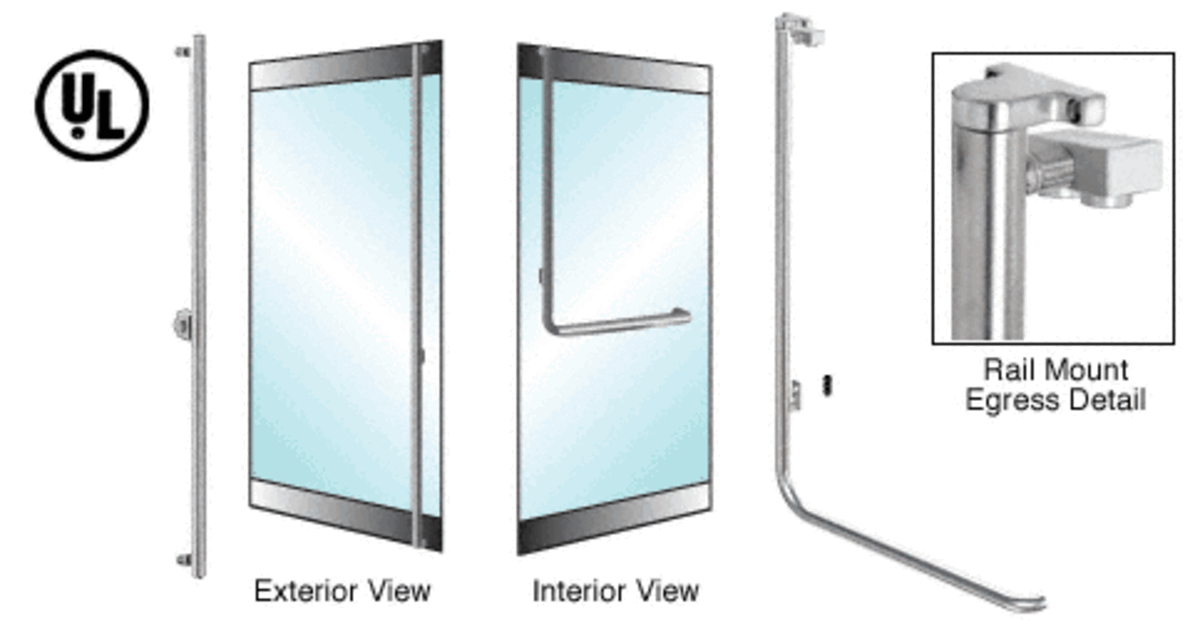

CRL 3E100F4RKBS Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access 'F' Exterior Top Securing Electronic Egress Control Handle for 3/4" Glass combines security with elegance for modern architectural designs. This handle is specially crafted to accommodate 3/4" (19 mm) tempered glass doors, making it an ideal choice for both interior and exterior applications. Featuring an electronic switch mechanism, the handle effectively releases the magnetic lock with a simple push, ensuring a secure yet accessible environment. It is designed for doors ranging from 36" to 48" wide and 90" to 102" tall, fitting seamlessly without the need for modifications. The horizontal bar is centered at a height of 42" from the bottom of a standard 96" door, adhering to Uniform Building Code requirements. Constructed from durable 304 stainless steel, the handle boasts a brushed finish that enhances its aesthetic appeal while providing corrosion resistance. The product is UL Recognized Component UL294 certified, ensuring compliance with safety standards. Additionally, customization options are available, allowing you to specify right or left-hand orientations and keyed access devices. With a commitment to quality and design, the CRL Electronic Egress Control Handle is an excellent choice for enhancing both security and style in any glass entrance.

Blumcraft Brushed Stainless Left Hand Reverse Rail Mount Keyed Access 'F' Exterior Top Securing Electronic Egress Control Handle for 3/4" Glass

  • For 3/4" (19 mm) Interior and Exterior Tempered Glass Doors
  • Custom Sizes Ship within One to Two Weeks
  • Certification: UL Recognized Component UL294

Our CRL-Blumcraft® Electronic Egress Control Handles are a more economical method to control access into and safe exit from areas that call for security, and still maintain the beauty and view of an 'all-glass' door. When the handle is pushed an electronic switch releases the magnetic lock at the top or bottom of the door. For your convenience, we have designed the handles so they are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 90" to 102" (2.29 to 2.59 m) tall without any modification. Installations can be made on single and double doors. Please consult your local building codes as they relate to electromagnetic locking hardware and applicability.


Stock Electronic Egress Control Handles are manufactured so the horizontal bar will be centered 42" (1.07 m) from the bottom of a 96" (2.44 m) door. When using the Stock Handles on shorter or taller doors the horizontal location will change accordingly, not to exceed 48" (1.22 m) or lower than 36" (914 mm) from the floor, which conforms with current Uniform Building Code requirements for hardware location. Please check local codes for additional requirements.

SPECIFICATIONS
Material:
  • 1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm Thick)
    Glass Thickness:
  • 1/2" or 3/4" (12 or 19 mm)
    Glass Fabrication: Varies
  • Please contact CRL Technical Sales

    ORDERING OPTIONS
    When ordering Electronic Egress Control Handles you must specify:
  • EG100 or EG110 Series
  • Exterior Handle Option
  • Right or Left Hand (as Viewed from the Outside)
  • Standard Retainer Plate or Optional Keyed Access Device
  • Brushed or Polished Stainless, Satin or Polished Brass Finish

    Contact CRL Technical Sales Department for specification details and pricing on these handles for 'All-Glass' Entrance Doors.


    Product Warning:

    Comes standard without Keyed Access Device.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Stainless Steel Advisory:
    Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

    • Attributes

    Ship via: No UPS - Common Carrier Only

    Application: DRS Rail Mount

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Diameter: 1-1/4 in. (32 mm)

    Exterior Access: Yes

    Finish/ Color:: Brushed Stainless Steel

    Glazing Thickness: 3/4 in. (19 mm)

    Handing: Left Hand Reverse

    Keying: Cylinder Outside Only

    Locking: Top

    Material: Stainless Steel (Alloy 304)

    Shipping Limitations: No UPS - Common Carrier Only
