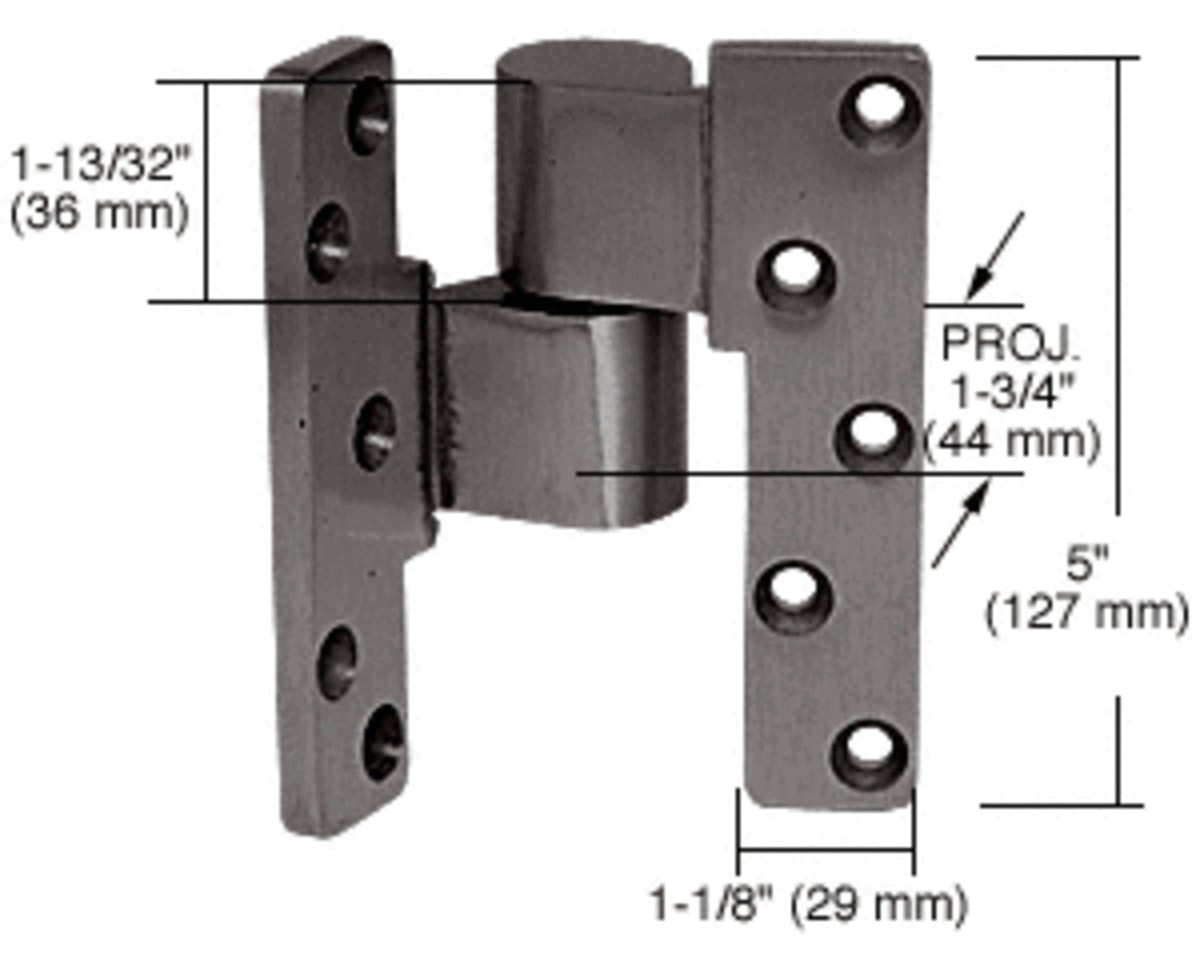

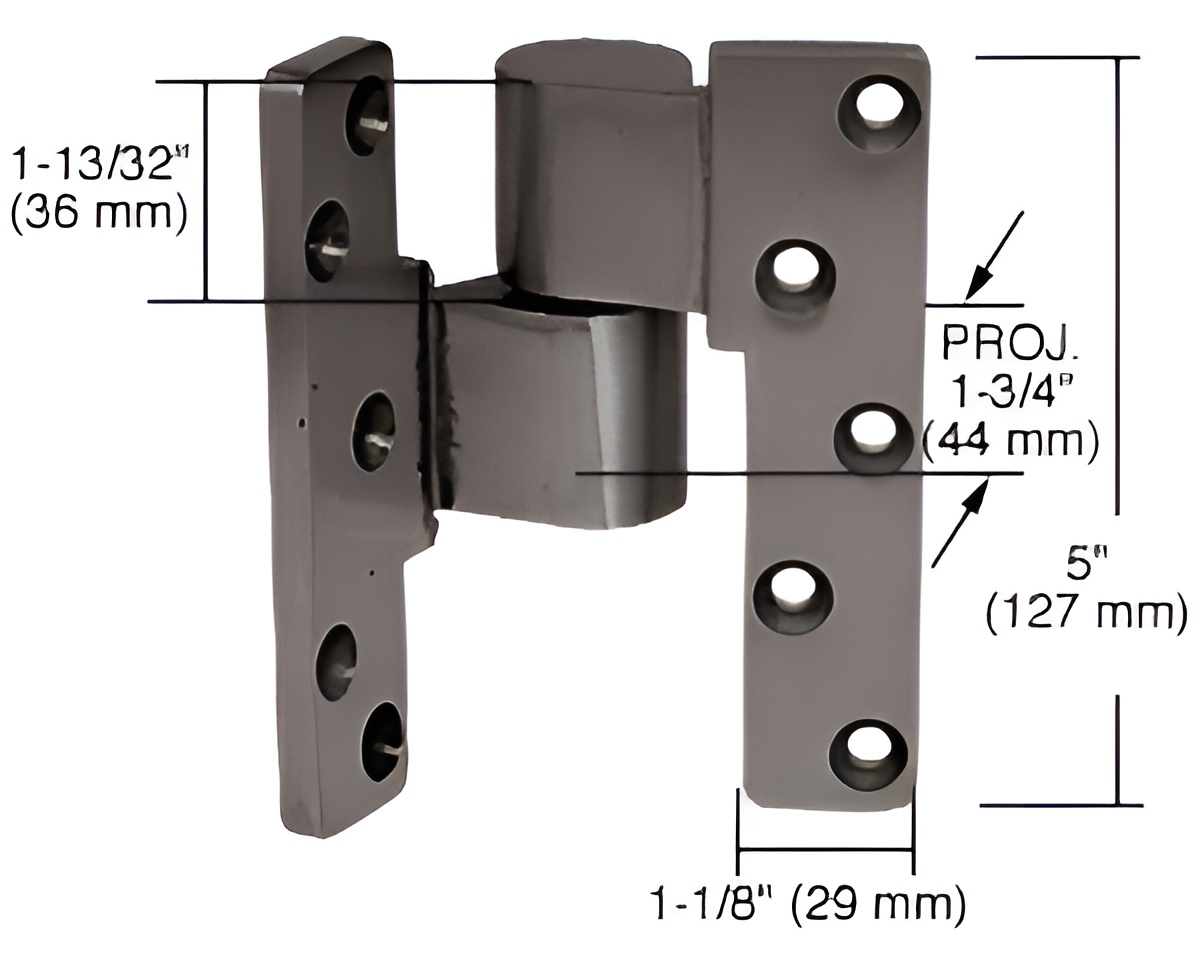

CRL 41J190L313 Dark Bronze 3/4" Left Hand Offset Pivot

CRL 41J190L313 Dark Bronze 3/4" Offset Intermediate Left Hand Pivot is expertly engineered for aluminum storefront doors, ensuring optimal door alignment. Designed specifically for standard 1-3/4" (44 mm) doors, these pivots are not load-bearing but play a crucial role in maintaining the function and aesthetics of your door system. The pivot features a fully retractable pin, allowing for quick and easy installation, while offering a vertical adjustment capability of 5/8" (16 mm) to accommodate various door heights and conditions. Constructed with a full race ball-bearing and Oilite bronze bushing, this pivot guarantees a long-lasting, maintenance-free operation. The left-hand handing and dark bronze finish provide a sleek and professional appearance that complements contemporary designs. These intermediate pivots are templated for both new installations and retrofit applications, making them versatile for any project. It’s important to note that for doors 90" (2.29 m) tall or taller, an additional intermediate pivot is recommended for every additional 30" (762 mm). Enhance the functionality and durability of your storefront with the reliable performance of the CRL 41J190L313 pivot, a trusted choice among building professionals.

Dark Bronze 3/4" Offset Intermediate Left Hand Pivot

• Intended for Use with Aluminum Storefront Doors to Maintain Door Alignment
• Fully Retractable Pin with 5/8" (16 mm) Vertical Adjustment
• Full Race Ball-Bearing and Oilite Bushing

Resources

• Detailed Drawing J190 Intermediate Pivot.pdf
