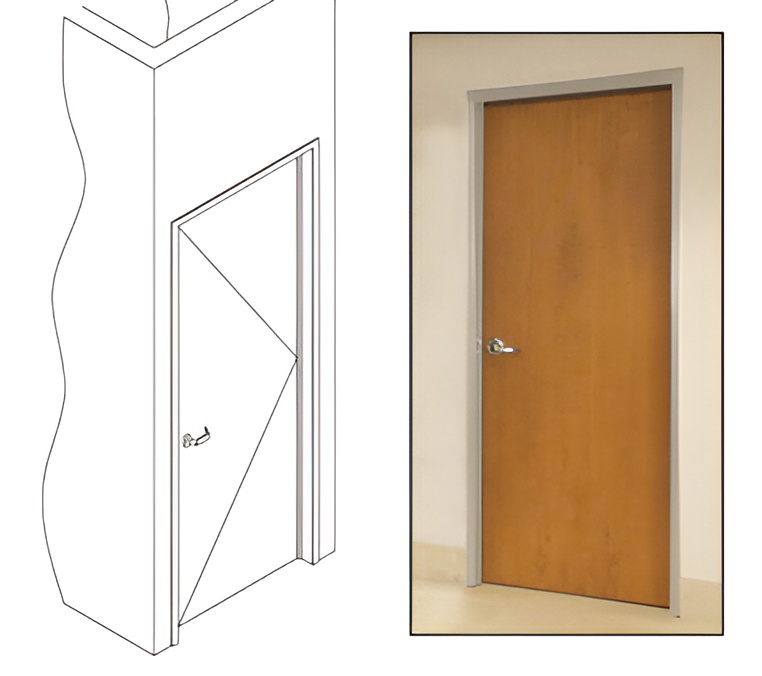

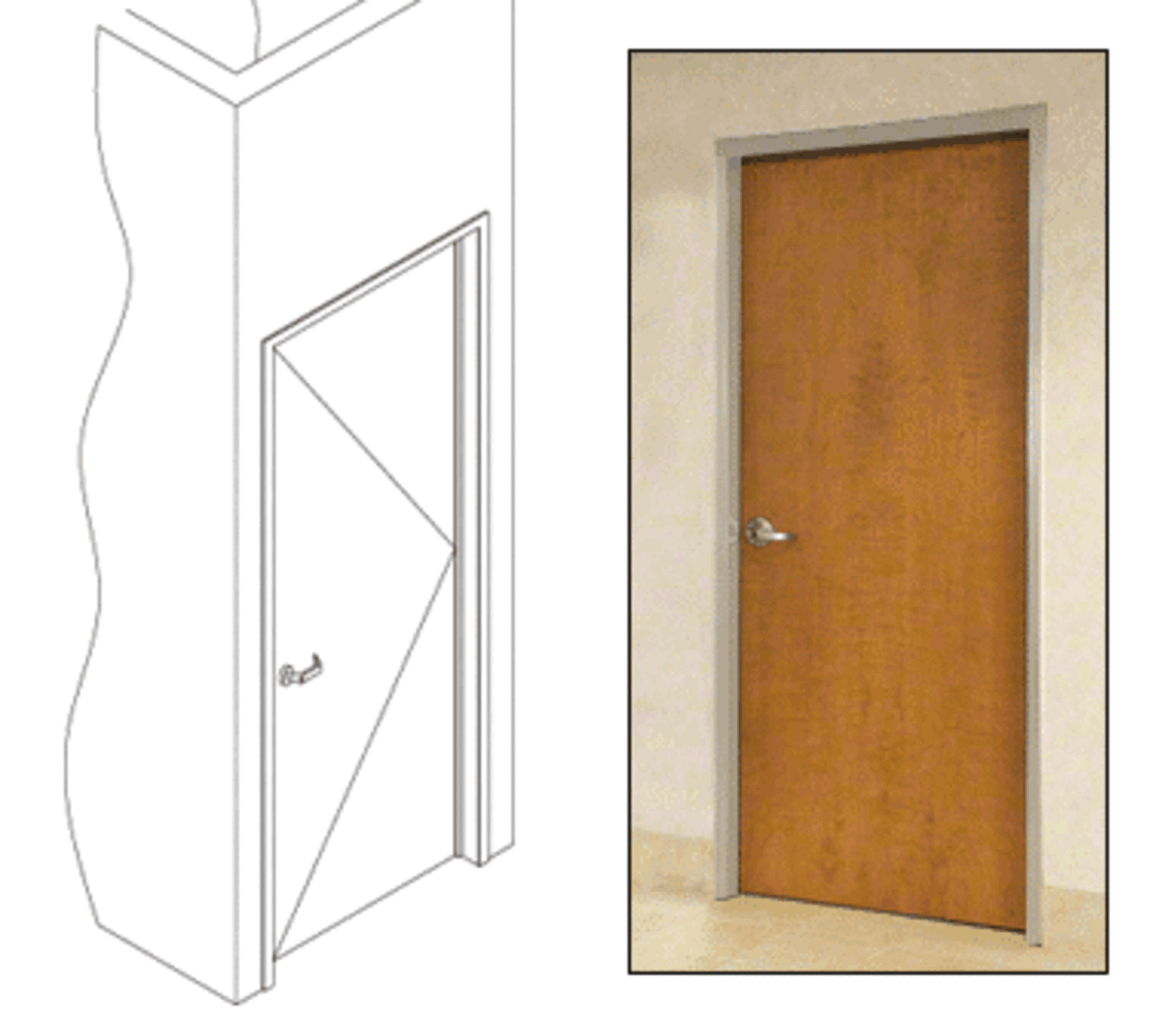

CRL 487F3811R Clear Anodized Office Partition RH 3' x 8' Single Door Frame

C.R. Laurence 487 Clear Anodized OfficeFront Office Partition RH 3'0 x 8'0 Single Door Frame offers a sophisticated and durable solution for modern office spaces. This complete framing kit is designed for single or double door applications and is available in both clear and dark bronze anodized finishes, ensuring compatibility with various design aesthetics. With six standard size configurations and custom sizes available upon special order, this frame is versatile and adaptable to your specific requirements. Prepped for 4-1/2" x 4-1/2" butt hinges, the 487 frame supports robust functionality. Frames up to 84" tall accommodate three hinges, while taller frames utilize four, ensuring stability and reliability. The standard CRL lock strike prep included with each kit enhances security and convenience. The overall dimensions of this frame measure 97-1/2" in height and 39" in width, with a door opening height of 96" and a width of 36". The frame is non-fire rated and features a trim of 1-1/2". Please note that all doors and hardware must be ordered separately, and handing of the door is determined from the "PUSH" side, making it easy to select the right configuration for your project. With C.R. Laurence's commitment to quality, this door frame is an excellent choice for any professional setting.

487 Clear Anodized OfficeFront Office Partition RH 3'0 x 8'0 Single Door Frame

• Complete Framing Kits for Single or Double Doors Are Available
• Stocked in Clear and Dark Bronze Anodized Finishes
• Six Standard Size Configurations Available
• Custom Sizes Available on Special Order
• Non-Fire Rated

Resources

• 487 AR .25 Lam X .25 Lam Acoustical Performance ASTM E90 H0258.02-303-11 05-26-2017
• 487 AR .25 Mono X .25 Mono Acoustical Performance ASTM E90 H0258.01-303-11 05-26-2017
• 487 Pair Air Leakage ANSI-UL-1784-102288099MID-003 03-30-2016
• 487 Pair Product Evaluation PEV 102288099MID-008 04-29-2016
• 487 Sealed Acoustical Performance ASTM E90 TL15-125 Test Report 02-17-2015
• 487 Series 1.5 inch Trim 20 Minute Fire Rated System CAD Drawings.dwg
• 487 Series 1.5 inch Trim 20 Minute Fire Rated System CAD Drawings.pdf
• 487 Series 1.5 inch Trim System CAD Drawings.dwg
• 487 Series 1.5 inch Trim System CAD Drawings.pdf
• 487 Series 3-Part Spec
• 487 Series Center Glazed office Partitions Overhead Concealed Closer Installation Instructions
• 487 Series Center Glazed with 1.5 inch Trim Installation Instructions
• 487 Series Center Glazed with 1.5 inch Trim Office Partition Installation Instructions
• 487 Series Job Site Guidelines
• 487 Series Office Partitions 3-Part Specification
• 487 Series Office Partitions BIM.pdf
• 487 Series Office Partitions BIM.rvt
• 487 Series Office Partitions Center Glazed with 1.5 inch Trim Job Site Guidelines
• 487 Series Product Information
• 487 Series Swing Door CAD Drawings.dwg
• 487 Series Swing Door CAD Drawings.pdf
• 487 Series Swing Door Installation Instructions
• 487 Series Swing Door Quote Request
• 487 Unsealed Acoustical Performance ASTM E90 TL15-124 Test Report 02-17-2015
• 487 Unsealed Acoustical Performance ASTM E90 TL15-124 Test Report 02-17-2015
• 487-AR .25 Lam X .25 Mono Acoustical Performance ASTM E90 H0258.03-303-11 05-26-2017
• 487-AR .25 Lam X .38 Lam Acoustical Performance ASTM E90 H0258.04-303-11 05-26-2017
