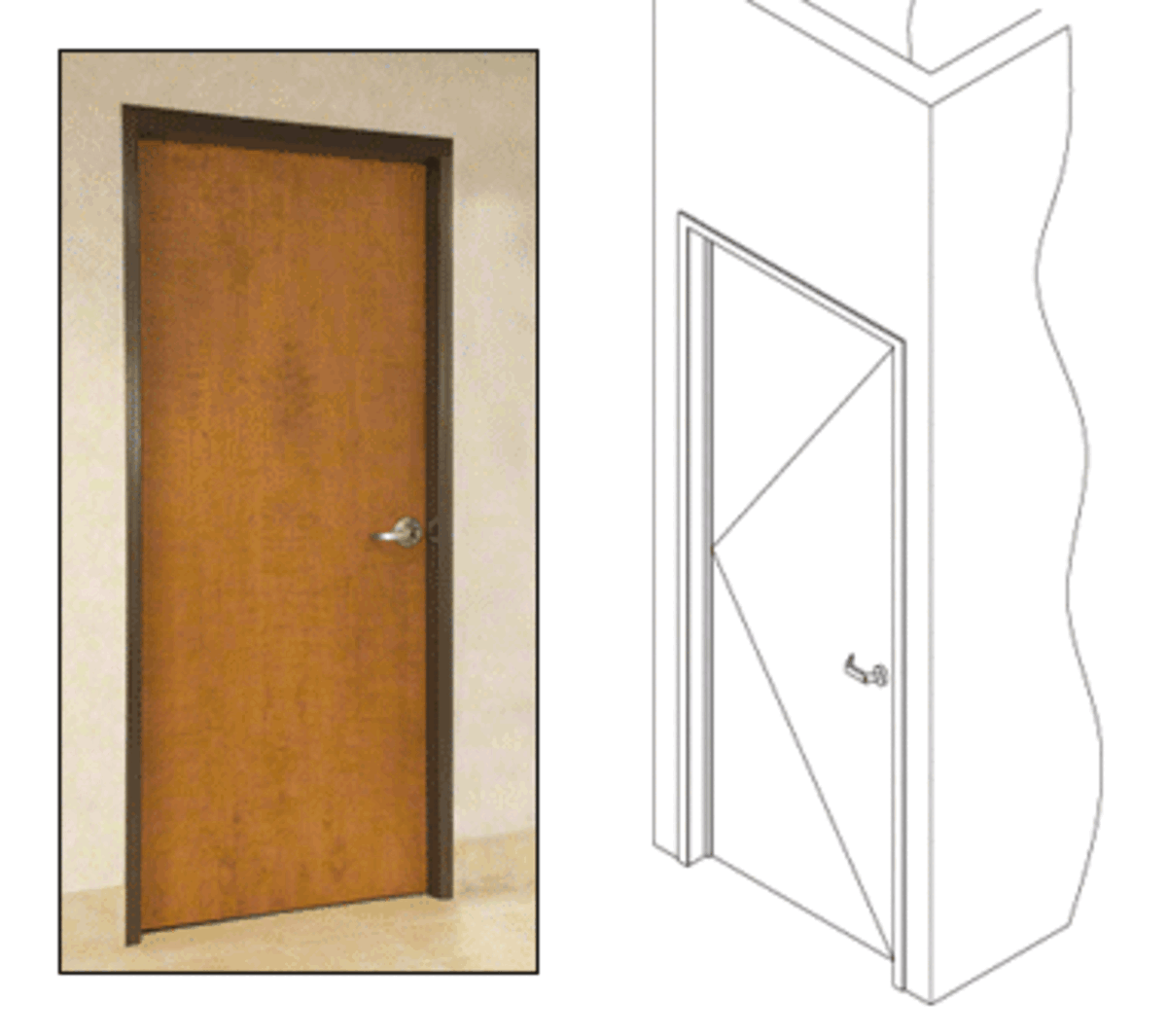

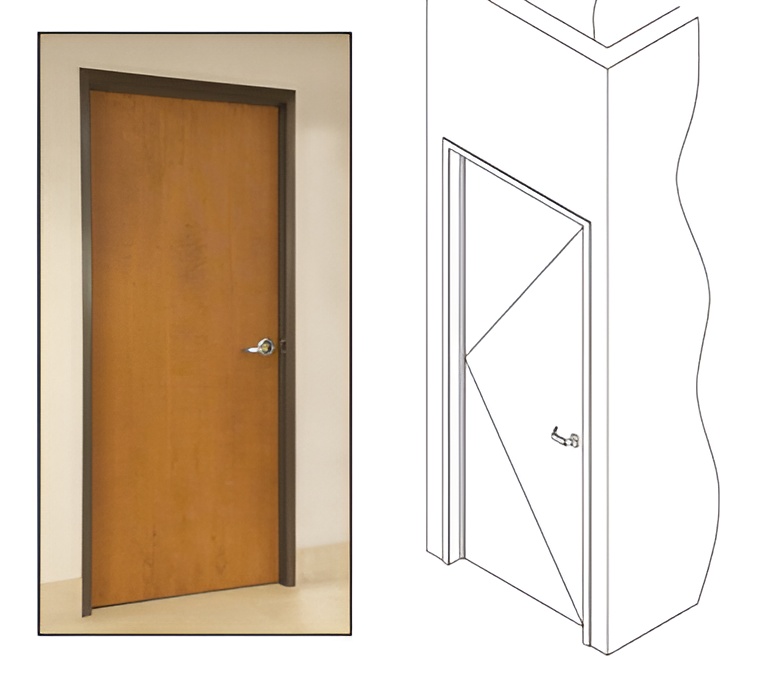

CRL 487F3822L Bronze Anodized Office Partition LH 3' x 8' Single Door Frame

C.R. Laurence 487 Bronze Anodized OfficeFront Office Partition LH 3'0 x 8'0 Single Door Frame is an essential solution for creating stylish and functional office spaces. This complete framing kit accommodates single or double door configurations and is available in attractive clear and dark bronze anodized finishes, ensuring a modern aesthetic that complements various interior designs. With six standard size options and the possibility for custom sizes on special order, this door frame provides flexibility for diverse project requirements. It is designed for use with butt hung doors and comes prepped for 4-1/2" x 4-1/2" (114 x 114 mm) butt hinges. For frames up to 84" (2.13 m) tall, three hinges are prepped, while those over this height can accommodate four hinges, ensuring robust support. The overall frame height is 97-1/2 inches (2477 mm) and width is 39 inches (991 mm), with a door opening height of 96 inches (2438 mm) and width of 36 inches (914 mm). All door and hardware must be ordered separately. Please note that the handing of the door is determined from the "PUSH" side, making installation straightforward and practical for professionals. For reliable performance in commercial settings, the C.R. Laurence 487 frame stands out as a top choice.

487 Bronze Anodized OfficeFront Office Partition LH 3'0 x 8'0 Single Door Frame

• Complete Framing Kits for Single or Double Doors Are Available
• Stocked in Clear and Dark Bronze Anodized Finishes
• Six Standard Size Configurations Available
• Custom Sizes Available on Special Order
• Non-Fire Rated

Resources

• 487 AR .25 Lam X .25 Lam Acoustical Performance ASTM E90 H0258.02-303-11 05-26-2017
• 487 AR .25 Mono X .25 Mono Acoustical Performance ASTM E90 H0258.01-303-11 05-26-2017
• 487 Pair Air Leakage ANSI-UL-1784-102288099MID-003 03-30-2016
• 487 Pair Product Evaluation PEV 102288099MID-008 04-29-2016
• 487 Sealed Acoustical Performance ASTM E90 TL15-125 Test Report 02-17-2015
• 487 Series 1.5 inch Trim 20 Minute Fire Rated System CAD Drawings.dwg
• 487 Series 1.5 inch Trim 20 Minute Fire Rated System CAD Drawings.pdf
• 487 Series 1.5 inch Trim System CAD Drawings.dwg
• 487 Series 1.5 inch Trim System CAD Drawings.pdf
• 487 Series 3-Part Spec
• 487 Series Center Glazed office Partitions Overhead Concealed Closer Installation Instructions
• 487 Series Center Glazed with 1.5 inch Trim Installation Instructions
• 487 Series Center Glazed with 1.5 inch Trim Office Partition Installation Instructions
• 487 Series Job Site Guidelines
• 487 Series Office Partitions 3-Part Specification
• 487 Series Office Partitions BIM.pdf
• 487 Series Office Partitions BIM.rvt
• 487 Series Office Partitions Center Glazed with 1.5 inch Trim Job Site Guidelines
• 487 Series Product Information
• 487 Series Swing Door CAD Drawings.dwg
• 487 Series Swing Door CAD Drawings.pdf
• 487 Series Swing Door Installation Instructions
• 487 Series Swing Door Quote Request
• 487 Unsealed Acoustical Performance ASTM E90 TL15-124 Test Report 02-17-2015
• 487-AR .25 Lam X .25 Mono Acoustical Performance ASTM E90 H0258.03-303-11 05-26-2017
• 487-AR .25 Lam X .38 Lam Acoustical Performance ASTM E90 H0258.04-303-11 05-26-2017
