CRL 487F6722 487 Bronze Anodized 6' x 7' Double Door Office Partition Frame

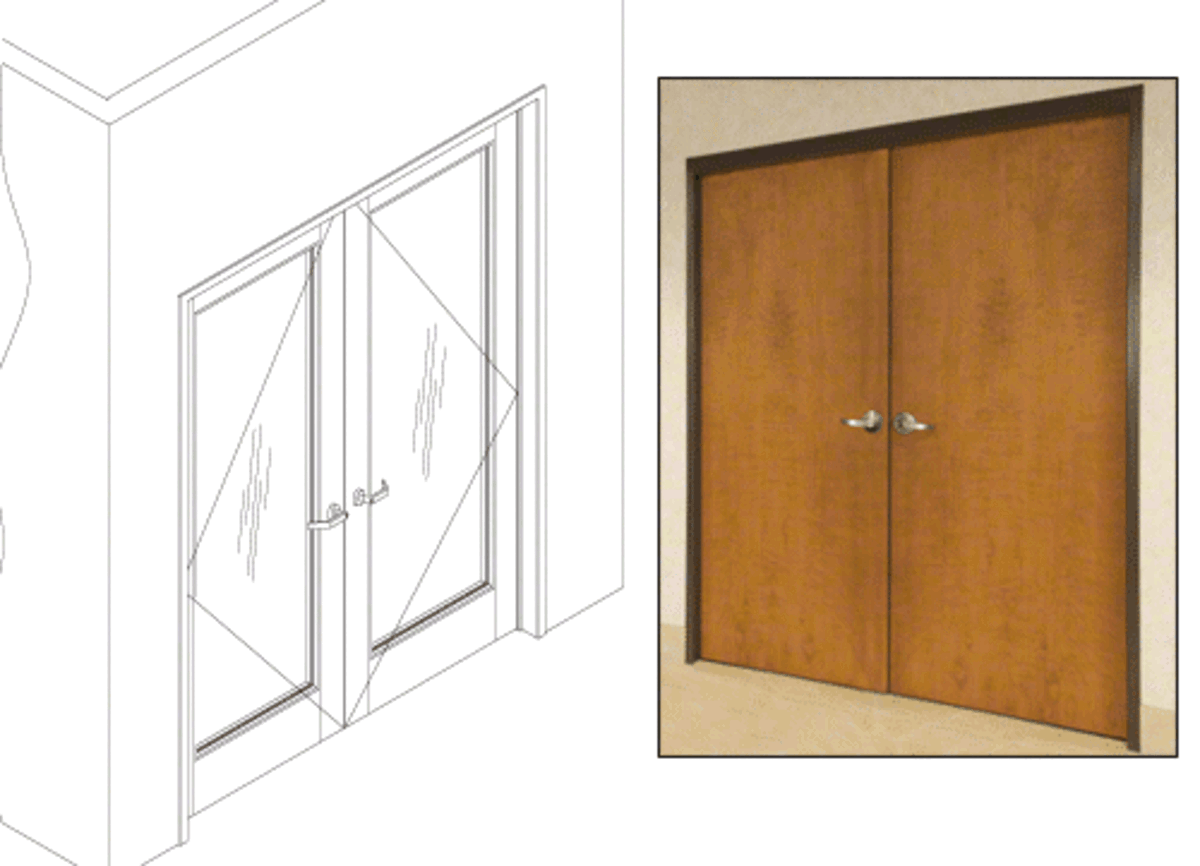

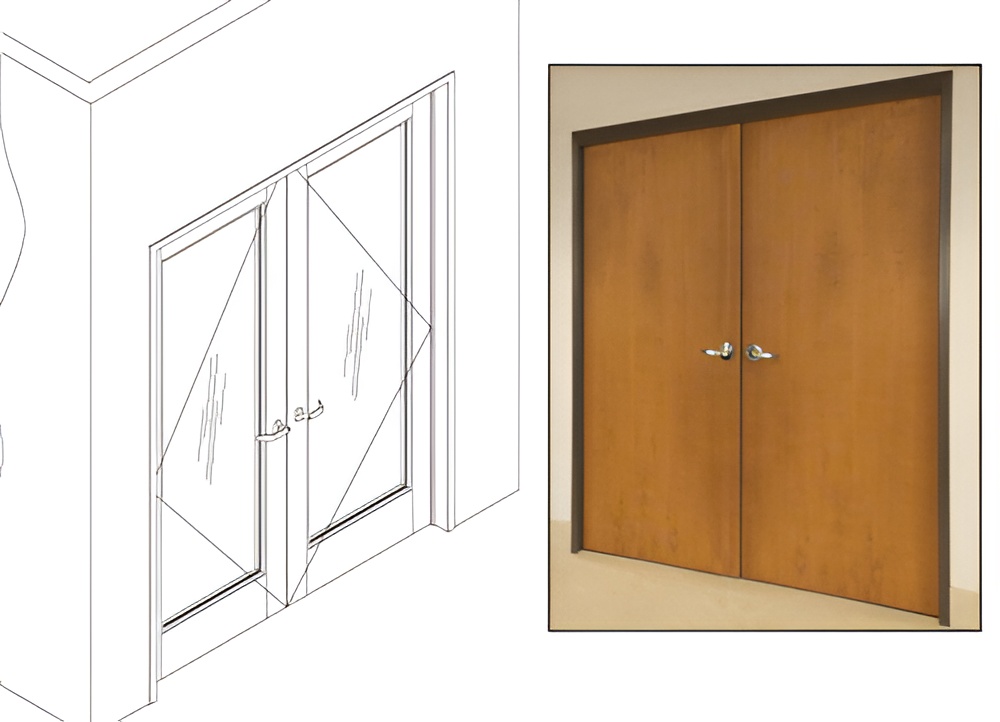

C.R. Laurence 487 Bronze Anodized OfficeFront Office Partition 6' x 7' Double Door Frame offers a versatile solution for modern office spaces. This complete framing kit, designed for double doors, is available in both clear and dark bronze anodized finishes, ensuring it complements a variety of interior styles. With its robust construction, the frame supports door openings of up to 84 inches in height and 72 inches in width, making it ideal for high-traffic areas. Each frame is prepped for 4-1/2" x 4-1/2" butt hinges, with three hinges included for heights up to 84 inches, and four for taller frames. Additionally, the kits come with standard CRL lock strike preparations, simplifying hardware installation. The 487 model is non-fire rated and can be customized through special orders, providing flexibility for unique space requirements. Whether used independently or combined with stock-length extrusions for larger openings, this partition frame enhances both functionality and aesthetics. Note that doors and hardware must be ordered separately, and the handing of doors is determined from the "PUSH" side for precise installation. For professionals seeking a reliable and stylish office partition solution, the C.R. Laurence 487 frame is the perfect choice.

487 Bronze Anodized OfficeFront Office Partition 6' x 7' Double Door Frame

• Complete Framing Kits for Single or Double Doors Are Available
• Stocked in Clear and Dark Bronze Anodized Finishes
• Six Configurations Available
• Non-Fire Rated

Resources

• 487 AR .25 Lam X .25 Lam Acoustical Performance ASTM E90 H0258.02-303-11 05-26-2017
• 487 AR .25 Mono X .25 Mono Acoustical Performance ASTM E90 H0258.01-303-11 05-26-2017
• 487 Pair Air Leakage ANSI-UL-1784-102288099MID-003 03-30-2016
• 487 Pair Product Evaluation PEV 102288099MID-008 04-29-2016
• 487 Sealed Acoustical Performance ASTM E90 TL15-125 Test Report 02-17-2015
• 487 Series 1.5 inch Trim 20 Minute Fire Rated System CAD Drawings.dwg
• 487 Series 1.5 inch Trim 20 Minute Fire Rated System CAD Drawings.pdf
• 487 Series 1.5 inch Trim System CAD Drawings.dwg
• 487 Series 1.5 inch Trim System CAD Drawings.pdf
• 487 Series 3-Part Spec
• 487 Series Center Glazed office Partitions Overhead Concealed Closer Installation Instructions
• 487 Series Center Glazed with 1.5 inch Trim Installation Instructions
• 487 Series Center Glazed with 1.5 inch Trim Office Partition Installation Instructions
• 487 Series Job Site Guidelines
• 487 Series Office Partitions 3-Part Specification
• 487 Series Office Partitions BIM.pdf
• 487 Series Office Partitions BIM.rvt
• 487 Series Office Partitions Center Glazed with 1.5 inch Trim Job Site Guidelines
• 487 Series Product Information
• 487 Series Swing Door CAD Drawings.dwg
• 487 Series Swing Door CAD Drawings.pdf
• 487 Series Swing Door Installation Instructions
• 487 Series Swing Door Quote Request
• 487 Unsealed Acoustical Performance ASTM E90 TL15-124 Test Report 02-17-2015
• 487-AR .25 Lam X .25 Mono Acoustical Performance ASTM E90 H0258.03-303-11 05-26-2017
• 487-AR .25 Lam X .38 Lam Acoustical Performance ASTM E90 H0258.04-303-11 05-26-2017
