CRL 511C 51 Series Ceiling Mount Single Slider with Fixed Panel Kit

Your Price: $1,774.99

Retail Price:$2,124.98

Your Savings:$349.99(16%)

Elevate your space with the CRL 511C Ceiling Mount Slider, featuring a Softbrake system for smooth tempered glass operation.

Part Number : CRL_511C

Availability: 26 In Stock

Quantity

Description

CRL 511C 51 Series Ceiling Mount Single Slider with Fixed Panel Kit

C.R. Laurence 511C 51 Series Ceiling Mount Single Slider with Fixed Panel Kit is designed for seamless functionality in single door applications. This innovative system features a new "Softbrake" braking mechanism that ensures smooth and controlled sliding, enhancing user experience. It accommodates 5/16" or 3/8" (8 or 10 mm) tempered glass, making it ideal for modern glass installations, while its satin anodized finish adds a touch of elegance to any space. The kit includes top track adaptors for a fixed panel, along with two track covers that elegantly conceal the top track and hanger assemblies, providing a clean and sophisticated look. For optimal control, a minimum sliding panel width of 25-9/16" (650 mm) is required for single-direction travel, and 31-1/2" (800 mm) for bi-directional control. This system supports a maximum panel weight of 100 lbs. (45.4 kg) and is designed for ceiling mounting, ensuring robust installation. However, laminated glass is not recommended for use with this system. Please consult a structural engineer to ensure compliance with site conditions and regulations during installation. The C.R. Laurence 511C provides both aesthetic appeal and practicality, making it a perfect choice for contemporary spaces.

51 Series Ceiling Mount Single Slider with Fixed Panel Kit

New "Softbrake" Braking System
For 5/16" or 3/8" (8 or 10 mm) Tempered Glass
Satin Anodized Finish

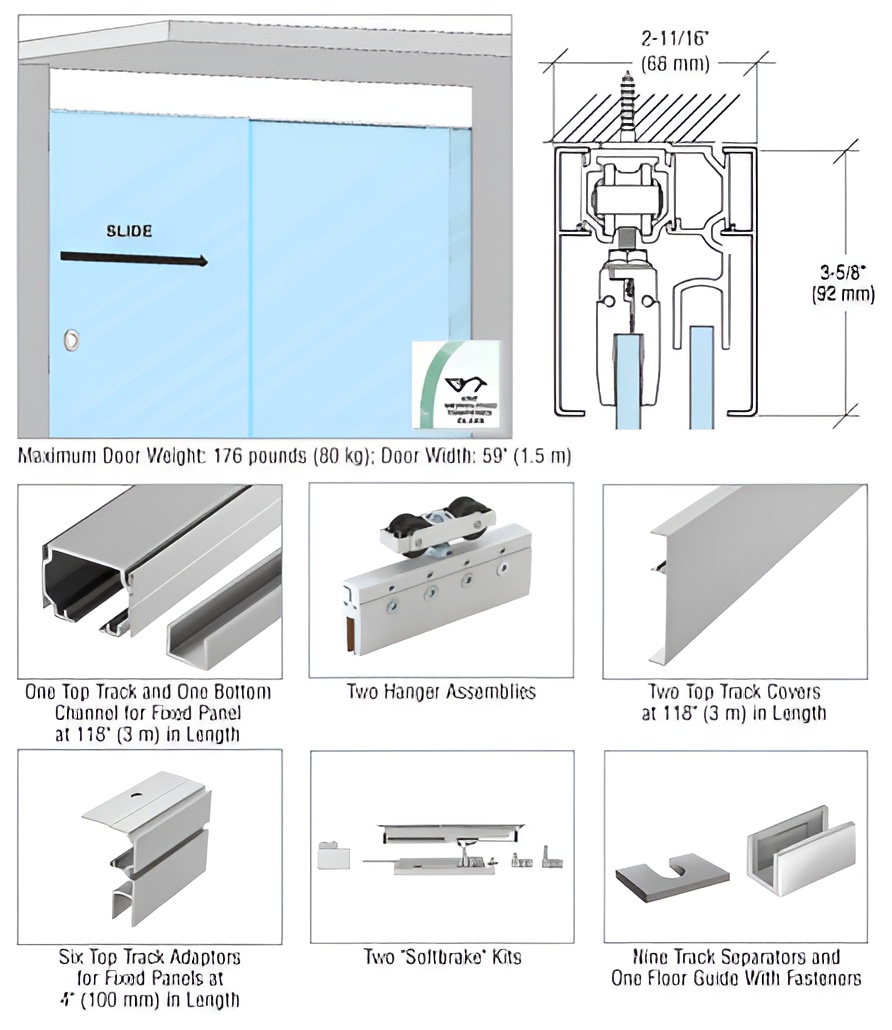

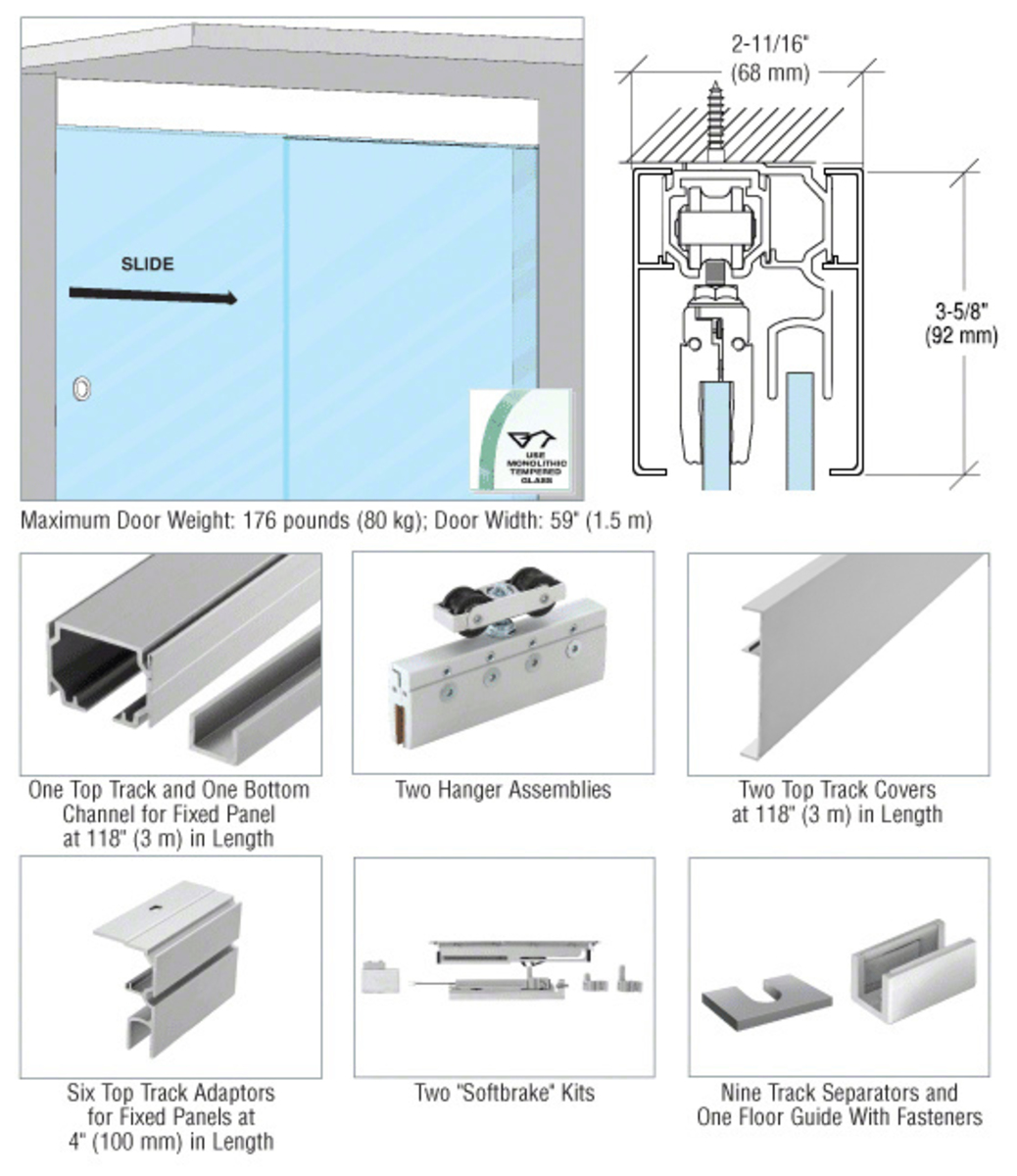

This configuration of the CRL51 Series Slider is used for single door with fixed panel applications where the top track mounts to a structural ceiling. Kit includes Top Track Adaptors for a fixed panel and two Track Covers to conceal the Top Track, Adaptors, and Hanger Assemblies, making for an attractive yet simple installation. Pull hardware ordered separately. One "Softbrake" is required for each direction of travel to be controlled per panel. Minimum sliding panel width of 25-9/16" (650 mm) for control in a single direction; 31-1/2" (800 mm) for control in both directions of travel. NOTE: Laminated glass should not be used.

Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Ship via: No UPS - Common Carrier Only

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Satin Anodized

Glazing Thickness: 5/16 in. (8 mm)

Glazing Type: Tempered Insulated

Maximum Panel Weight: 100 lbs. (45.4 kg)

Minimum Door Width: 25-9/16 in. (649 mm)

Mounting Application: Ceiling

Shipping Limitations: No UPS - Common Carrier Only

Top Hung: Yes

Track Length: 118 in. (2997 mm)
