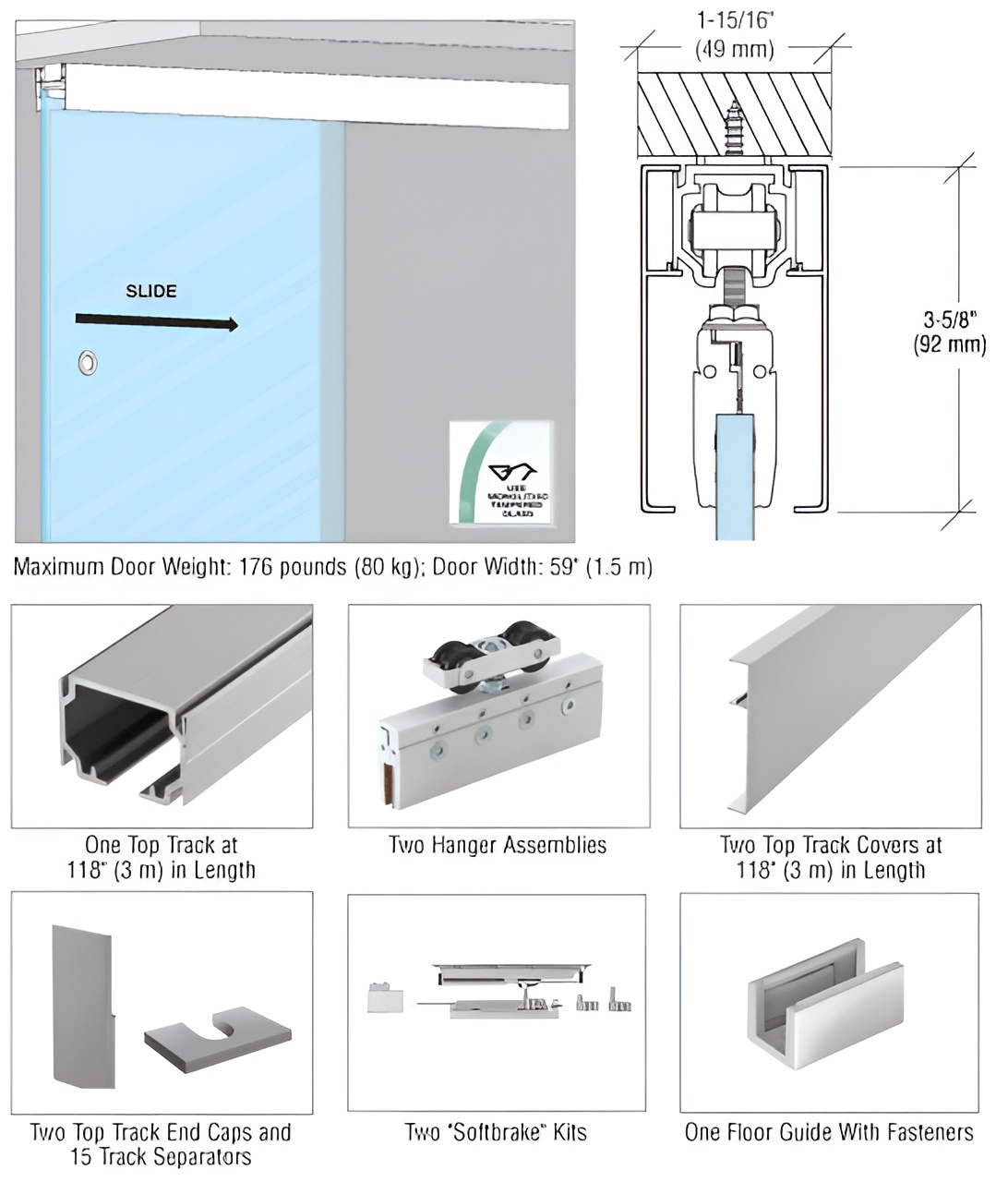

CRL 51C 51 Series Ceiling Mount Single Slider Kit offers a sophisticated solution for single door applications where aesthetics and functionality are paramount. Designed for use with 5/16" or 3/8" (8 or 10 mm) tempered glass, this kit features a robust Softbrake braking system that ensures smooth and controlled movement of the sliding panel. The top track mounts directly to a structural ceiling, providing a clean and seamless appearance. Included in the kit are two Top Track Covers that elegantly conceal the track and hanger assemblies, enhancing the visual appeal of your installation. It is important to note that pull hardware is ordered separately, and a Softbrake is required for each direction of travel per panel. For optimal performance, the minimum sliding panel width should be 25-9/16" (650 mm) for one-way control and 31-1/2" (800 mm) for bidirectional control. This system is limited to monolithic tempered glass and should not be used with laminated glass. With a maximum panel weight capacity of 100 lbs. (45.4 kg) and a track length of 118 in. (2997 mm), the CRL 51C is engineered for durability and ease of use, making it a top choice for building professionals and discerning homeowners alike.
51 Series Ceiling Mount Single Slider Kit
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Satin Anodized
Glazing Thickness: 3/8 in. (10 mm)
Glazing Type: Tempered Insulated
Maximum Panel Weight: 100 lbs. (45.4 kg)
Minimum Door Width: 25-9/16 in. (649 mm)
Mounting Application: Ceiling
Shipping Limitations: No UPS - Common Carrier Only
Top Hung: Yes
Track Length: 118 in. (2997 mm)
