CRL 5D130F6R1BS Blumcraft Brushed Stainless Left Hand Rail Mount Deadbolt Handle for 5/8
Images may not represent actual product and finish

CRL 5D130F6R1BS Blumcraft Brushed Stainless Left Hand Rail Mount Deadbolt Handle for 5/8" Glass

Your Price: $10,365.99
Retail Price:$12,409.98
Your Savings:$2,043.99(16%)
The CRL Blumcraft Brushed Stainless Deadbolt Handle offers sleek security for 5/8" glass doors, featuring a left-hand design and thumbturn option.
Part Number : CRL_5D130F6R1BS
Availability: 0 Ship time varies. We email you if your order is delayed.

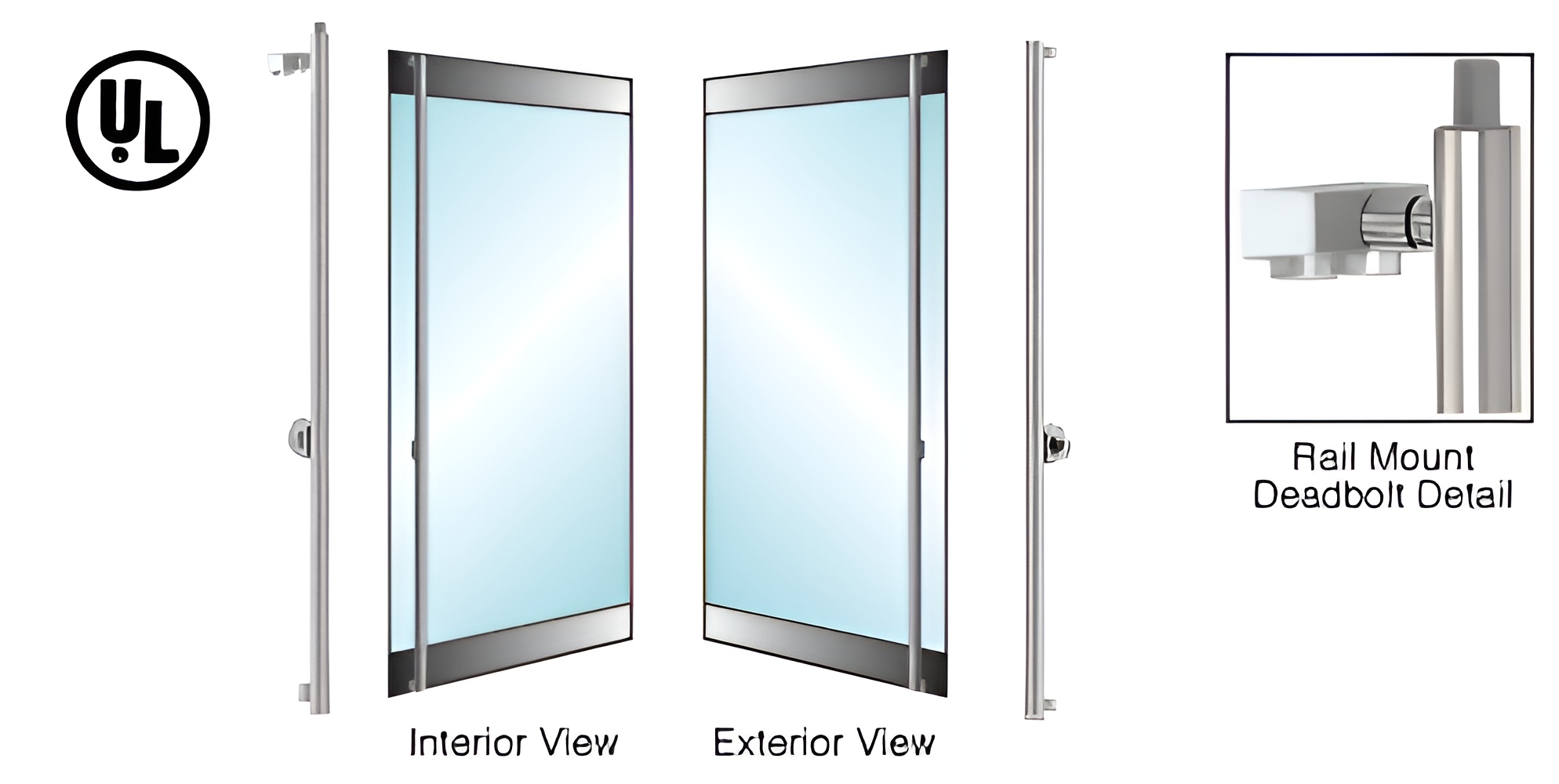

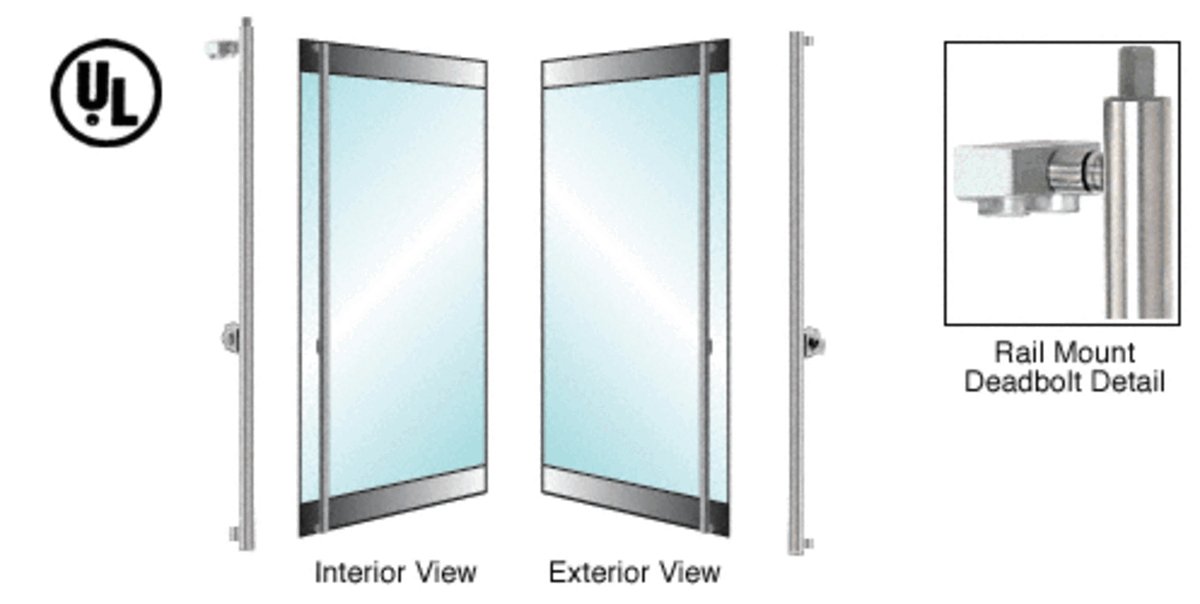

CRL 5D130F6R1BS Blumcraft Brushed Stainless Left Hand Rail Mount Deadbolt Handle for 5/8" Glass

C.R. Laurence 5D130F6R1BS Blumcraft Brushed Stainless Left Hand Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle for 5/8" Glass offers a perfect blend of security and style for your glass door installations. Designed specifically for 5/8" (16 mm) tempered glass doors, this handle is suitable for both single and double door applications, providing versatility in various settings. With a sleek 1-1/4" (32 mm) diameter and constructed from durable 304 stainless steel, the handle not only ensures a contemporary aesthetic but also promises longevity and resistance to corrosion. It features a keyed lock on both sides, enhancing security while an optional thumbturn can be employed for added convenience. The handle is ready-to-install on doors ranging from 36" to 48" (914 mm to 1.22 m) wide and 90" to 102" (2.29 to 2.59 m) high, making it a practical choice for various architectural designs. Custom header options are available with pre-installed hardware, and a dustproof strike ensures cleanliness and functionality at the door’s base. Remember, periodic maintenance is recommended to preserve the stainless steel finish. Elevate your glass door systems with this sophisticated and robust handle from C.R. Laurence.

Blumcraft Brushed Stainless Left Hand Rail Mount Cylinder/Thumbturn 'F' Top Secured Deadbolt Exterior Handle for 5/8" Glass

  • For 5/8" (16 mm) Tempered Glass Doors

This CRL-Blumcraft® Glass Door Deadbolt Handle is designed to allow maximum view and a contemporary look to tempered glass doors. Installations can be made on single or double doors. For your convenience, we have designed the handles so they are ready-to-install on 36" to 48" (914 mm to 1.22 m) wide doors ranging in height from 90" to 102" (2.29 to 2.59 m) high without modifications. Keyed Lock standard on interior and exterior side of handle. Optional thumbturn to replace keyed lock. Custom Headers available with your choice of pre-installed hardware. Dustproof Strike available for doors secured at bottom.


SPECIFICATIONS
Material:
  • 1-1/4" (32 mm) Diameter 385 Bronze or 304 Stainless Steel Tubing (2 mm Thick)
    Glass Thickness:
  • 3/4" (19 mm)
    Glass Fabrication: Varies
  • Please contact CRL Technical Sales

    ORDERING OPTIONS
    When ordering Deadbolt Handles you must specify:
  • Exterior Handle Option (
  • Right or Left Hand (as Viewed from the Outside)
  • Rail Mount (for Doors with Full Length Rails) or Glass Mount (for Doors with Patch Rails)
  • Single or Double Door Strike (for single acting doors)
  • Brushed or Polished Stainless, Satin or Polished Brass Finish

    For more information contact CRL Commercial Products Technical Sales Department.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Stainless Steel Advisory:
    Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

  • Attributes

    Ship via: No UPS - Common Carrier Only

    Application: DRS Rail Mount

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Diameter: 1-1/4 in. (32 mm)

    Finish/ Color:: Brushed Stainless Steel

    Glazing Thickness: 5/8 in. (16 mm)

    Handing: Left Hand

    Keying: Cylinder / Thumb Turn

    Locking: Top

    Material: Stainless Steel (Alloy 304)

    Shipping Limitations: No UPS - Common Carrier Only
