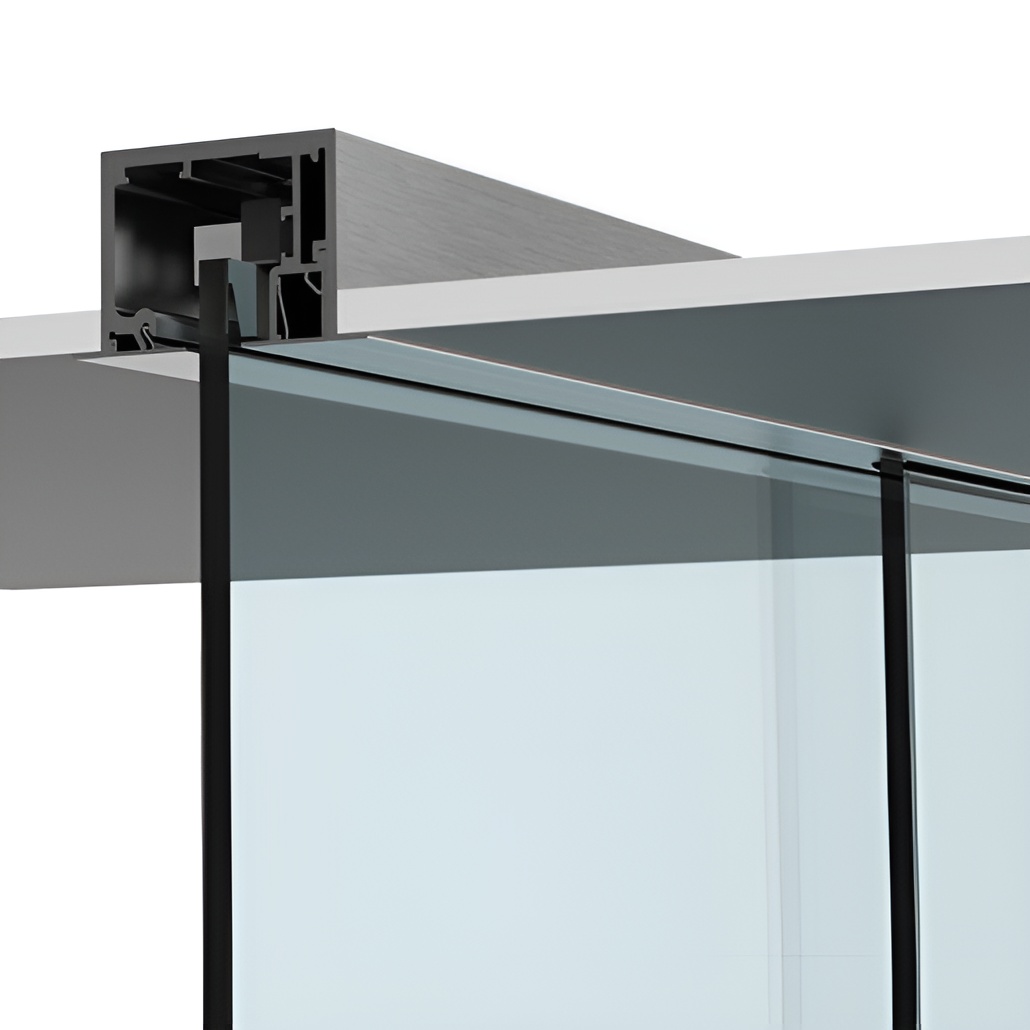

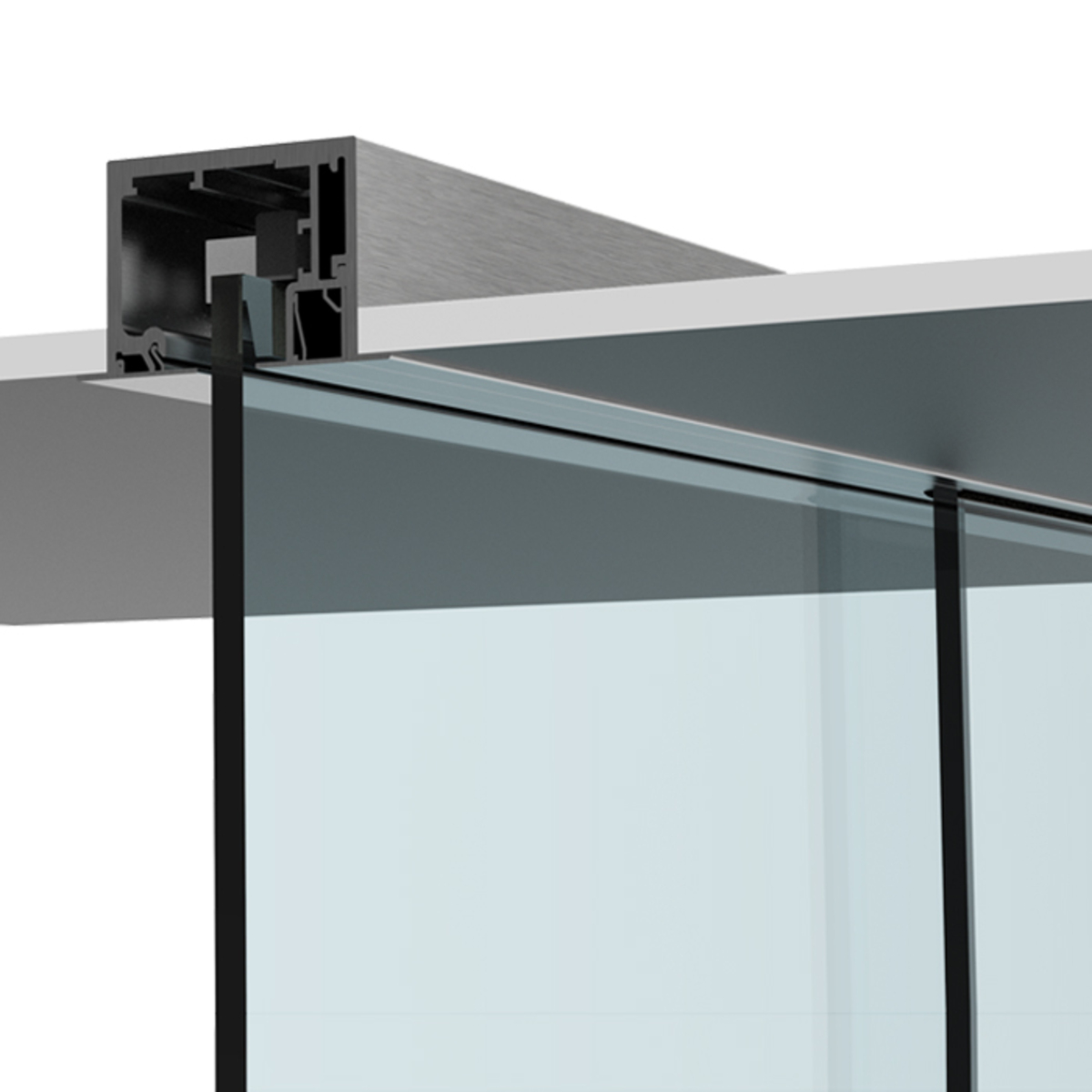

CRL 6901DBSA 690 Series Brushed Stainless Drop Ceiling Mount Sliding Door Kit

C.R. Laurence 6901DBSA 690 Series Brushed Stainless Anodized Drop Ceiling Mount Sliding Door with Fixed Panel Kit offers a refined solution for modern architectural needs. Designed specifically for 3/8" to 1/2" (10 to 12 mm) tempered glass, this sliding door kit can support doors weighing up to 330 pounds (150 kg), ensuring robust functionality without compromising aesthetics. The kit includes a generous 118" (3 m) track, allowing for smooth operation and ease of installation. With up to 1/4" (6 mm) of vertical adjustment in the rollers, aligning the door post-installation is a hassle-free process. Ideal for both residential and commercial settings, it accommodates a minimum sliding panel width of 23-5/8" (600 mm), making it versatile for various applications. Available in a stunning brushed stainless anodized finish, the 690 Series kits can also be customized with different architectural finishes upon special order. Each kit contains essential components, including top hangers, roller stops, end caps, door edge guards, and fasteners, providing everything needed for a complete installation, minus the tempered glass and pull hardware. CRL Technical Sales is on hand for any selection or installation assistance, ensuring a seamless experience from start to finish.

690 Series Brushed Stainless Anodized Drop Ceiling Mount Sliding Door with Fixed Panel Kit

• Kits Intended for 3/8" To 1/2" (10 To 12 mm) Tempered Glass
• Can Accommodate Properly Installed Doors Weight Up to 330 Pounds (150 kg)
• Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
• Track Length is 118" (3 m)
• Use Monolithic Tempered Glass

CRL 690 Series Sliding Door Kits are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite and with or without the "Softbrake" braking system. All come with everything you need except the tempered glass and pull hardware. Kits are available in satin anodized, brushed stainless anodized, and matte black finishes with a special order option to clad or powder paint in many architectural finishes. Contact CRL Technical Sales for Commercial Products for kit selection or installation assistance.

Resources

• 690 695 Series Grid System Installation Instructions
• 690 695 Series Sliding Door Product Information
• 690 695 Series Sliding Door System 3-Part Spec
• 690 695 Series Sliding Door System CAD Drawings.dwg
• 690 695 Series Sliding Door System CAD Drawings.pdf
• 690 Series Sliding Door Installation Instructions
