CRL 690BSA 690 Series Brushed Stainless Wall/Ceiling Mount Sliding Door Kit

C.R. Laurence 690BSA 690 Series Brushed Stainless Anodized Wall or Ceiling Mount Sliding Door Kit offers a sophisticated solution for modern spaces. Designed for use with 3/8" to 1/2" (10 to 12 mm) tempered glass, this kit can support door weights of up to 330 pounds (150 kg), making it ideal for heavy-duty applications. The 118" (3 m) track provides ample length for seamless operation, while the rollers allow for up to 1/4" (6 mm) of vertical adjustment, ensuring precise door alignment post-installation. This versatility is complemented by options for wall mount, ceiling mount, or drop ceiling mount configurations, with various finishes including satin anodized, brushed stainless anodized, and matte black. Included in the kit are essential components such as top hangers, roller stops, end caps, door edge guards, and a bottom guide, enabling a comprehensive installation experience. Note that tempered glass and pull hardware are not included. For those looking to upgrade their existing CRL690 Series installations, the CRL695 Series Softbrake kits are compatible and provide additional functionality. With its robust design and aesthetic appeal, the C.R. Laurence 690BSA kit is an excellent choice for both building professionals and discerning homeowners.

690 Series Brushed Stainless Anodized Wall or Ceiling Mount Sliding Door Kit

• Kits Intended for 3/8" To 1/2" (10 To 12 mm) Tempered Glass
• Can Accommodate Properly Installed Doors Weight up to 330 Pounds (150 kg)
• Rollers Have up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
• Track Length is 118" (3 m)
• Use Monolithic Tempered Glass

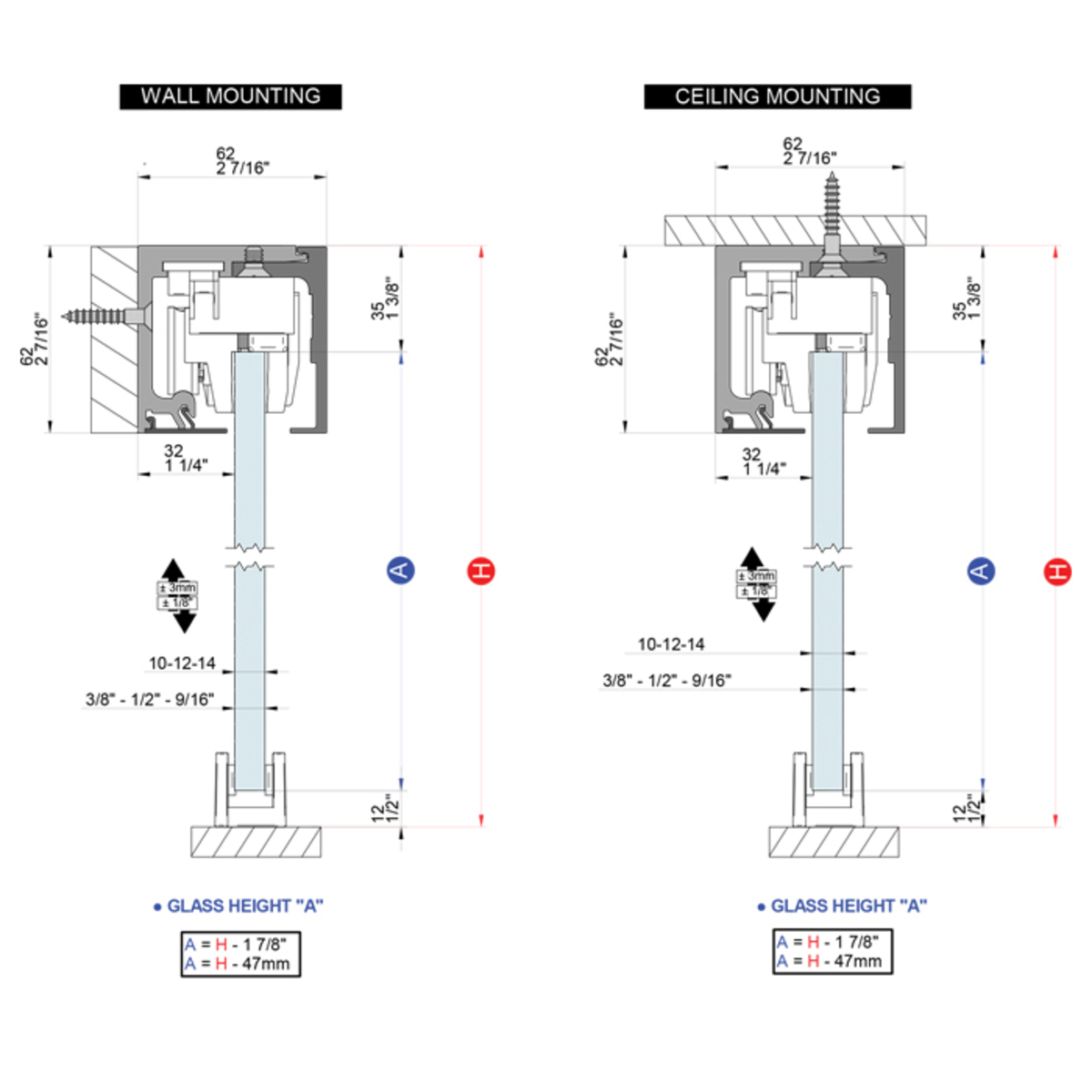

CRL 690 Series Sliding Door Kits are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite and with or without the "Softbrake" braking system. All come with everything you need except the tempered glass and pull hardware. Kits are available in satin anodized, brushed stainless anodized, and matte black finishes with a special order option to clad or powder paint in many architectural finishes. Contact CRL Technical Sales for Commercial Products for kit selection or installation assistance.

Resources

• 690 695 Series Grid System Installation Instructions
• 690 695 Series Sliding Door Product Information
• 690 695 Series Sliding Door System 3-Part Spec
• 690 695 Series Sliding Door System CAD Drawings.dwg
• 690 695 Series Sliding Door System CAD Drawings.pdf
• 690 Series Sliding Door Installation Instructions
