CRL 690MBL 690 Series Matte Black Sliding Door Kit - Wall/Ceiling Mount

C.R. Laurence 690MBL 690 Series Matte Black Wall or Ceiling Mount Sliding Door Kit is designed for modern spaces, offering both functionality and style. This kit accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass panels, supporting doors weighing up to 330 pounds (150 kg). The track measures an impressive 118" (3 m) in length, ensuring smooth operation and a seamless aesthetic. One of the standout features of this sliding door kit is the vertical adjustment capability of the rollers, which allows for up to 1/4" (6 mm) of customization post-installation, aiding in precise door alignment. Available in a sleek matte black finish, this kit not only enhances the look of your interior but also integrates seamlessly with various design themes. The comprehensive kit includes everything needed for installation-track, top hangers, roller stops, end caps, door edge guards, fasteners, and a bottom guide-except for the tempered glass and pull hardware. With options for wall mount, ceiling mount, and drop ceiling mount configurations, the versatility of the 690 Series makes it an ideal choice for both residential and commercial applications. For further customization, special order finishes are available to suit specific architectural needs.

690 Series Matte Black Wall or Ceiling Mount Sliding Door Kit

• Kits Intended for 3/8" To 1/2" (10 To 12 mm) Tempered Glass
• Can Accommodate Properly Installed Doors Weighing Up to 330 Pounds (150 kg)

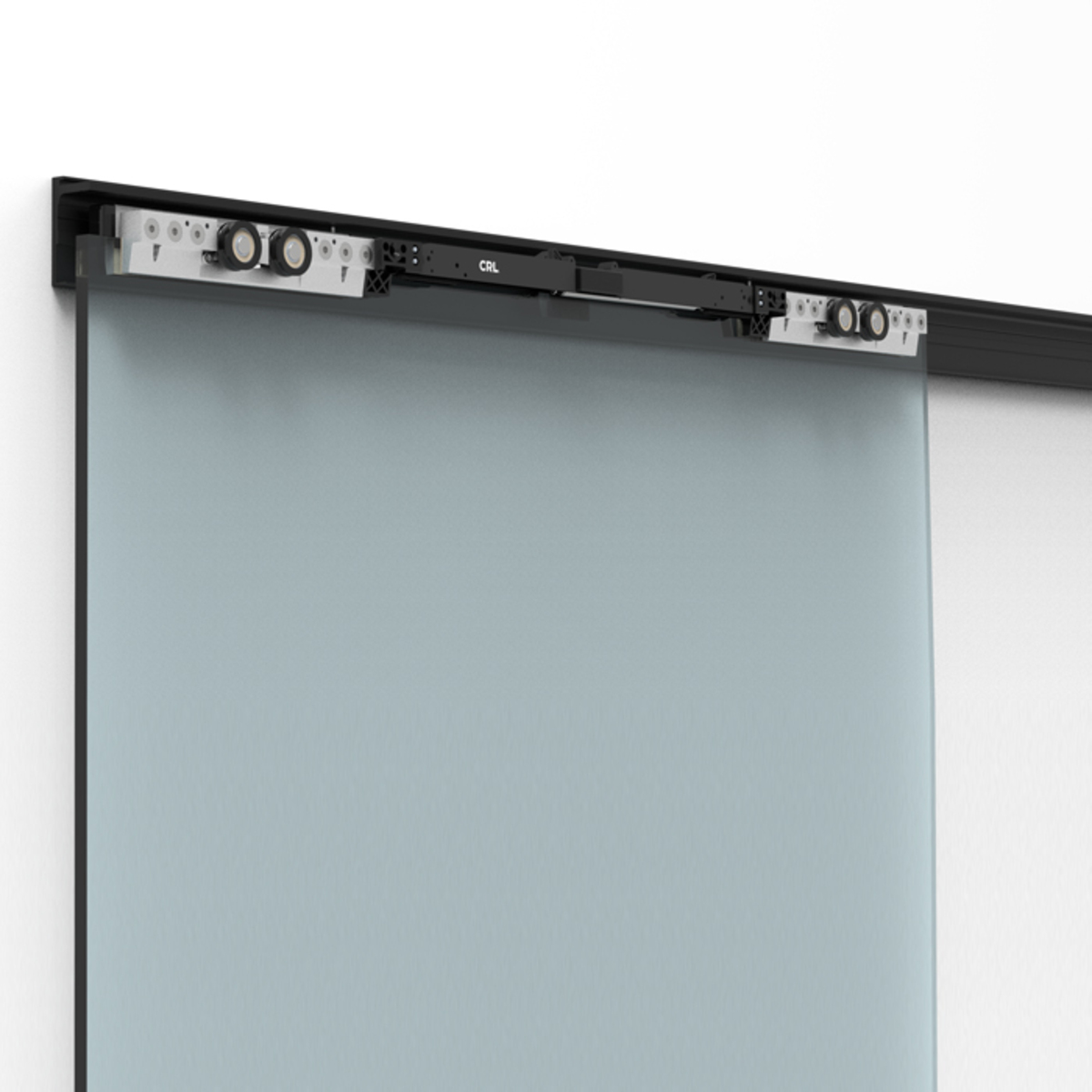

• Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
• Track Length is 118" (3 m)
• Use Monolithic Tempered Glass

Resources

• 690 695 Series Grid System Installation Instructions
• 690 695 Series Sliding Door Product Information
• 690 695 Series Sliding Door System 3-Part Spec
• 690 695 Series Sliding Door System CAD Drawings.dwg
• 690 695 Series Sliding Door System CAD Drawings.pdf
• 690 Series Sliding Door Installation Instructions
