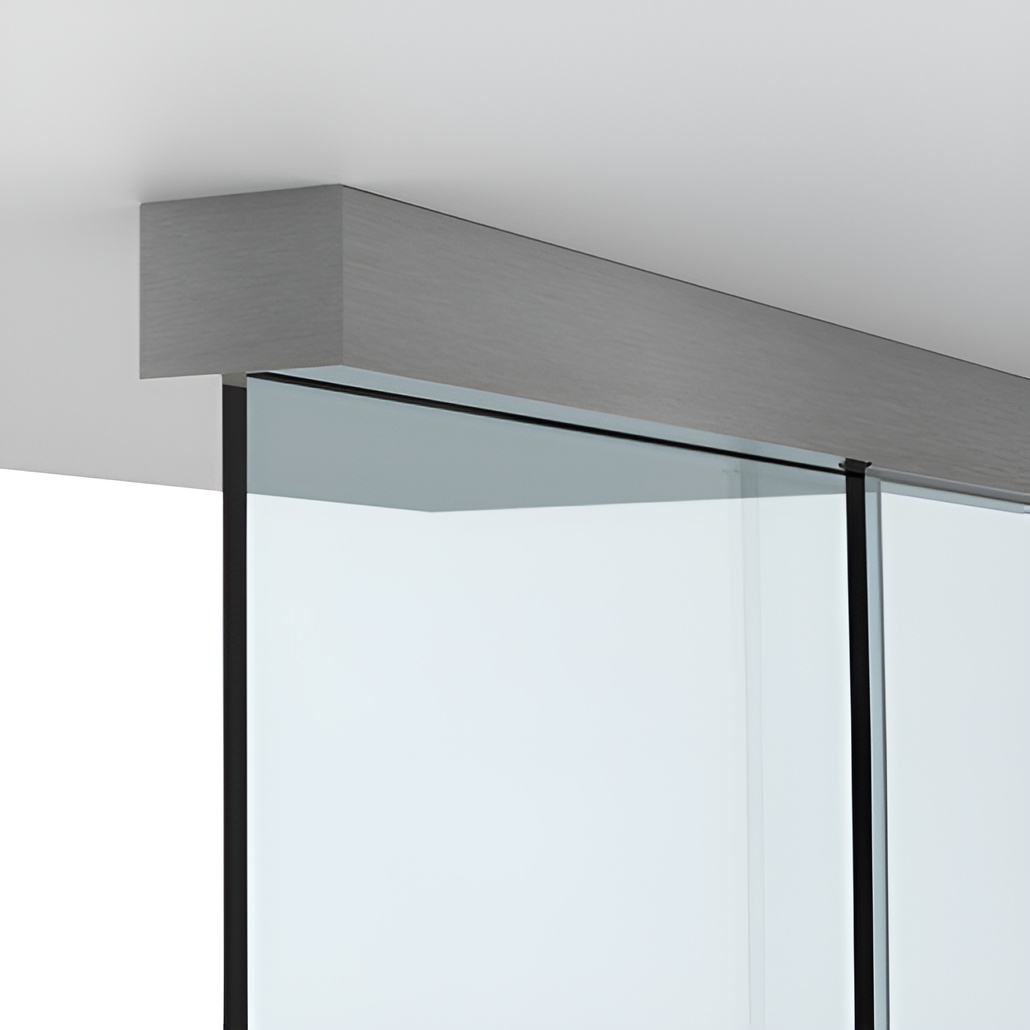

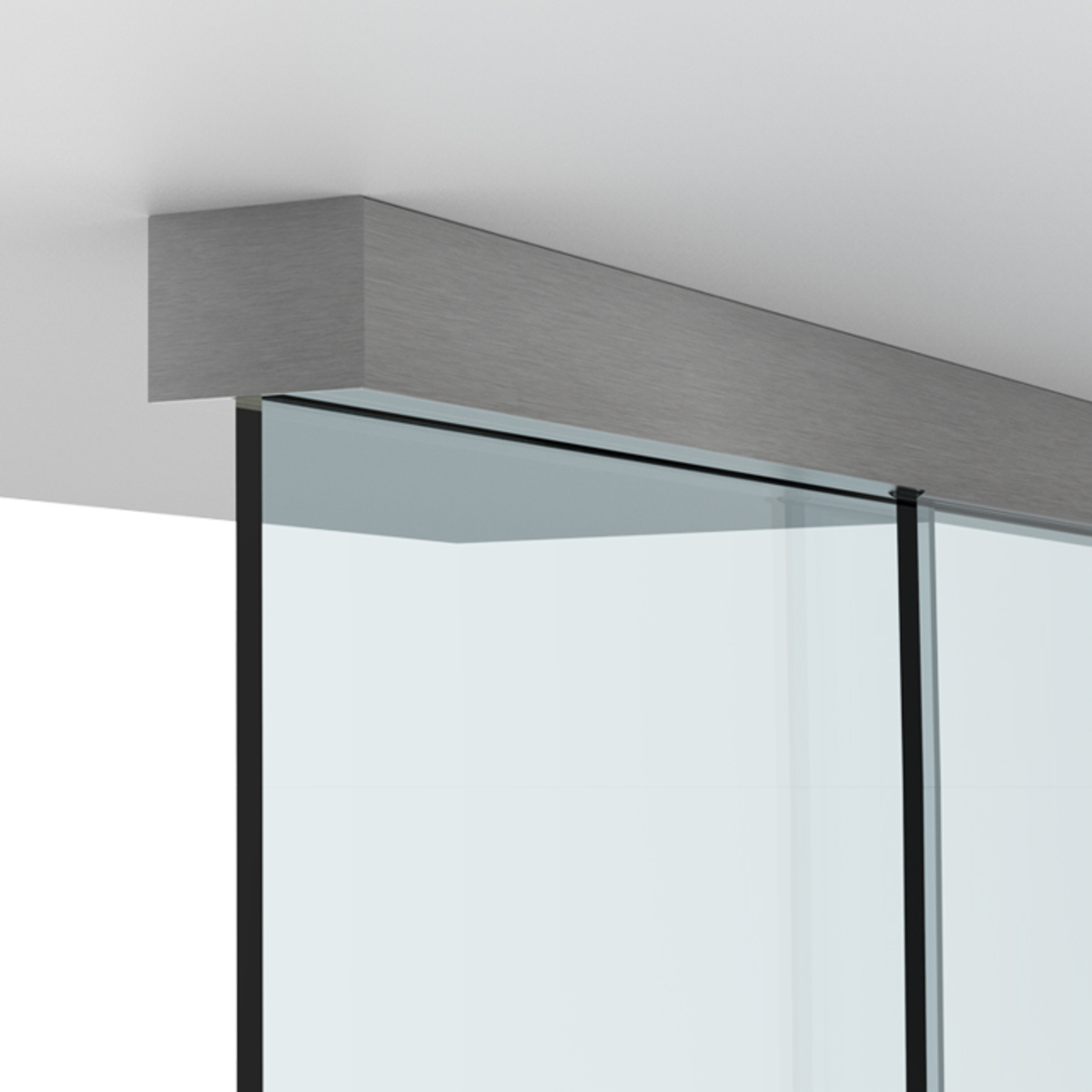

CRL 6951BSA 695 Series Brushed Stainless Sliding Door Kit with Softbrake System

C.R. Laurence 6951BSA 695 Series Brushed Stainless Anodized Wall or Ceiling Mount Sliding Door with Fixed Panel Kit offers a sophisticated solution for modern spaces. This kit is designed to accommodate 3/8" to 1/2" (10 to 12 mm) tempered glass, ensuring a sleek and durable installation that enhances both aesthetics and functionality. With a weight capacity of up to 330 pounds (150 kg), it is suitable for a variety of sliding door applications. Featuring a generous track length of 118" (3 m), the system includes essential components such as the CRL4931EXT track, CRL6979A bottom channel, and a complete set of hangers and guides. The rollers come with up to 1/4" (6 mm) of vertical adjustment to facilitate precise door alignment after installation. Additionally, the integrated Softbrake braking system provides a smooth, controlled closing action, enhancing safety and usability. Available in brushed stainless anodized finish, this kit can be further customized with various architectural finishes upon special order. Ideal for both residential and commercial applications, the C.R. Laurence 6951BSA kit is a comprehensive solution that combines style with reliable performance. For installation assistance or product selection, contact CRL Technical Sales for Commercial Products.

695 Series Brushed Stainless Anodized Wall or Ceiling Mount Sliding Door with Fixed Panel Kit with Softbrake Braking System

• Kits Intended for 3/8" To 1/2" (10 To 12 mm) Tempered Glass
• Can Accommodate Properly Installed Doors Weight Up to 330 Pounds (150 kg)
• Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
• Track Length is 118" (3 m)
• Use Monolithic Tempered Glass

CRL 690 Series Sliding Door Kits are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite and with or without the "Softbrake" braking system. All come with everything you need except the tempered glass and pull hardware. Kits are available in satin anodized, brushed stainless anodized, and matte black finishes with a special order option to clad or powder paint in many architectural finishes. Contact CRL Technical Sales for Commercial Products for kit selection or installation assistance.

Minimum sliding panel width of 34-1/4" (800 mm) for control in single or both directions.

Kit Contains:
• 118"(3m) of CRL4931EXT Track kit
• 118" (3m) of CRL6979A Bottom Channel
• Glazing Vinyl for 3/8" To 1/2" (10 To 12 mm) Glass
• 1 Set CRL6939 Top Hangers
• 1 Set CRL6942 Roller Stops
• 1 Each CRL2940 Bottom Guide
• 1 Set CRL2945 Door Edge Guards
• 1 Set CRL2929 Dropped Ceiling Adapter Bracket
• 1 Each CRL695SBK Softbrake Kit

Resources

• 690 695 Series Grid System Installation Instructions
• 690 695 Series Sliding Door Product Information
• 690 695 Series Sliding Door System 3-Part Spec
• 690 695 Series Sliding Door System CAD Drawings.dwg
• 690 695 Series Sliding Door System CAD Drawings.pdf
• 695 Series Sliding Door Installation Instructions
