CRL 6951DMBL 695 Series Matte Black Sliding Door Kit with Softbrake System
Images may not represent actual product and finish

CRL 6951DMBL 695 Series Matte Black Sliding Door Kit with Softbrake System

Your Price: $2,484.99
Retail Price:$2,974.98
Your Savings:$489.99(16%)
Elevate your space with the CRL 6951DMBL Matte Black Sliding Door Kit, featuring a Softbrake system for smooth operation.
Part Number : CRL_6951DMBL
Availability: 10 In Stock
CRL 6951DMBL 695 Series Matte Black Sliding Door Kit with Softbrake System

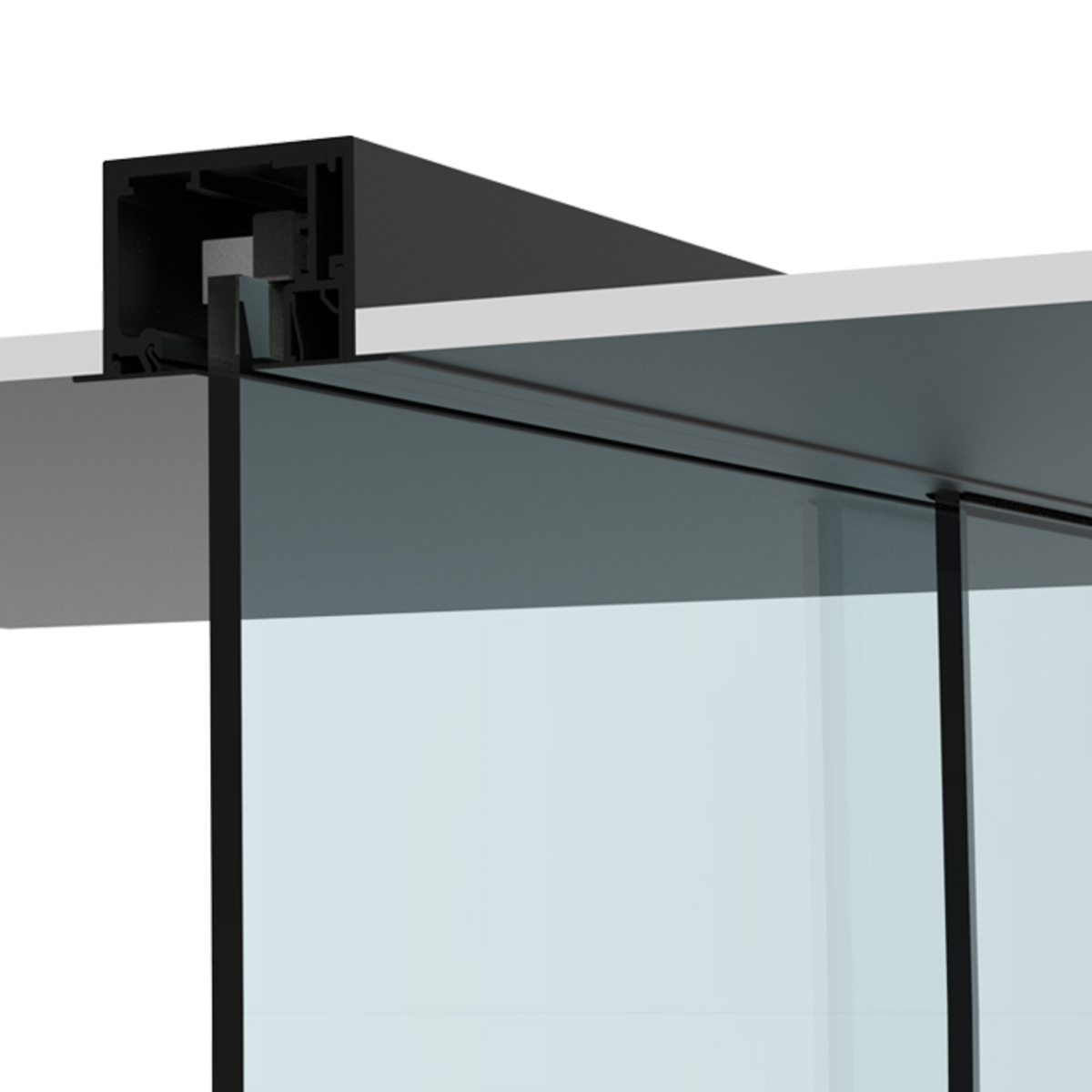

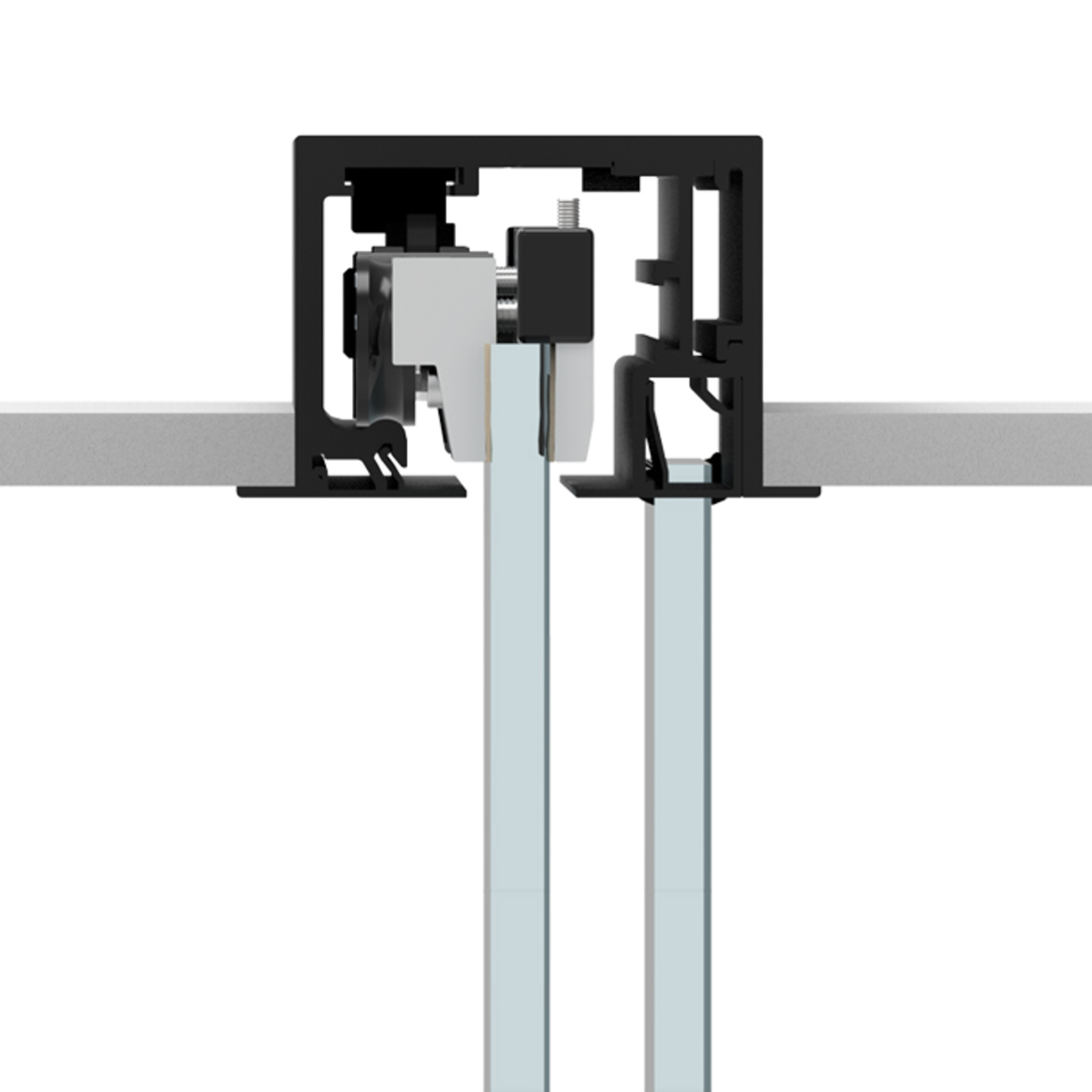

C.R. Laurence 6951DMBL 695 Series Matte Black Drop Ceiling Mount Sliding Door with Fixed Panel Kit with Softbrake Braking System offers a sleek and sophisticated solution for modern architectural designs. Designed for use with 3/8" to 1/2" (10 to 12 mm) tempered glass, this kit supports properly installed doors weighing up to an impressive 330 pounds (150 kg). The 118" (3 m) track ensures smooth operation, while the integrated Softbrake braking system provides gentle stopping, enhancing safety and usability. With up to 1/4" (6 mm) of vertical adjustment in the rollers, door alignment can be easily fine-tuned after installation, ensuring a precise fit every time. This complete kit includes everything necessary for installation, such as a bottom channel, glazing vinyl suited for the specified glass thickness, top hangers, roller stops, and a bottom guide. Additionally, the matte black finish adds a contemporary touch that complements any interior. For those interested in customization, kits are also available in various finishes, including satin anodized and brushed stainless anodized. Trust C.R. Laurence for a reliable, high-quality sliding door solution that meets the demands of both professionals and discerning homeowners.

695 Series Matte Black Drop Ceiling Mount Sliding Door with Fixed Panel Kit with Softbrake Braking System

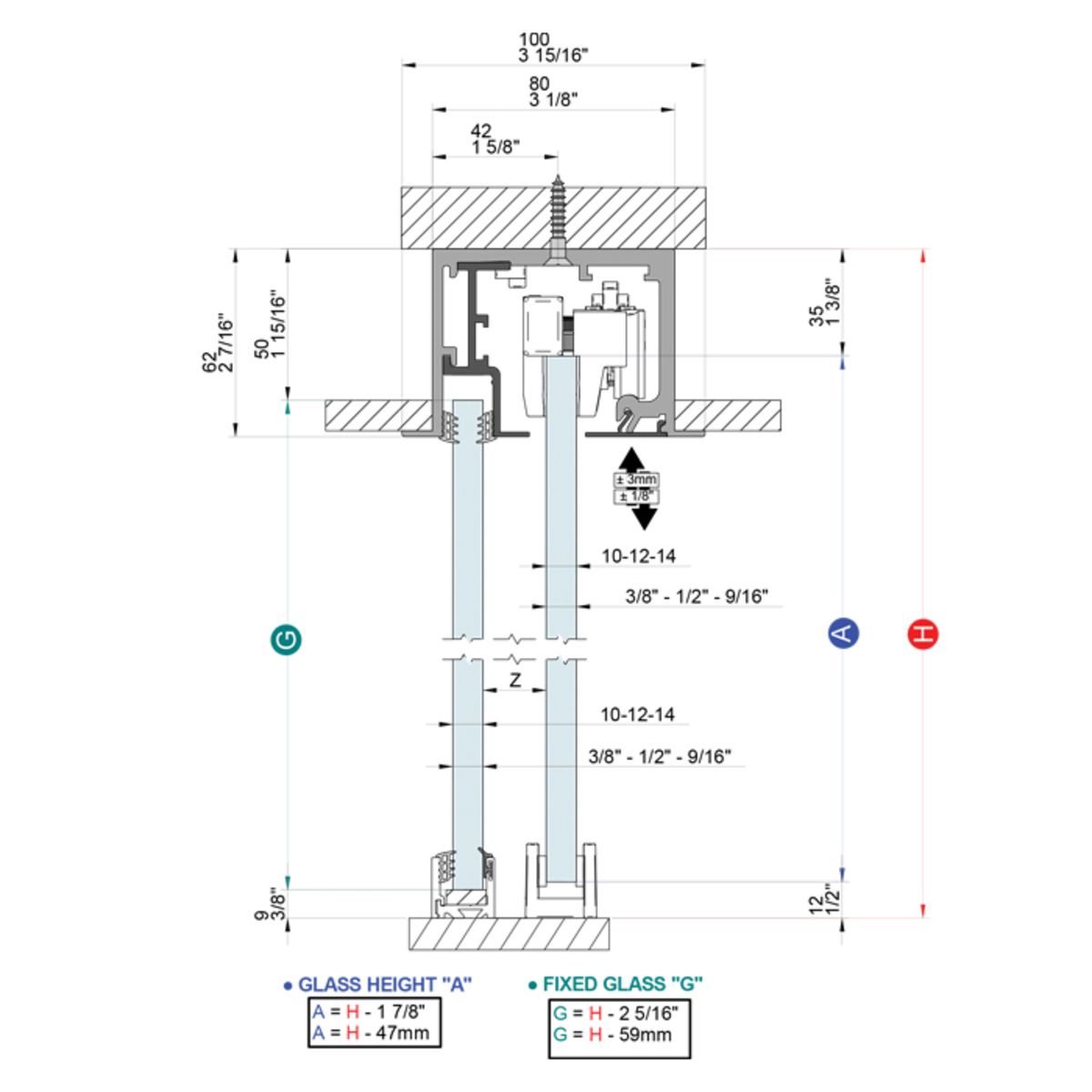

  • Kits Intended for 3/8" To 1/2" (10 To 12 mm) Tempered Glass
  • Can Accommodate Properly Installed Doors Weighing Up to 330 Pounds (150 kg)
  • Rollers Have Up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
  • Track Length is 118" (3 m)
  • Use Monolithic Tempered Glass

CRL 690 Series Sliding Door Kits are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite and with or without the "Softbrake" braking system. All come with everything you need except the tempered glass and pull hardware. Kits are available in satin anodized, brushed stainless anodized, and matte black finishes with a special order option to clad or powder paint in many architectural finishes. Contact CRL Technical Sales for Commercial Products for kit selection or installation assistance.


Minimum sliding panel width of 34-1/4" (800 mm) for control in single or both directions.

Kit Contains:
  • 118"(3m) of CRL4933EXT Track kit
  • 118" (3m) of CRL6979A Bottom Channel
  • Glazing Vinyl for 3/8" To 1/2" (10 To 12 mm) Glass
  • 1 Set CRL6939 Top Hangers
  • 1 Set CRL6942 Roller Stops
  • 1 Each CRL2940 Bottom Guide
  • 1 Set CRL2945 Door Edge Guards
  • 1 Set CRL2929 Dropped Ceiling Adapter Bracket
  • 1 Each CRL695SBK Softbrake Kit

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Ship via: No UPS - Common Carrier Only

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Finish/ Color:: Matte Black

    Glazing Thickness: 3/8 To 1/2 in. (10 To 12 mm)

    Shipping Limitations: No UPS - Common Carrier Only

    Track Length: 118 in. (3000 mm)
