CRL 695DMBL 695 Series Matte Black Sliding Door Kit with Softbrake System
Images may not represent actual product and finish

CRL 695DMBL 695 Series Matte Black Sliding Door Kit with Softbrake System

Your Price: $2,094.49
Retail Price:$2,507.48
Your Savings:$412.99(16%)
Elevate your space with the CRL 695 Series Matte Black Sliding Door Kit, featuring a Softbrake system for smooth operation.
Part Number : CRL_695DMBL
Availability: 16 In Stock
CRL 695DMBL 695 Series Matte Black Sliding Door Kit with Softbrake System

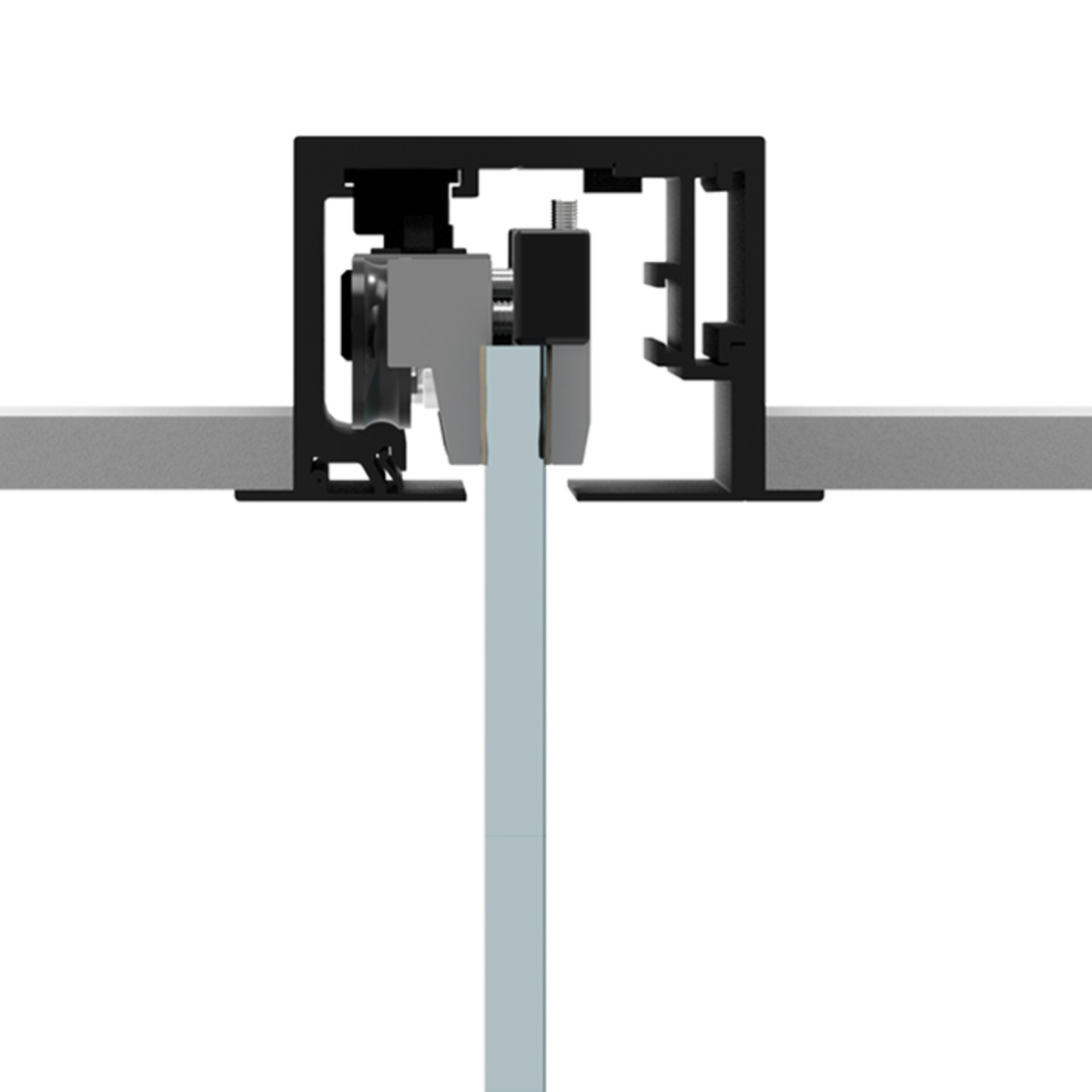

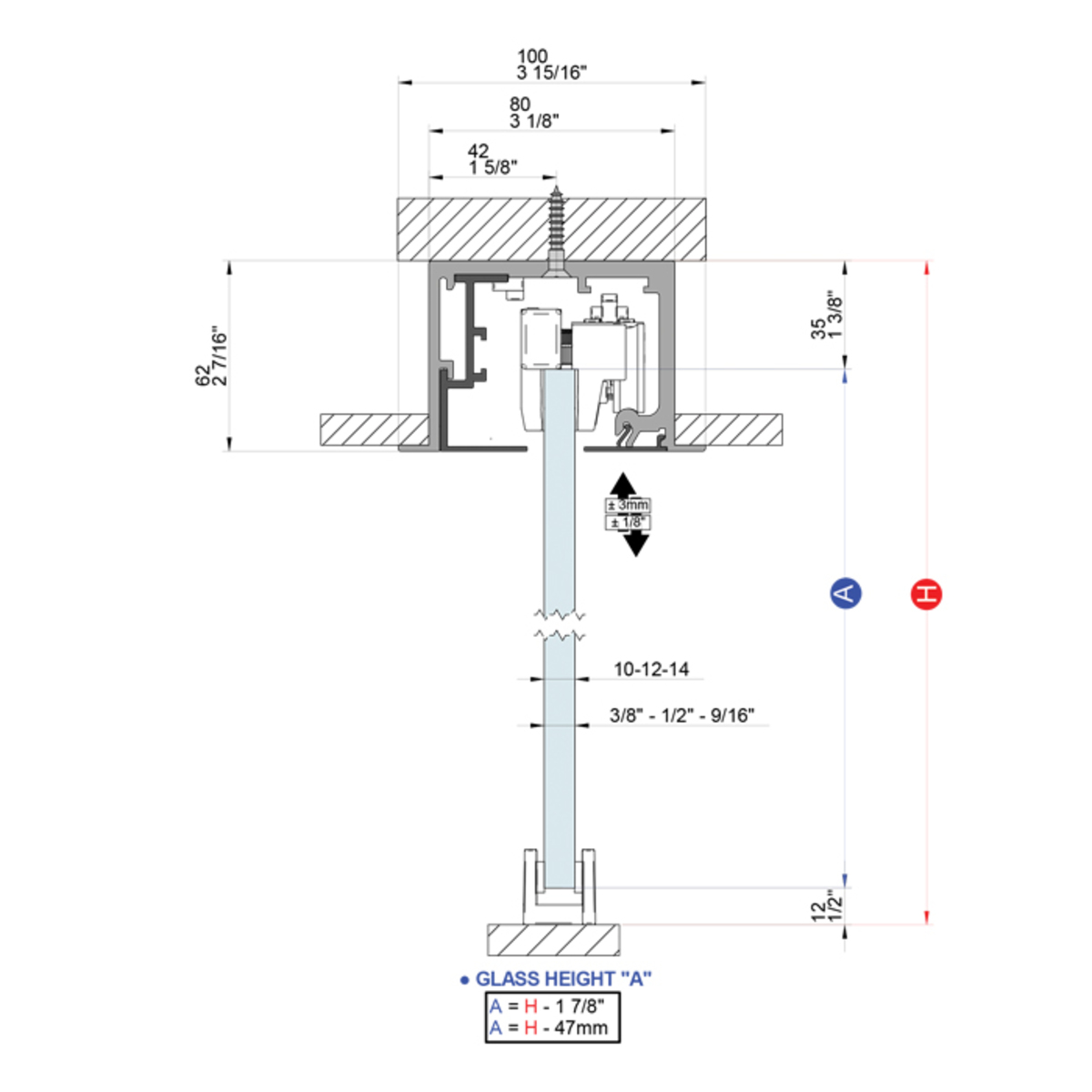

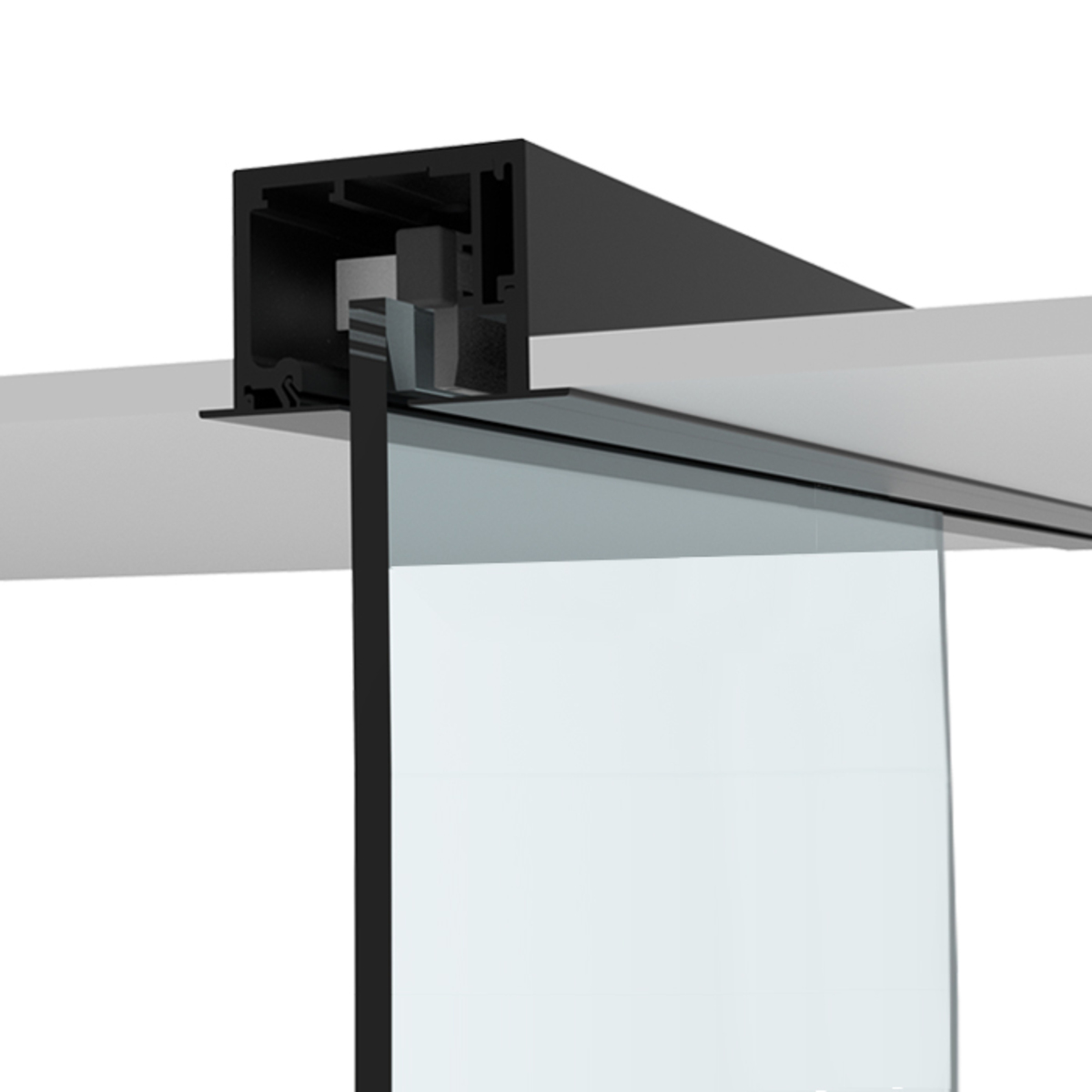

CRL 695DMBL 695 Series Matte Black Drop Ceiling Mount Sliding Door Kit with Softbrake Braking System is designed for seamless elegance and functionality in modern spaces. This kit accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass doors, supporting weights up to an impressive 330 pounds (150 kg). With a track length of 118" (3 m), this system is ideal for larger installations while ensuring smooth operation. The unique Softbrake braking system enhances user experience by providing controlled and gentle door closure, eliminating slamming and wear over time. Vertical adjustments of up to 1/4" (6 mm) on the rollers aid in precise door alignment, making installation straightforward and hassle-free. Included in the kit are essential components such as top hangers, roller stops, a bottom guide, door edge guards, and dropped ceiling adapter brackets, ensuring you have everything needed for a successful setup, aside from the tempered glass and pull hardware. Available in a sleek matte black finish, the 695 Series suits various architectural styles and can be customized with special order options. For building professionals and discerning homeowners seeking high-quality sliding door solutions, the CRL 695 Series offers reliability, style, and exceptional performance.

695 Series Matte Black Drop Ceiling Mount Sliding Door Kit with Softbrake Braking System

  • Kits Intended for 3/8" To 1/2" (10 To 12 mm) Tempered Glass
  • Can Accommodate Properly Installed Doors Weighing Up to 330 Pounds (150 kg)
  • Roller Have Up to 1/4" (6 mm) of Vertical Adjustment to Aid in Door Alignment After Installation
  • Track Length is 118" (3 m)
  • Use Monolithic Tempered

CRL 690 Series Sliding Door Kits are available in wall mount, ceiling mount, and drop ceiling mount models, with or without a sidelite and with or without the "Softbrake" braking system. All come with everything you need except the tempered glass and pull hardware. Kits are available in satin anodized, brushed stainless anodized, and matte black finishes with a special order option to clad or powder paint in many architectural finishes. Contact CRL Technical Sales for Commercial Products for kit selection or installation assistance.


Minimum sliding panel width of 30-7/8" (785 mm) for control in a single direction: 42-1/2" (1080 mm) for control in both directions. Existing CRL690 Series installations can be easily upgraded by ordering kits.

Kit Contains:
  • 118" (3m) of CRL4932EXT Track Set
  • 1 Set CRL6939 Top Hangers
  • 1 Set CRL6942 Roller Stops
  • 1 Each CRL2940 Bottom Guide
  • 1 Set CRL2945 Door Edge Guards
  • 1 Set CRL2929 Dropped Ceiling Adapter Brackets
  • 1 Each CRL695SBK Softbrake Kit

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


    • Attributes

    Ship via: No UPS - Common Carrier Only

    Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

    Finish/ Color:: Matte Black

    Glazing Thickness: 3/8 To 1/2 in. (10 To 12 mm)

    Shipping Limitations: No UPS - Common Carrier Only

    Track Length: 118 in. (3000 mm)
