CRL 702A Satin Anodized Vertical Sliding Ticket Window, 18" x 3.5" Opening

C.R. Laurence 702A Satin Anodized Vertical Sliding Ticket Window with 18" x 3-1/2" Opening offers a sleek and practical solution for service counters. This window is designed for easy installation above countertops without the need for surface alterations. Constructed from heavy gauge extruded aluminum, it is available in a choice of satin anodized or bronze anodized finishes, ensuring it fits seamlessly into various architectural styles. The sliding lower panel is equipped with 1/4" (6 mm) clear glass, allowing for unobstructed visibility while maintaining security. Spring-tensioned guides keep the panel securely raised, complemented by two spring-loaded knob latches that lock the window in place when closed. Additionally, pile weather stripping along the lower frame effectively prevents drafts, enhancing comfort for both staff and customers. With a frame depth of just 1" (25 mm) on the clerk's side, this window is unobtrusive yet functional. The included template and glazing instructions simplify the installation process, while custom-sized channels for thicker glass options are available upon request. Ensure your service area is efficient and stylish with the CRL Vertical Sliding Ticket Window-where form meets function in architectural excellence.

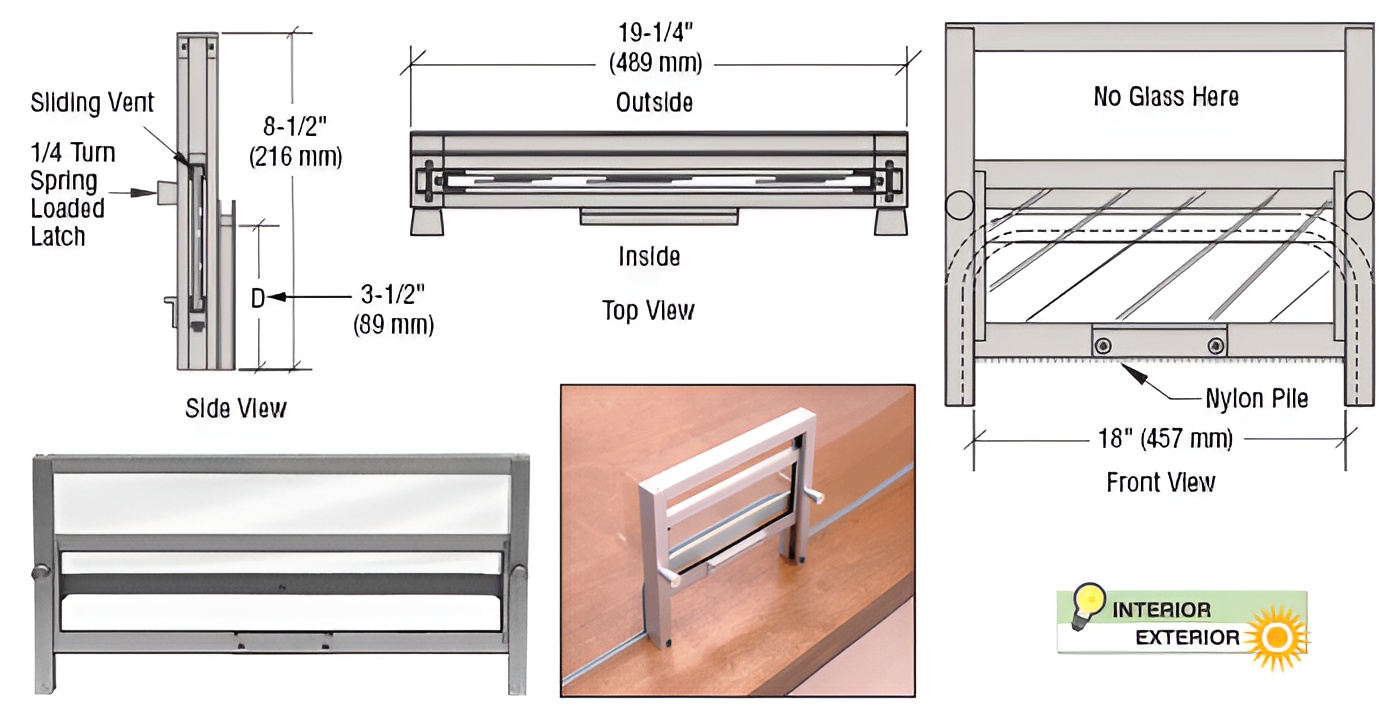

Satin Anodized Vertical Sliding Ticket Window with 18" x 3-1/2" Opening

• No Grooves Needed in Counter
• Spring-Loaded Latches
• Comes with Glass Installed
• Available in Two Finishes

Resources

• 702 CAD Drawings.pdf
• Glass Template 702c.pdf
• Installation Instructions 701 702 inst instr.pdf
