CRL 702DU Duranodic Bronze Anodized Vertical Sliding Ticket Window, 18"x3.5" Opening

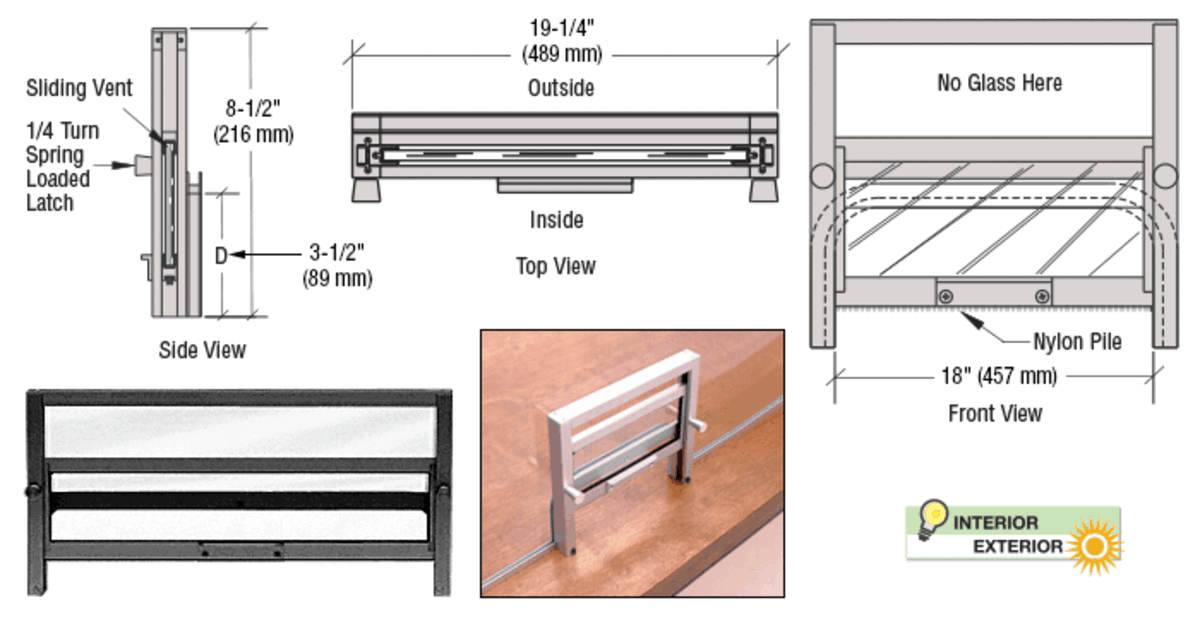

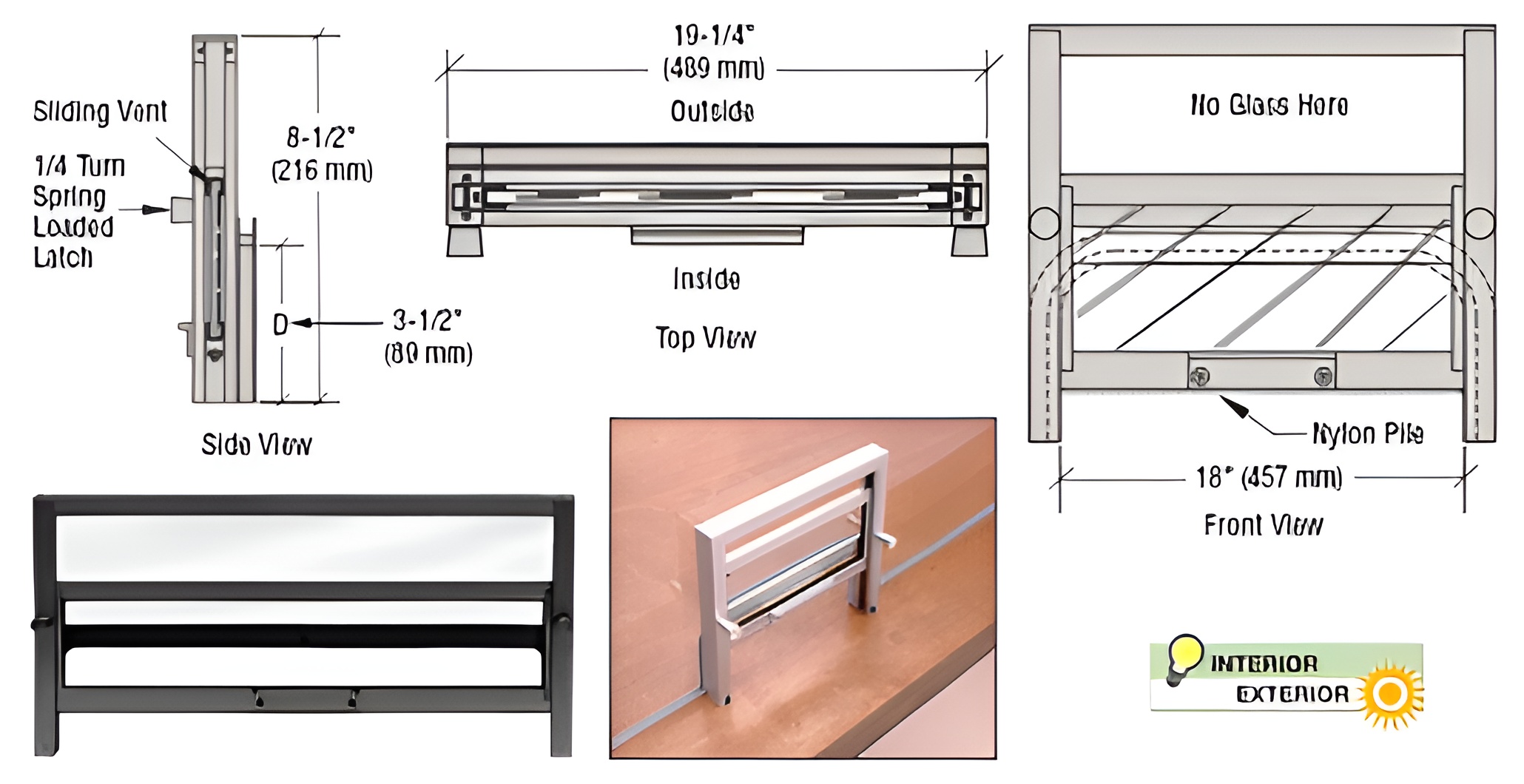

C.R. Laurence 702DU Duranodic Bronze Anodized Vertical Sliding Ticket Window with 18" x 3-1/2" Opening offers a seamless solution for service counters without the need for counter modifications. This elegant window is crafted from heavy gauge extruded aluminum, available in both satin anodized and bronze anodized finishes, ensuring durability and aesthetic appeal. The sliding lower panel is fitted with 1/4" (6 mm) clear glass, providing clarity and ease of viewing. Designed for efficiency, the window features spring-tensioned guides that keep the panel securely raised when open, while two spring-loaded knob latches provide added security when closed. Pile weather stripping along the lower frame effectively prevents drafts, enhancing comfort for both customers and staff. With a compact frame depth of just 1" (25 mm) on the clerk's side, this model is a space-saving option that does not compromise functionality. The installation process is straightforward, aided by the included template and glass cut-out information. For projects requiring thicker glazed units, custom-sized channels are available upon special order. Specifications include a frame width of 5/8 in. (15.9 mm), a height of 8-1/2 in. (215.9 mm), and a window style of vertical slider, making this product a versatile choice for various applications.

Duranodic Bronze Anodized Vertical Sliding Ticket Window with 18" x 3-1/2" Opening

• No Grooves Needed in Counter
• Spring-Loaded Latches
• Comes with Glass Installed
• Available in Two Finishes

Resources

• 702 CAD Drawings.pdf
• Glass Template 702c.pdf
• Installation Instructions 701 702 inst instr.pdf
