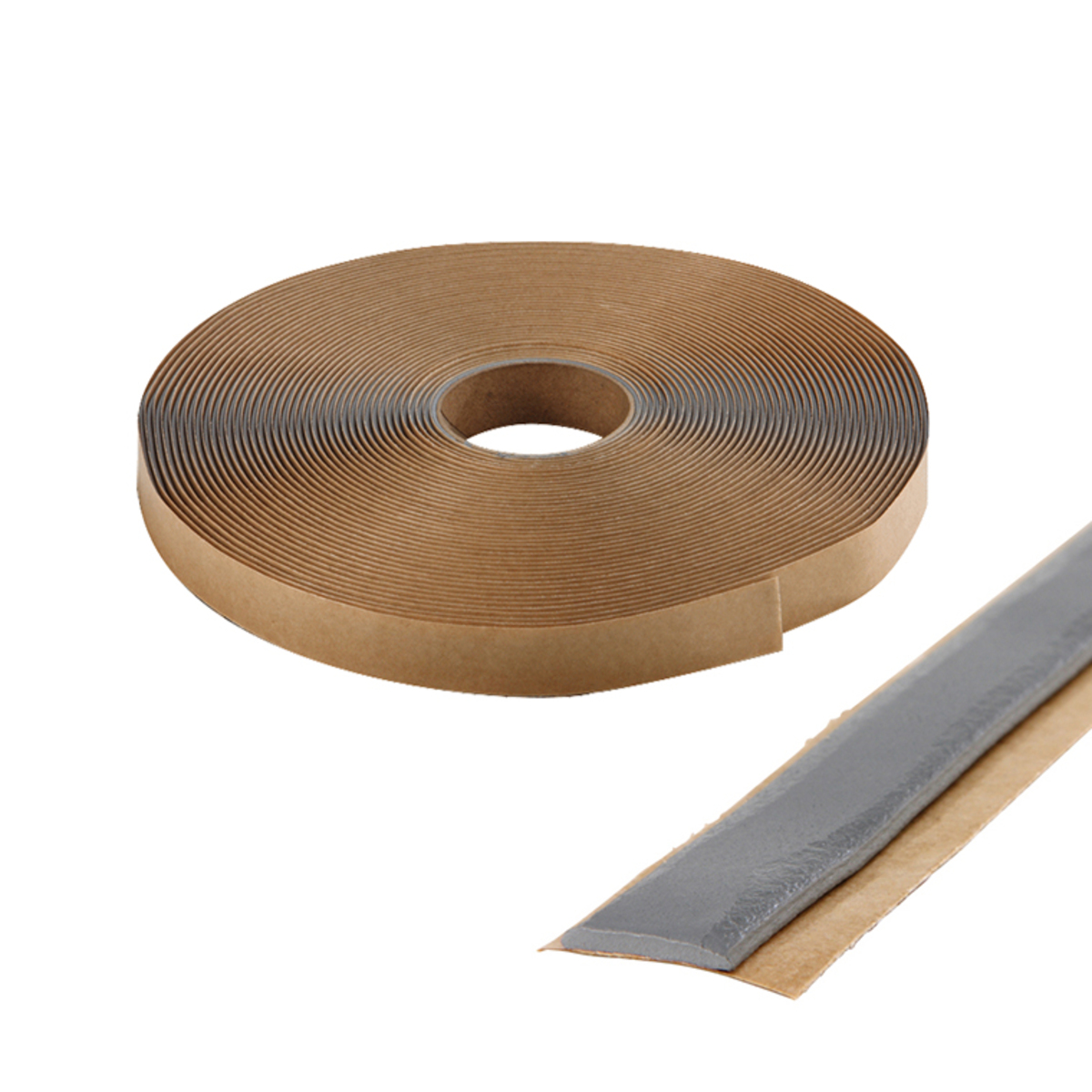

CRL 71017F1 Tremco 440 Butyl Architectural Tape, 1/8" x 1/2" Aluminum

CRL 71017F1 Tremco 440 Butyl Architectural Tape, 1/8" x 1/2" Aluminum

C.R. Laurence 71017F1 Aluminum 1/8" x 1/2" Tremco 440 Butyl Architectural Tape is a versatile and highly effective sealing solution designed for architectural applications. This pre-formed butyl sealant features a 100% solids content, ensuring no solvents or volatiles escape upon exposure, which helps to eliminate shrinkage and potential sealant failure. With outstanding weather resistance, it forms a watertight seal that prevents water infiltration, making it ideal for non-compression glazing in vision lites and spandrel panels within metal and wood frames for low-rise construction. Engineered for longevity, Tremco 440 is permanently elastic, even in low temperatures, and is suitable for a wide range of glazing systems. This tape can also be utilized for lap sealing applications between various materials, including steel, aluminum, and porcelain. With a hardness of 65 durometer Shore "00," it remains flexible across a temperature range from -40°F to 158°F. Available in both Aluminum and Black finishes, this architectural tape comes in a convenient 25 ft. roll, making it easy to handle on the job site. Adhering to AAMA standards, it is essential for professionals who demand reliability and durability in their glazing projects.

Aluminum 1/8" x 1/2" Tremco 440 Butyl Architectural Tape

• Superior Weather Resistance
• 100% Solids Content
• Available in Aluminum and Black Colors

CRL Tremco® 440 Butyl Architectural Tape is a pre-formed butyl sealant in tape form. The 100 percent solids compound of butyl and polyisobutylene contains no solvents or other volatiles that could escape on exposure, causing shrinkage and sealant failure. Tremco® 440 forms a watertight seal to prevent water infiltration, and has superior weather resistance. Highly adhesive, it remains permanently elastic, even at low temperatures, and is adaptable to many different types of glazing systems. Use Tremco® 440 for non-compression glazing of vision lites and spandrel panels in metal and wood frames in low rise building construction. It can also be used for lap sealing between panels such as steel, aluminum and porcelain, as well as a variety of other joints in shear between similar and dissimilar materials.


Typical Properties:
Base Polymer: cross-linked butyl rubber (polyisobutylene); Solids Content: 100% by weight; Cure Time: fully cured before application; Hardness: 65 durometer Shore "00"; Temperature Range: Application 20°F (-7°C) to 120°F (49°); Service -40°F (-40°C) to 158°F (70°C); Weathering: Unaffected by ultra violet through glass. Remains flexible at low temperatures.

Limitations: Not for use in joints subjected to continuous water immersion or temperatures exceeding 158°F (70°C). Not for use with lites of glass over 75" (1.91 m). As the size of the lite approaches this maximum a higher performance glazing system, such as CRL Tremco® Pre-Shimmed Butyl Tape should be considered.

Applicable Standards: AAMA 800-92, 804.3, and 807.3.

Good Glazing Practices: The following "Good Glazing Practices" are recommended when using CRL Glazing Tapes. Surfaces to be adhered should be free of frost or standing water, brushed clean, solvent washed (MEK, Toluene or Naptha) and wiped dry. At installation, positive contact and approximately 10 percent compression is recommended to fully marry surfaces to be joined. Glazing tapes kept under compression with clips or wedges provide the best seals.

Always use setting blocks (80 durometer Shore "A" hardness) placed at the sill quarter points. Spacing shims are recommended to accommodate wind loading when glass lite is over 100" (50 durometer Shore "A" hardness). Tape placement on the sill rabbet is not to be below the sight line unless a cap bead is specified, then tape is placed 3/16" (4.76 mm) below the sight line to allow for the cap bead. Do not overlap tape to join; always butt ends without stretching. To keep tape surface clean, leave release paper in place until ready-to-set the glass.


Product Warning:

Limitations: Not for use in joints subjected to continuous water immersion or temperatures exceeding 158°F (70°C). Not for use with lites of glass over 75" (1.91 m). As the size of the lite approaches this maximum a higher performance glazing system, such as CRL Tremco® Pre-Shimmed Butyl Tape should be considered.

Resources

• Safety Data Sheets 71017F1.pdf
• Specifications Tremco440.PDF
