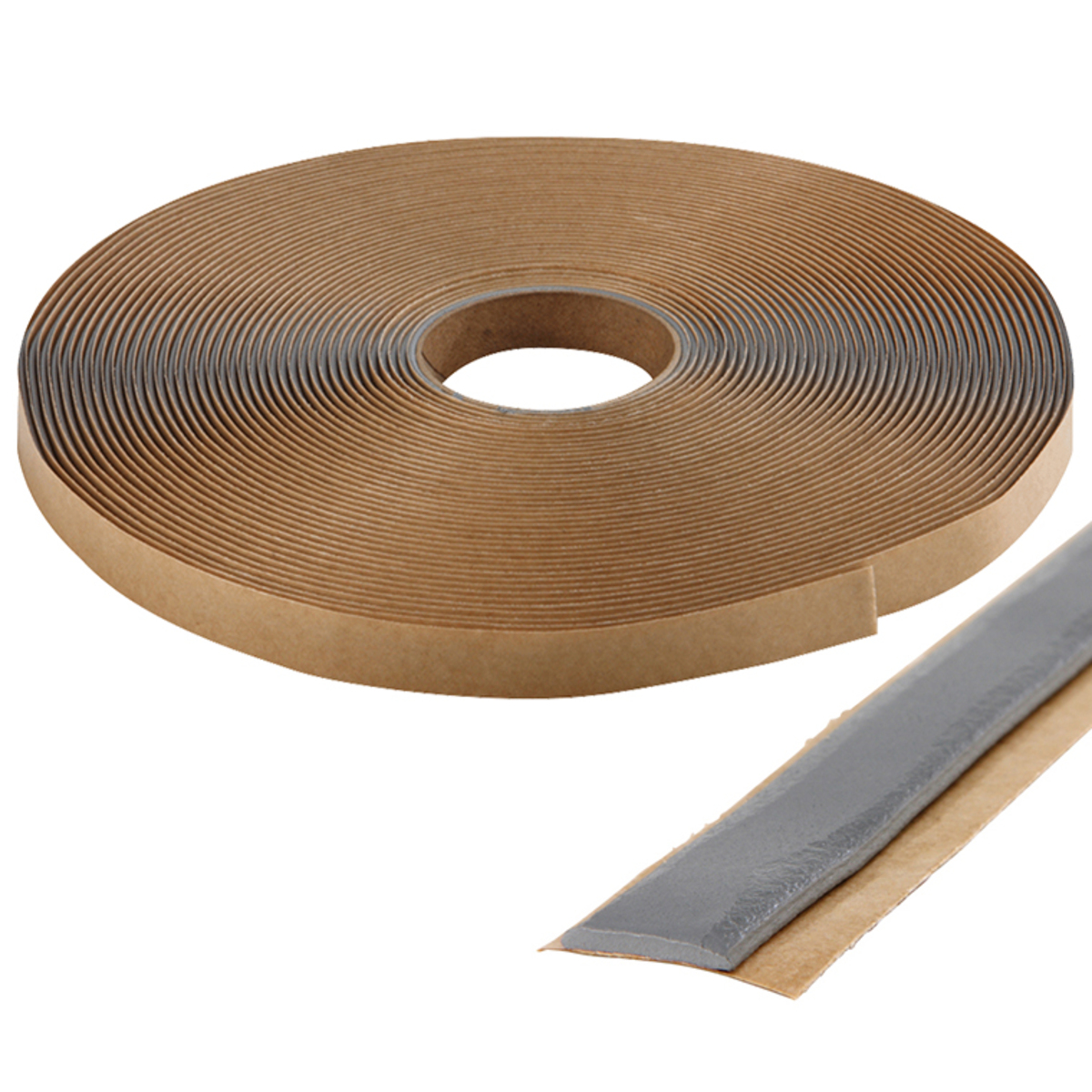

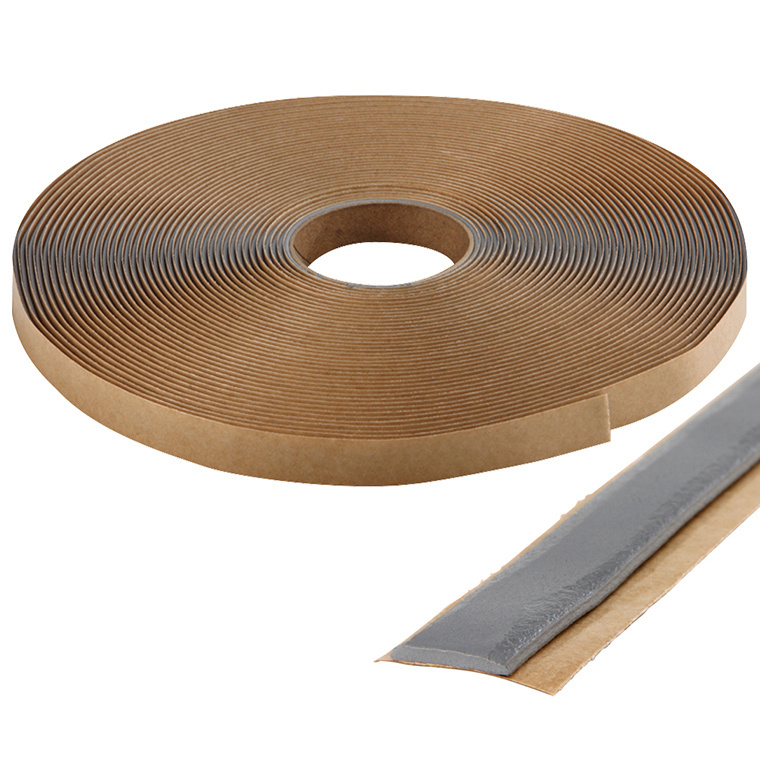

CRL 71049N1 Tremco 440 Butyl Architectural Tape, 1/16" x 3/8" Aluminum

Your Price: $18.56

Retail Price:$22.22

Your Savings:$3.66(16%)

CRL Tremco® 440 Butyl Architectural Tape offers superior weather resistance and a watertight seal for various glazing applications.

Part Number : CRL_71049N1

Availability: 0 Ship time varies. We email you if your order is delayed.

Description

CRL 71049N1 Tremco 440 Butyl Architectural Tape, 1/16" x 3/8" Aluminum

CRL 71049N1 Aluminum 1/16" x 3/8" Tremco 440 Butyl Architectural Tape is a premier solution for achieving superior sealing in various glazing applications. This pre-formed butyl sealant, made from a 100% solids compound, ensures that there are no solvents or volatiles that can lead to sealant failure over time. Its exceptional weather resistance creates a watertight seal, effectively preventing water infiltration and enhancing the durability of your installations. Designed for flexibility and adaptability, this architectural tape remains permanently elastic, even in low temperatures, making it ideal for non-compression glazing of vision lites and spandrel panels within metal and wood frames in low-rise construction. It is also suitable for lap sealing between panels such as steel, aluminum, and porcelain, accommodating various joint configurations. With a hardness of 65 durometer Shore "00," the tape can withstand an application temperature range from 20°F to 120°F and service temperatures from -40°F to 158°F. Note the limitations: it should not be used in joints with continuous water exposure or with glass lites exceeding 75 inches. Available in both aluminum and black colors, CRL Tremco 440 Butyl Tape is a reliable choice for professionals looking to ensure quality and performance in their glazing projects.

Aluminum 1/16" x 3/8" Tremco 440 Butyl Architectural Tape

Superior Weather Resistance
100% Solids Content
Available in Aluminum and Black Colors

CRL Tremco® 440 Butyl Architectural Tape is a pre-formed butyl sealant in tape form. The 100 percent solids compound of butyl and polyisobutylene contains no solvents or other volatiles that could escape on exposure, causing shrinkage and sealant failure. Tremco® 440 forms a watertight seal to prevent water infiltration, and has superior weather resistance. Highly adhesive, it remains permanently elastic, even at low temperatures, and is adaptable to many different types of glazing systems. Use Tremco® 440 for non-compression glazing of vision lites and spandrel panels in metal and wood frames in low rise building construction. It can also be used for lap sealing between panels such as steel, aluminum and porcelain, as well as a variety of other joints in shear between similar and dissimilar materials.

Typical Properties:

Base Polymer: cross-linked butyl rubber (polyisobutylene); Solids Content: 100% by weight; Cure

Time: fully cured before application; Hardness: 65 durometer Shore "00"; Temperature Range: Application 20°F (-7°C) to 120°F (49°); Service -40°F (-40°C) to 158°F (70°C); Weathering: Unaffected by ultra violet through glass. Remains flexible at low temperatures.

Limitations: Not for use in joints subjected to continuous water immersion or temperatures exceeding 158°F (70°C). Not for use with lites of glass over 75" (1.91 m). As the size of the lite approaches this maximum a higher performance glazing system, such as CRL Tremco® Pre-Shimmed Butyl Tape should be considered.

Applicable Standards: AAMA 800-92, 804.3, and 807.3.

Good Glazing Practices: The following "Good Glazing Practices" are recommended when using CRL Glazing Tapes. Surfaces to be adhered should be free of frost or standing water, brushed clean, solvent washed (MEK, Toluene or Naptha) and wiped dry. At installation, positive contact and approximately 10 percent compression is recommended to fully marry surfaces to be joined. Glazing tapes kept under compression with clips or wedges provide the best seals.

Always use setting blocks (80 durometer Shore "A" hardness) placed at the sill quarter points. Spacing shims are recommended to accommodate wind loading when glass lite is over 100" (50 durometer Shore "A" hardness). Tape placement on the sill rabbet is not to be below the sight line unless a cap bead is specified, then tape is placed 3/16" (4.76 mm) below the sight line to allow for the cap bead. Do not overlap tape to join; always butt ends without stretching. To keep tape surface clean, leave release paper in place until ready-to-set the glass.

Product Warning:

Limitations: Not for use in joints subjected to continuous water immersion or temperatures exceeding 158°F (70°C). Not for use with lites of glass over 75" (1.91 m). As the size of the lite approaches this maximum a higher performance glazing system, such as CRL Tremco® Pre-Shimmed Butyl Tape should be considered.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Attributes

Case Quantity: 20 Rolls

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Aluminum

Roll Length: 50 ft.(15 m)

Shipping Limitations: None

Thickness: 1/16 in. (2 mm)

Type: Butyl

Width: 1/2 in. (13 mm)
