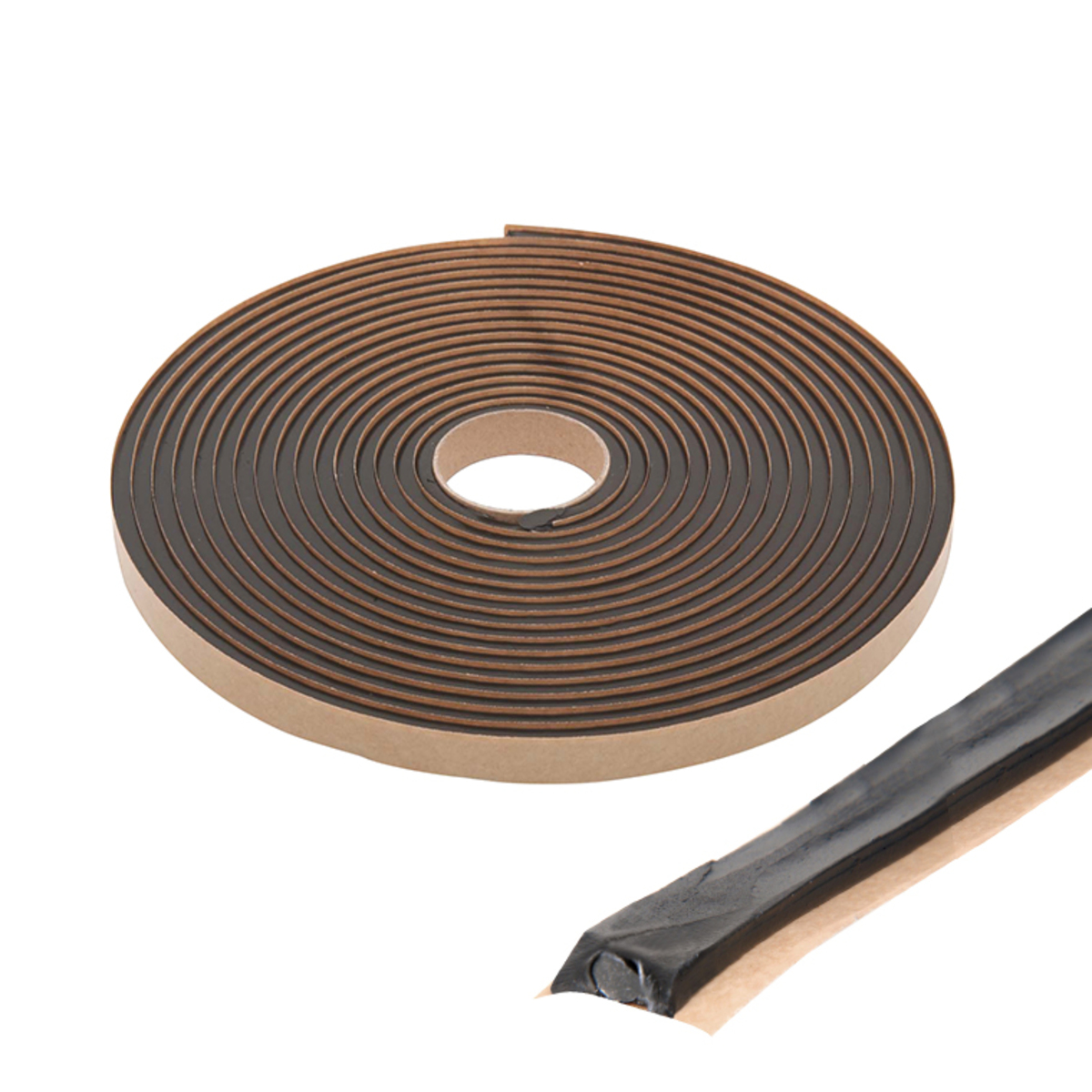

CRL 7241YP3 Tremco POLYshim II Black Butyl Architectural Tape 3/16" x 3/8"CRL 7241YP3 Black 3/16" x 3/8" Tremco POLYshim II Butyl Architectural Tape is an essential component for achieving high-performance glazing in various applications. This 100% solids, highly adhesive, and elastic butyl tape is specifically designed for use in compression glazing systems, including curtain walls, unitized curtain walls, and sloped glazing. One of the standout features of POLYshim II Tape is its continuous integral EPDM shim, which effectively prevents sealant squeeze-out under pressure from building and glass movement. This resilient shim also minimizes glass breakage by eliminating pressure points caused by improper shimming, ensuring a reliable installation every time. It is compatible with a wide range of glazing systems and boasts excellent adhesion, heat resistance, and weathering durability. The tape has a hardness of 57 durometer Shore "00" and operates within a temperature range from -65°F to 200°F. It meets AAMA 800-92 specifications, ensuring compliance with industry standards. With a roll length of 25 ft (8 m) and a thickness of 0.215 in. (5 mm), this black butyl tape is a versatile choice for building professionals looking to enhance their glazing projects.
Black 3/16" x 3/8" Tremco POLYshim II Butyl Architectural Tape
- Continuous Integral EPDM Shim
- 100% Solids Content
- Used in Compression Glazing Systems
- Meets AAMA 800-92, 804.3, 806.3, and 807.3
- Black Color

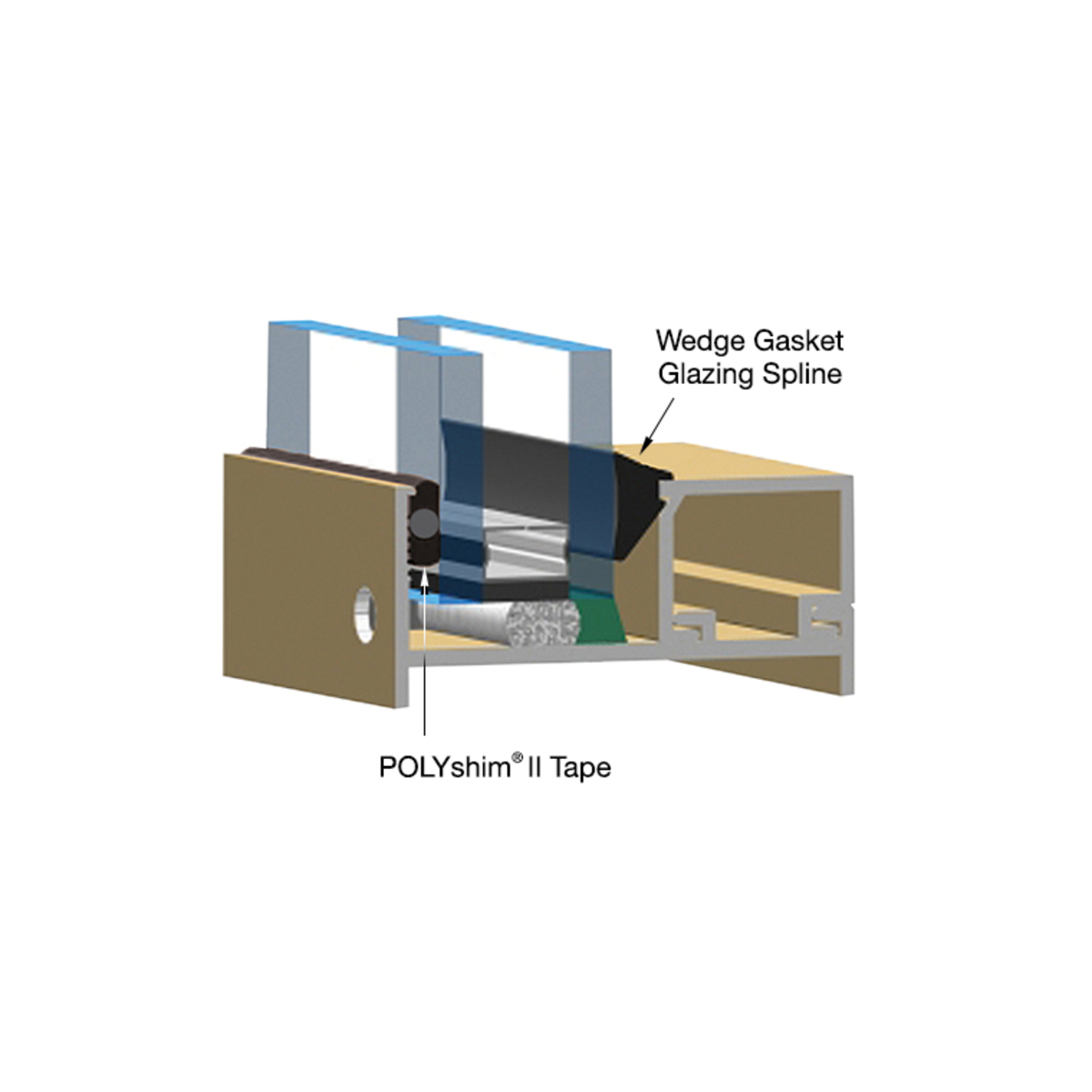

CRL Tremco® POLYshim™ II Tape is a 100 percent solids, highly adhesive and elastic, cross linked preformed butyl tape. Use it in compression glazing systems wherever the design calls for high performance glazing of curtain wall, unitized curtain walls, punched and ribbon window systems, and sloped glazing applications.
The continuous rubber shim works to prevent sealant squeeze-out because it is resilient to pressure exerted by building and glass expansion or contraction. It also helps prevent glass breakage by eliminating pressure points created by improper shimming. The continuous shim eliminates the need for preshimming the lite before installing the tape. Tremco® Pre-Shimmed tape has good adhesion, heat resistance, sealant compatibility, and resistance to weathering. It can be used in conjunction with many glazing systems.
Typical Physical Properties
Base Polymer: cross linked butyl rubber (polyisobutylene); Solids Content: 100% by weight. Hardness: 57 durometer Shore "00". Temperature Range: Application 20°F (-7°C) to 120°F (49°C); Service -65°F (-54°C) to 200°F (93°C). Weathering: Unaffected by Ultraviolet through glass. Remains flexible at low temperatures.
Applicable Standards
POLYshim™ II Tape meets the requirements of AAMA 800-92 Specifications 804.3, 806.3, and 807.3.
Limitations
Not for use in joints subjected to continuous water immersion or temperatures exceeding 200°F (93°C). Do not compression glaze glass with POLYshim™ II Tape having less than an 1/8" (3 mm) shim.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Brand: Tremco
Case Quantity: 20 Rolls
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Black
Roll Length: 25 ft.(8 m)
Shipping Limitations: None
Thickness: 0.215 in. (5 mm)
Type: Butyl
Width: 3/8 in. (10 mm)
