CRL 76NGA36 36
Images may not represent actual product and finish

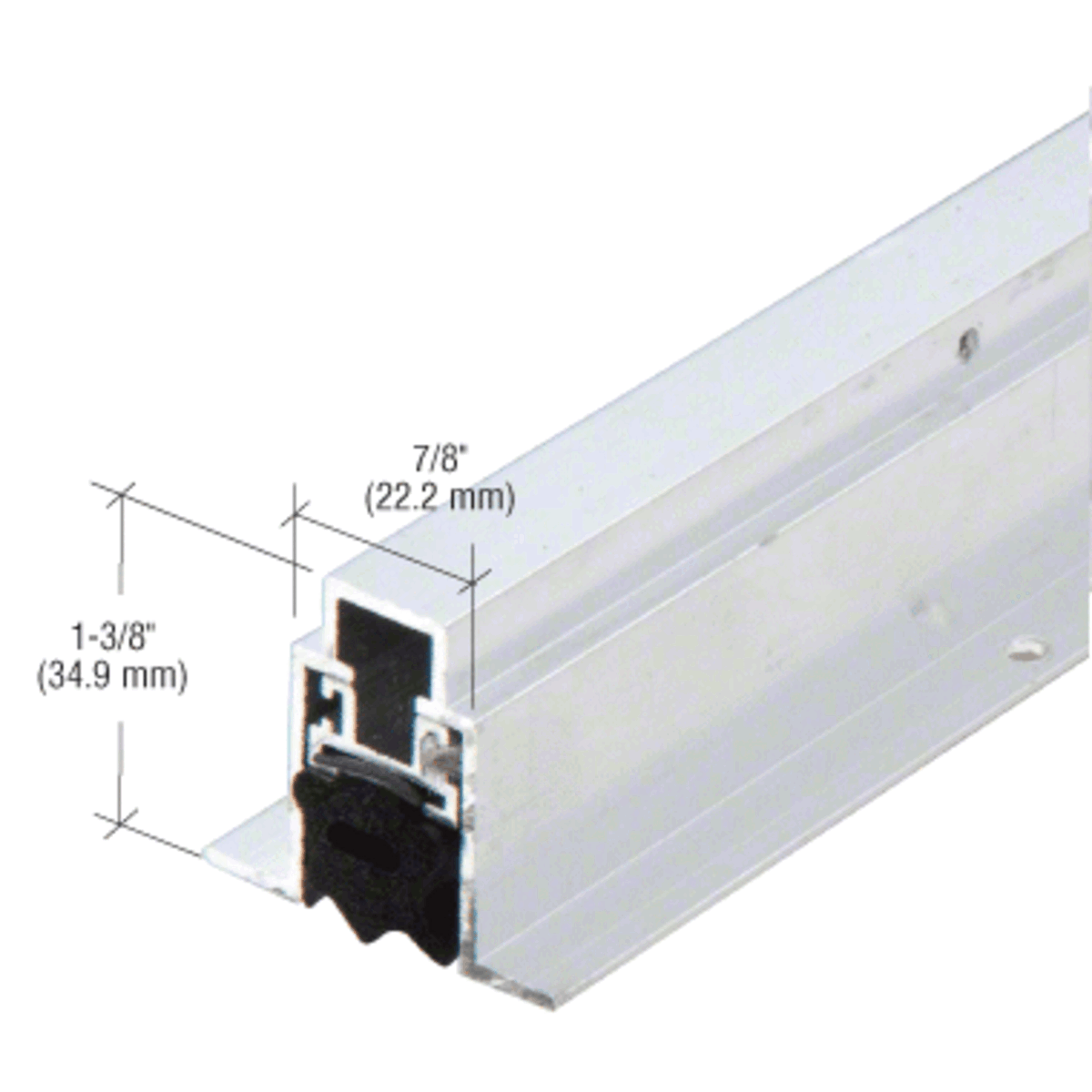

CRL 76NGA36 36" Heavy-Duty Automatic Door Bottom

Your Price: $234.29
Retail Price:$280.48
Your Savings:$46.19(16%)
The CRL 76NGA36 is a heavy-duty automatic door bottom, ideal for mortise applications, providing a tight seal and adjustable length.
Part Number : CRL_76NGA36
Availability: 8 In Stock
CRL 76NGA36 36" Heavy-Duty Automatic Door Bottom

C.R. Laurence 76NGA36 36" Commercial Heavy-Duty Automatic Door Bottom is engineered for mortise applications, delivering exceptional performance under various conditions. This robust door bottom is mechanically actuated, featuring an internal carrier bar with a vinyl insert that drops from a concealed cavity. When installed, it creates a tight seal between the door base and the threshold, making it an ideal choice for carpeted interiors where the door bottom must retract when opened. With a length that can be cut down by up to 2 inches (51 mm), the 76NGA36 offers flexibility to fit different door specifications. The door bottom is supplied with a frame "actuator" protector plate and can be field-reversed for either hand of the door, enhancing versatility for installation. Proper actuation occurs only when the product is installed; initial testing by hand will not ensure its full functionality. Once installed, adjustments can be made to the threaded hex plunger to increase seal pressure against the sill. Finished in durable aluminum and measuring 1-3/8" in height and 7/8" in width, this door bottom is designed to withstand everyday use while maintaining a professional appearance.

36" Commercial Heavy-Duty Automatic Door Bottom

  • For Mortise Applications
  • Length Can Be Cut Down in Length Up to 2" (51 mm)

This CRL Commercial Heavy-Duty Automatic Door Bottom is designed to be mortised into the bottom of the door and is mechanically actuated. An internal carrier bar with a vinyl insert drops from a concealed cavity to form a tight seal between the base of the door and the threshold. This is an ideal bottom weather seal for use where carpeted interiors require the door bottom to retract upward when the door is opened. Supplied with a frame "actuator" protector plate, the door bottom is field reversible for either "hand" of door.


Actuation of the inner drop down bar only functions properly when this door bottom is installed on the door. Testing by hand before installation will only drop the back of the bar. Proper function only occurs when the back edge (near the hinge side) drops down onto the sill. Once the back of the bar makes contact, the front edge will drop, creating the seal. At this time, adjustments can be made to the threaded hex plunger by backing out the plunger to increase the seal pressure against the sill.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Attributes

Automatic Door Bottom: Yes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Aluminum

Full Height: 1-3/8

Shipping Limitations: None

Width: 7/8
