CRL 80010LH Dormakaba 3/4" Clearance Left Hand Offset Tapered Spindle

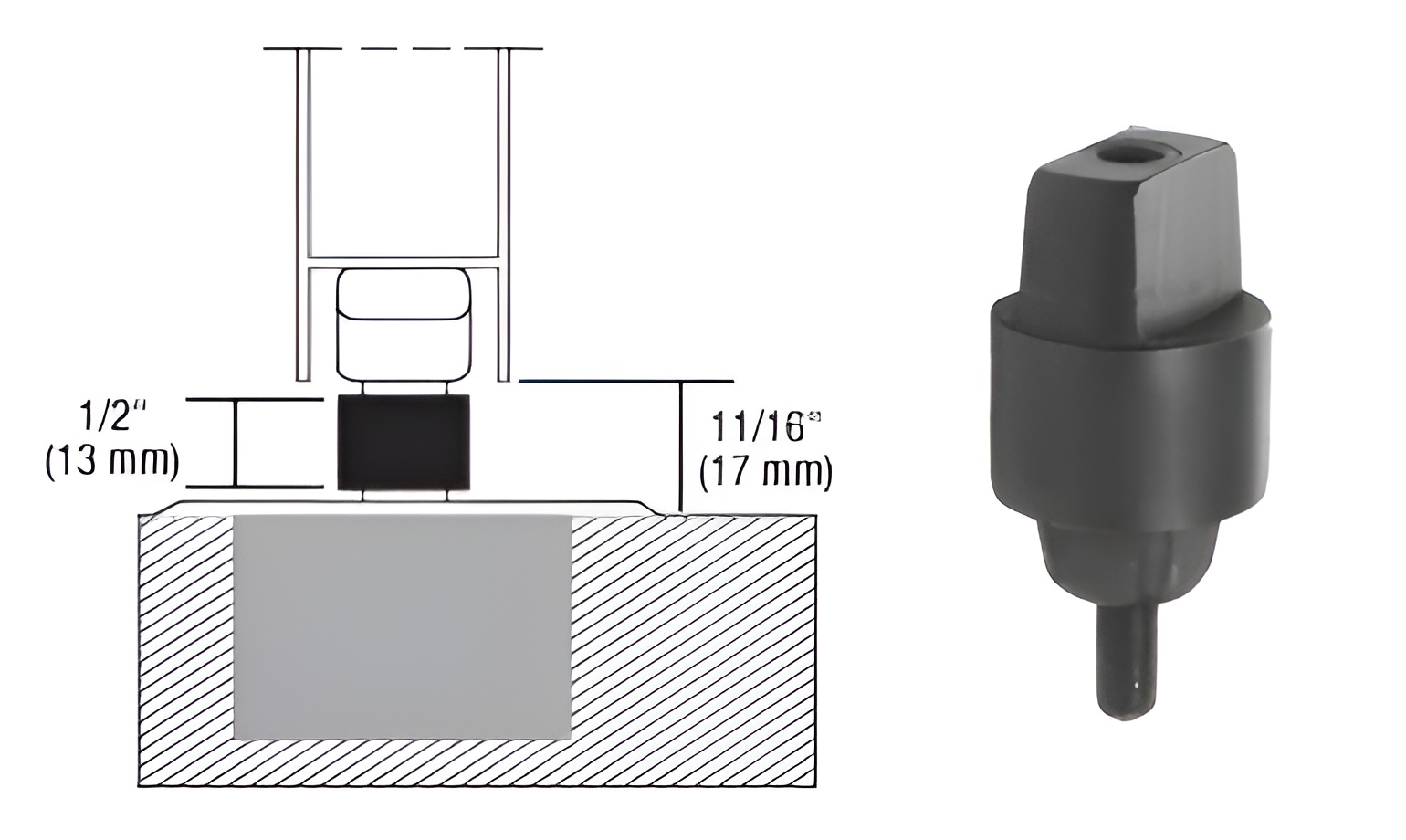

CRL 80010LH Dormakaba 3/4" Clearance, 3 Left Hand Offset Tapered Type Spindle offers a reliable solution for floor-mounted door closers, compatible with CRL Models, Jackson® 900, and Dormakaba® BT575 and BTS80 series. Designed with versatility in mind, this spindle features three available door clearance heights of 5/16", 1/2", and 3/4" (8, 12.7, and 19 mm), ensuring it can meet various threshold and finished floor requirements. The left-hand handing and flat tapered design provide preload pressure, effectively holding the door in the closed position against the stop. This spindle is specifically crafted for use with all center-hung and offset bottom arms designed for this spindle type, as well as CRL Patch Fitting Inserts, enhancing its adaptability in numerous applications. When determining the actual door clearance, remember to add 3/16" (5 mm) to the collar height. For example, a 1/8" (3 mm) collar height would yield a 5/16" (8 mm) door clearance from the finished floor. Marked with "R" for right-hinged doors, this left-hand spindle is an essential component for ensuring seamless door operation in commercial and residential settings.

Dormakaba 3/4" Clearance, 3 Left Hand Offset Tapered Type Spindle

• For Use with All CRL Models, Jackson® 900, and Dormakaba® BT575 and BTS80 Series Floor Mounted Door Closers
• Three Available Door Clearance Heights 5/16", 1/2", and 3/4" (8, 12.7, and 19 mm)
• Handed, Flat Tapered Type
