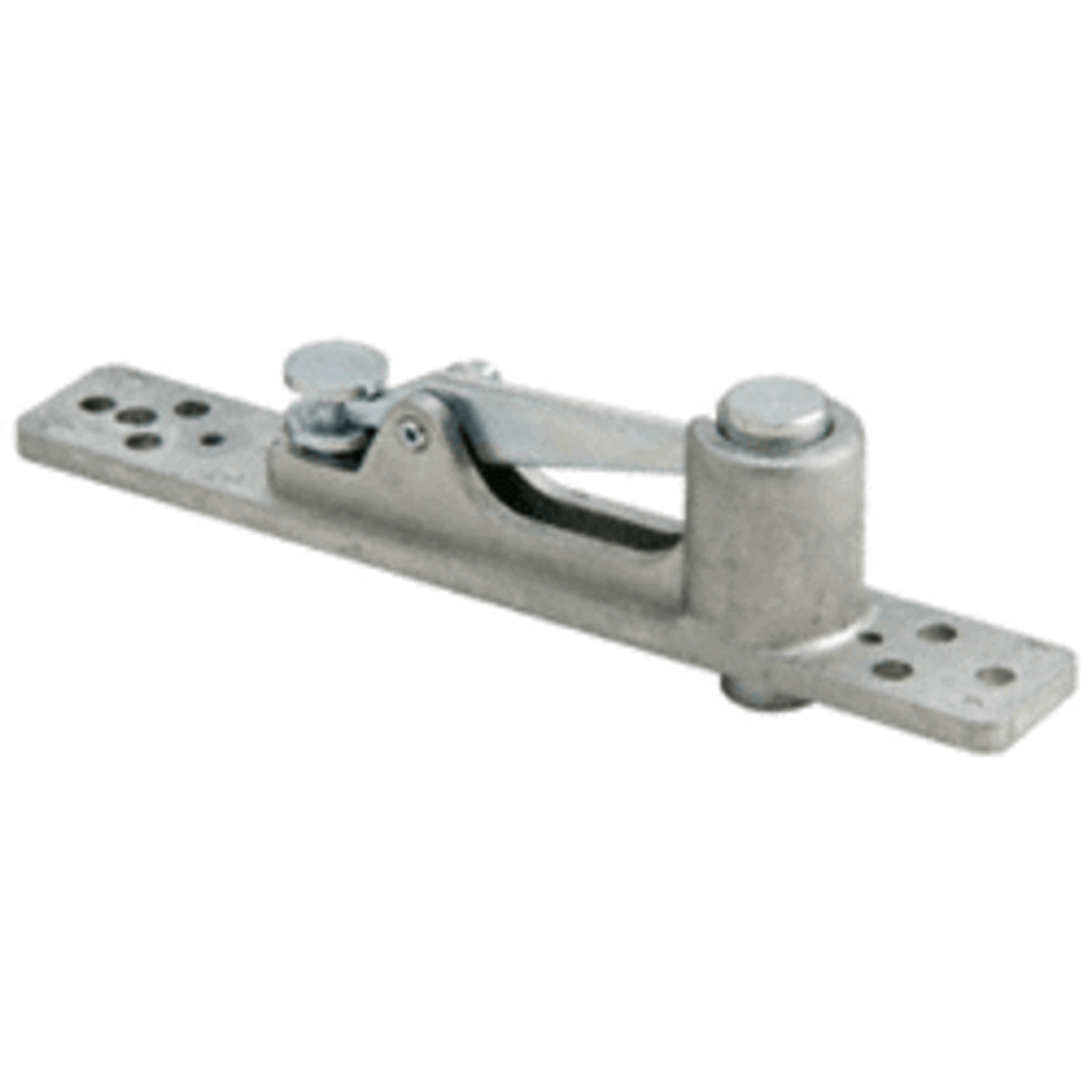

CRL 8062TP Dormakaba 15mm Walking Beam Top Pivot is expertly designed for center-hung applications, particularly when used with a concealed floor-mounted door closer or floor-mounted pivot. This walking beam top pivot allows for convenient adjustment in door clearance and facilitates door removal by simply raising or lowering the pivot pin. Compatible with CRL Wedge-Lock® Door Rail Systems or any center-hung setup with top door rails having a depth of 1" (25 mm), it accommodates a pivot pin diameter of 15 mm (19/32"). The adjustable pin provides an impressive clearance of up to 3/4", ensuring flexibility for various installation needs. This model fits standard aluminum, hollow metal, or wood headers, making it a versatile choice for diverse applications. The CRL 8062TP is non-handed, allowing for easy integration into your project without concern for left or right configurations. For complete installations, consider the top door portion (Cat. No. 8062DA) and finished cover options (Cat. No. 8062COVAL or 8062COVDU). With no shipping limitations, this durable pivot is a reliable solution for enhancing door functionality in both commercial and residential settings.
Dormakaba 15mm Walking Beam Top Pivot
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Adjustable Spindle Length: 5/8
Bottom Door Rail Depth: 1
Brand: Dormakaba
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Handing: Non Handed
Pin Diameter: 19/32
Pivot Top: Yes
Pivot Type: Center Hung
Recommended Door Type: Aluminum, Wood, Hollow Metal
Shipping Limitations: None
