CRL 8160GE Medium Duty 90 Hold Open Concealed Closer with GE Side-Load HardwareC.R. Laurence 8160GE Medium Duty 90 Hold Open Overhead Concealed Closer with "GE" Side-Load Hardware Package delivers reliable performance for doors with a top rail depth of 1/2" (12.7 mm). This system includes a medium spring size door closer, mounting clips, and an adjustable side-load bottom pivot set, ensuring a robust and versatile installation. Designed for ease of use, the closer features independent adjustment valves that allow you to control both the closing and latching speeds separately, providing customizable operation. It supports a maximum door weight of 200 lbs, making it suitable for aluminum and hollow metal doors. The unit also allows for 90° hold-open functionality, enhancing accessibility in high-traffic areas. Constructed from durable aluminum and UL Listed for safety, the CRL 8160GE is built to last. The included special retaining rings prevent adjustment valve screws from being fully removed, ensuring long-term reliability. For optimal performance, an auxiliary floor or overhead door stop is recommended to prevent damage from over-extension. With a 5-year limited warranty, the C.R. Laurence 8160GE is a dependable choice for professionals seeking quality and efficiency in overhead door solutions.
Medium Duty 90 Hold Open Overhead Concealed Closer with "GE" Side-Load Hardware Package
- For Doors with 1/2" (12.7 mm) Top Rail Depth
- Adjustable Side-Load Bottom Pivot Set for Threshold Mounting
- Includes All Necessary Parts
- 5 Year Limited Warranty
- UL Listed
These

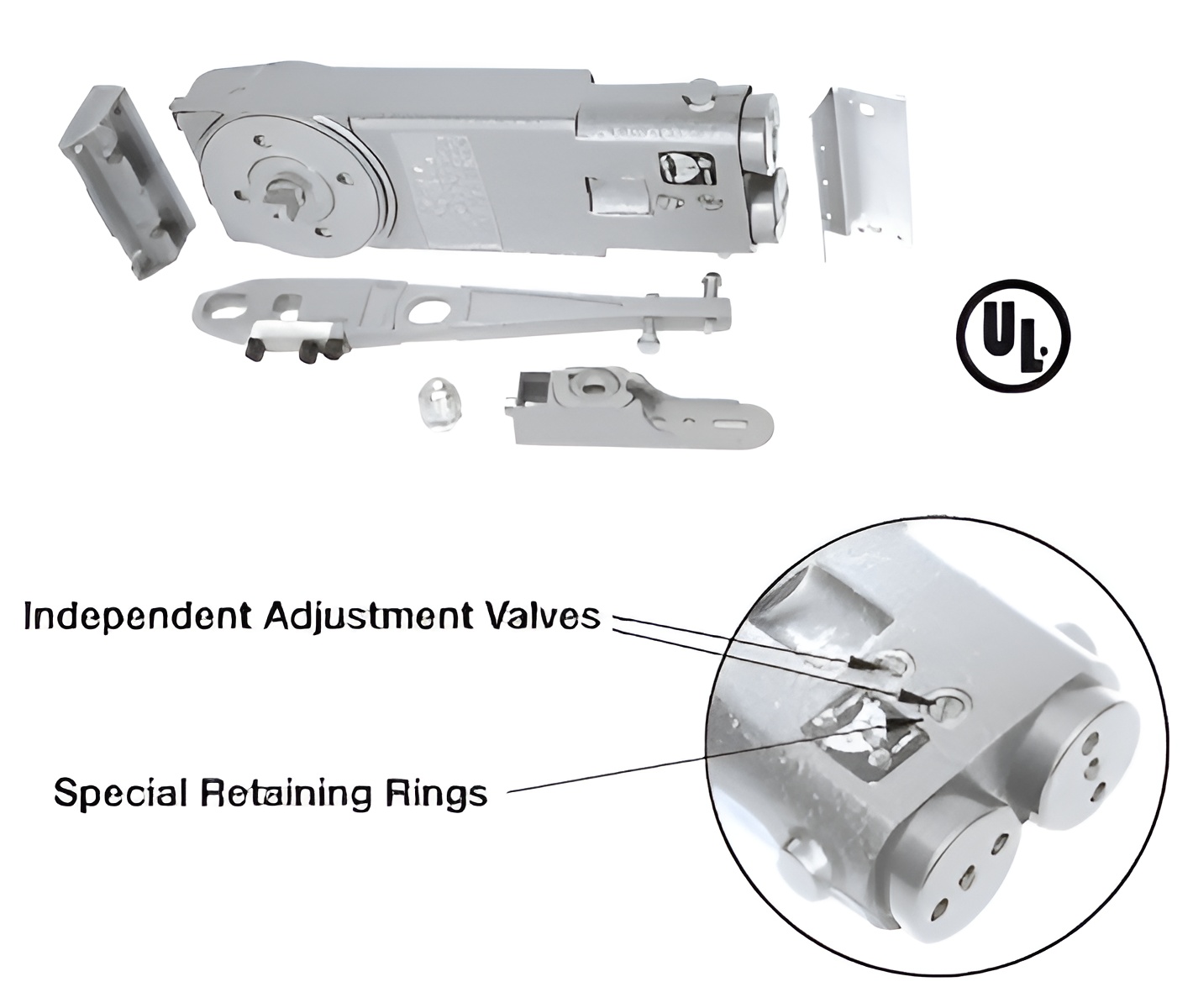

CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type "S" Side-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set or "GE" Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90 and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
Product Warning:
This Closer is not to be used for doors weighing in excess of 200 Lbs.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Bottom Door Rail Depth: 1-1/2
Bottom Pivot Type: Threshold Mount Pivot
Case Quantity: 6
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Handing: Double Acting
Hold Open: 90°
Includes: CRL7160, CRL8010FS, CRL8010S, CRL8010GE
Material: Aluminum
Maximum Door Weight: 200
Package Type: Side Load GE
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Shipping Limitations: None
Similar: CRL8760S
Spindle: 1/2
Spring Size: Medium
Top Rail Depth: 1/2
Type: Center Hung
UL Listed: Yes
