CRL 8972A 105 No Hold Open Concealed Closer Package for End-Load A.D.A. Installation

CRL 8972A 105 No Hold Open Concealed Closer Package for End-Load A.D.A. Installation

C.R. Laurence 8972A 105 No Hold Open Overhead Concealed Closer Package for End-Load Installation A.D.A. "A" Package offers a robust solution for maintaining door functionality while adhering to accessibility standards. Designed specifically for center-hung doors with a 1" deep top rail, this package includes a medium spring size door closer, mounting clips, a Type "A" end-load arm, and an adjustable dual-purpose bottom pivot set. The pivot set accommodates both floor and threshold mounting, enhancing installation flexibility. Equipped with independent adjustment valves, this closer allows precise control over closing and latching speeds, ensuring reliable performance. The unit is U.L. listed and backed by a five-year limited warranty, underscoring its durability and quality. It is ideally suited for aluminum or hollow metal doors and supports a maximum door weight of 200 lbs. The closer's design focuses on ease of use, complying with A.D.A. specified opening forces while providing a dependable closing mechanism. Note that while this closer meets accessibility requirements, site conditions and door size may affect its performance. For optimal results, an auxiliary floor or overhead stop is recommended to prevent over-extension damage. Choose the C.R. Laurence 8972A for a seamless blend of functionality and compliance in your architectural projects.

105 No Hold Open Overhead Concealed Closer Package for End-Load Installation A.D.A. "A" Package

• A Center-Hung End-Load Hardware Package for Doors with 1" Deep Top Rails
• For Doors with 1" (25 mm) Top Rail Depth
• Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
• U.L. Listed with a Five Year Limited Warranty

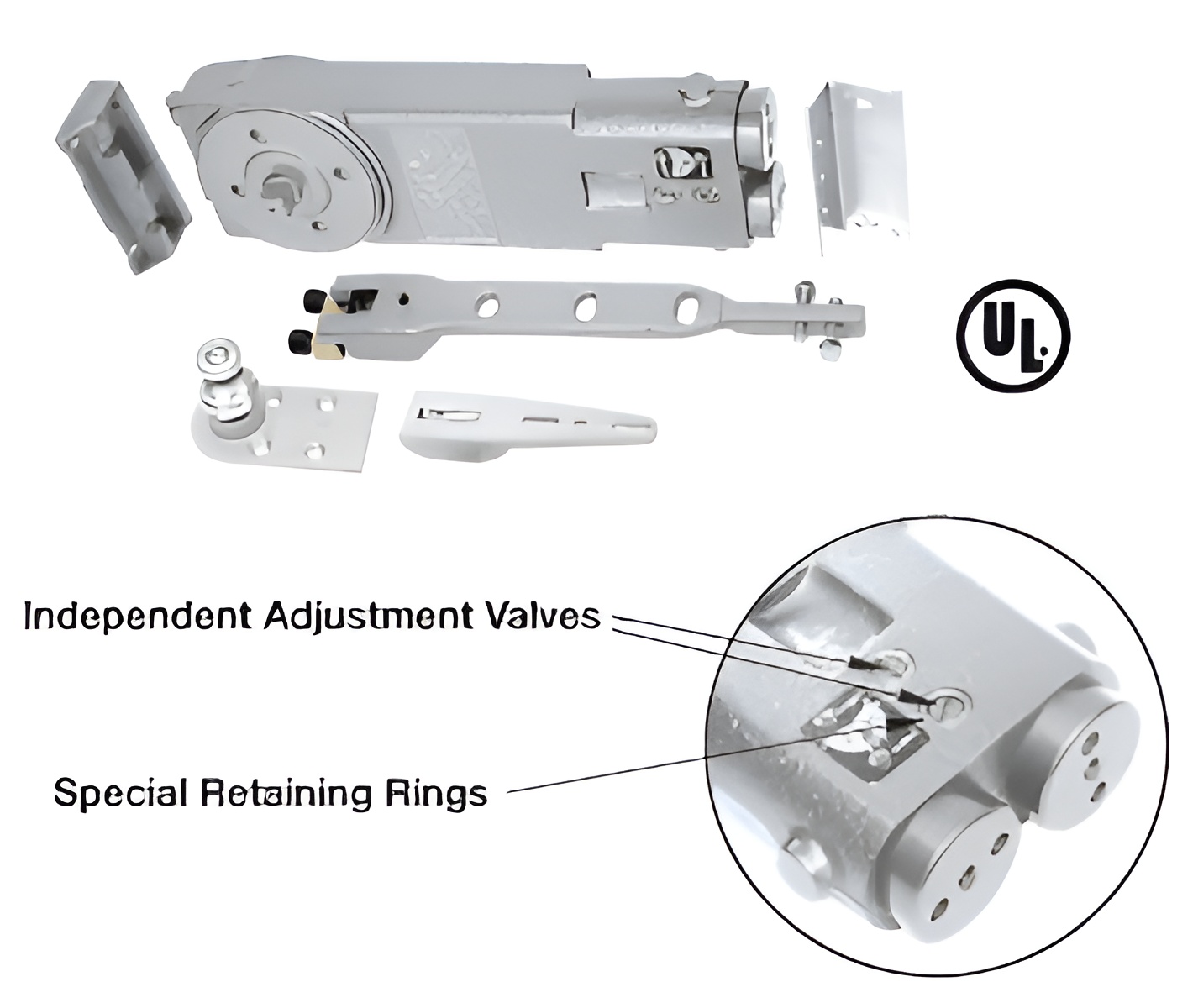

These CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type "A" End-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90 and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.


Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.

NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This Closer is not to be used for doors weighing in excess of 200 Lbs. (91 Kg) or wider than 36" (914 mm).

Resources

• Door Closer Warranty
• How to Order Overhead Concealed Closers.pdf
• Specifications Closer2.pdf
